I got the Nano working with an ESP8266 on an ESP01 adapter but, didn't
have enough RAM left, so I tried a ESP32 NodeMCU.
NTP is atomic, but "Atomic Clock" is already taken.
BTW, I measured the 5V current drawn by the first prototype at 153Ma.
I wanted to build a clock that used WiFi to get NTP packets. The problem with doing this is, you have to tell the clock the WiFi SSID and password.
Several thoughts came to mind:
|
|

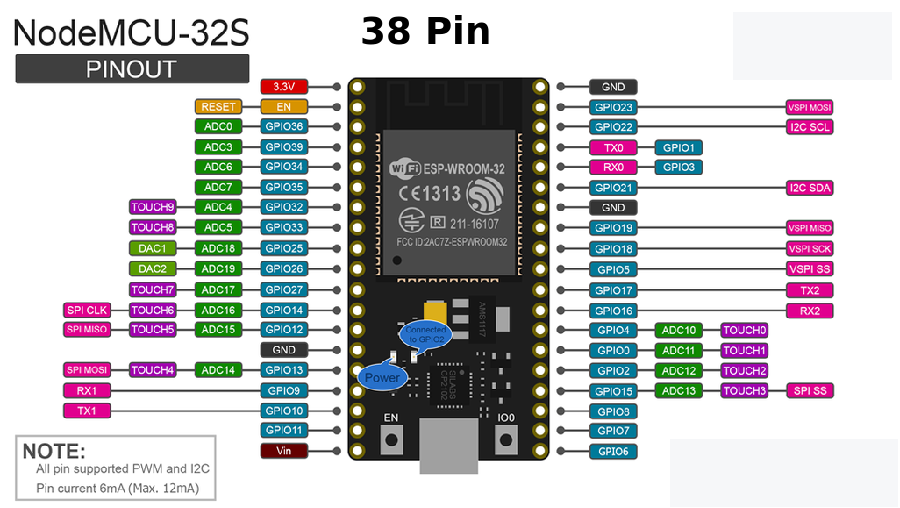

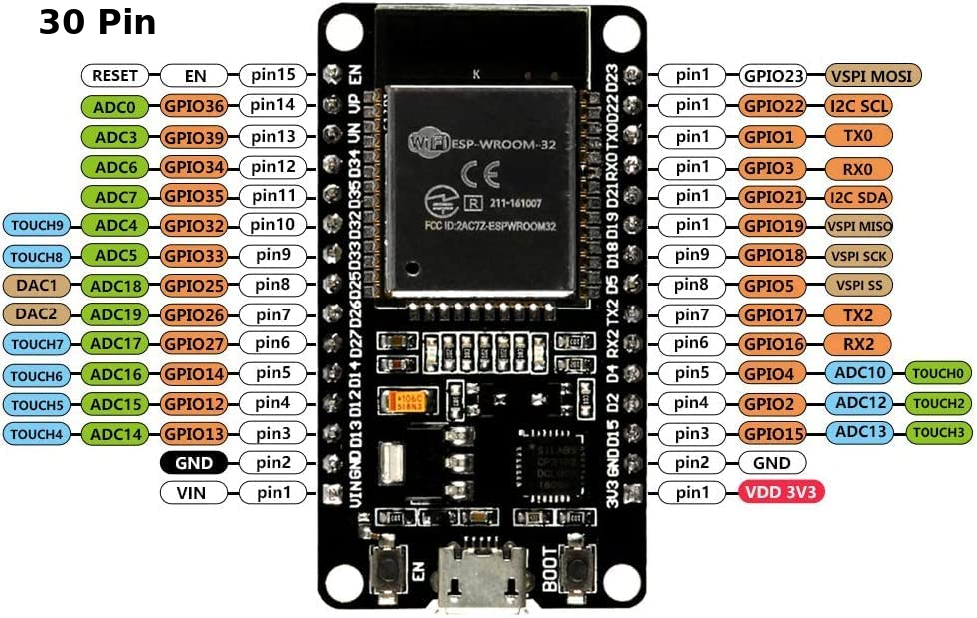

| ESP32NodeMCU 30 Pin pinout | ESP32NodeMCU 38 Pin pinout |
|
|

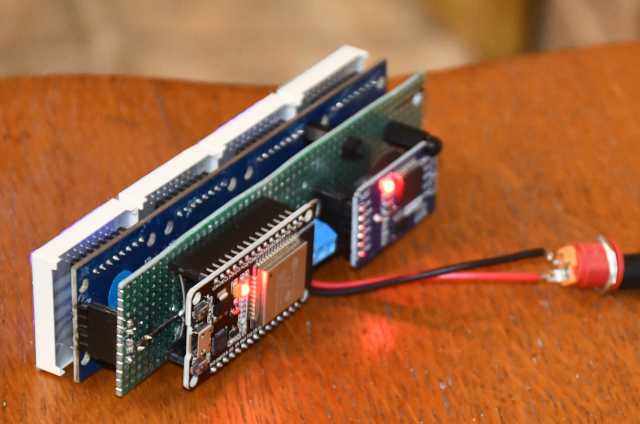

The prototype clock in the den.
We put a couple of the clocks (different colors) in the Den to see how visible etc. they were while we were watching TV.

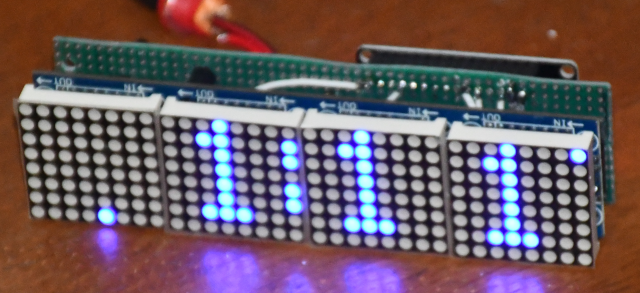

Note the PM dot at the upper right corner and the seconds dot (blinking) in the bottom row. There are 32 dots in the bottom row, I use the first 30 dots to indicate the second. Each dot represents 2 seconds, the led is on for 1 sec. and off for 1 sec. on each dot. |

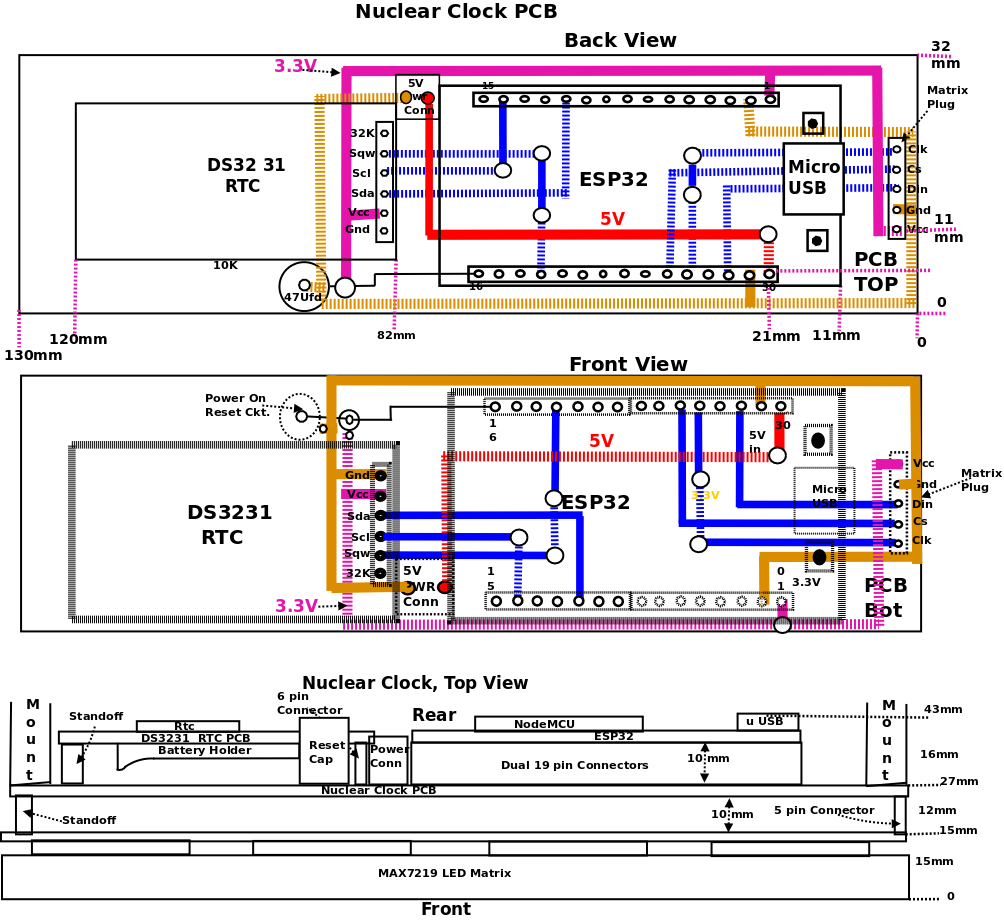

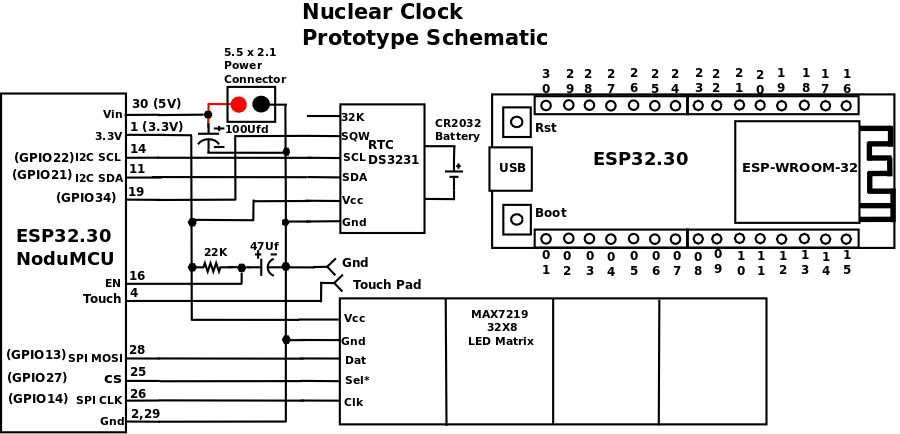

| RTC->SCL | -> | ESP2->SCL i.e. Pin D22 (I2C) |
| RTC->SDA | -> | ESP2->SDA i.e. Pin D21 |
| RTC->Vcc | -> | ESP2->Vcc -> 3.3 V |
| MAX7219 (LedMtx) | ||
| MTX->DAT | -> | ESP32->MOSI ->13 |
| MTX->CLK | -> | ESP32->SPI CLK->14 |
| MTX->CS | -> | ESP32->27 |
| MTX->Vcc | -> | 5V |
|

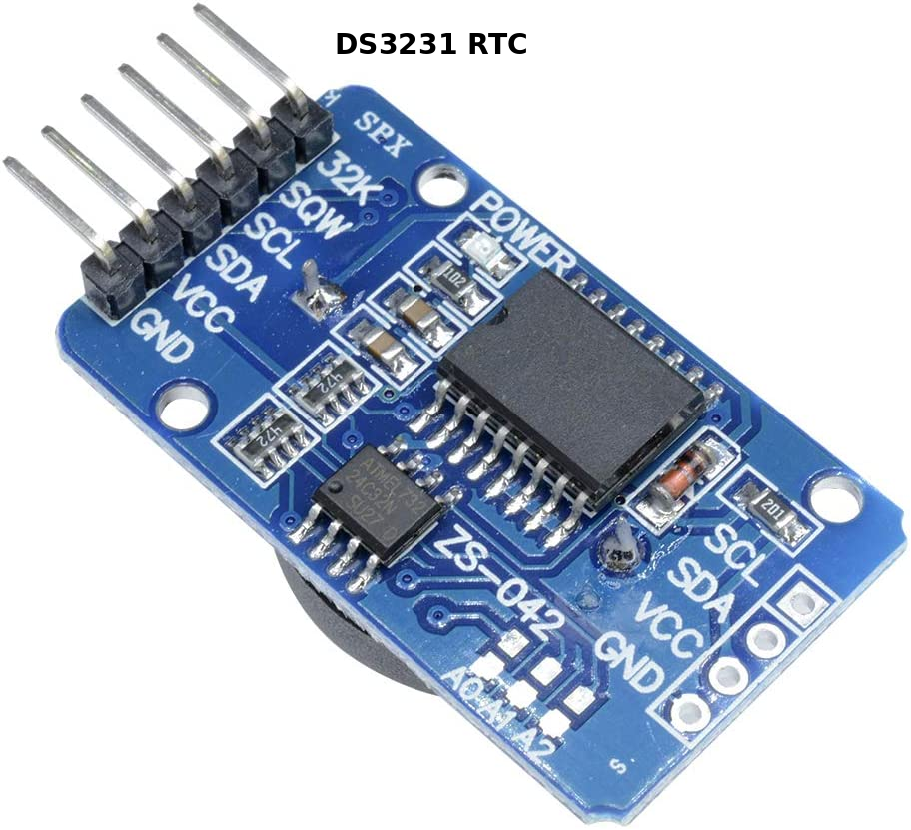

DS3231 RTC pinout.
DS3231 has and I2C interface, CLK goes to ESP32->22 DAT goes to ESP32->21 The DS3231 also has an on-board 24C32 Non-Volatile RAM. Cllck for larger PIC. |
|
Led Matrix

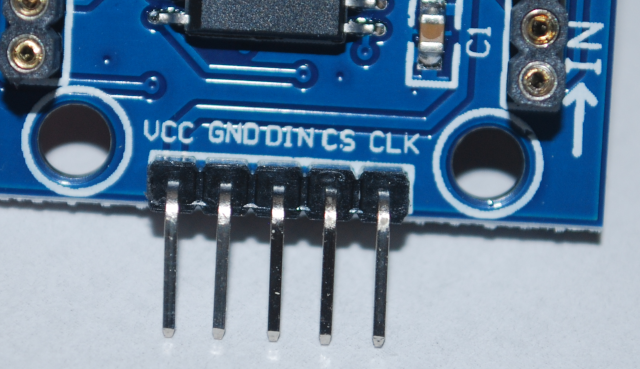

MAX7219 Led Matrix conectors. MAX7219 has an SPI interface: DIN -> ESP32->13 CLK -> Esp32->14 CS -> ESP32->27 Cllck for larger PIC. |
|
Time test lash-up.

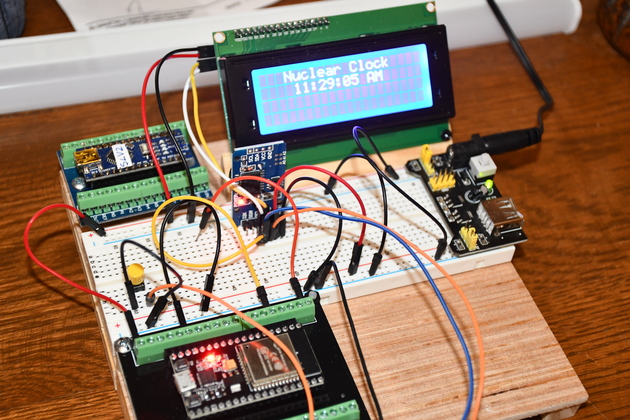

You can see the ESP32NodeMCU (lower left), temporary display 2004 (upper right), and the DS3231 RTC top center of bread board.

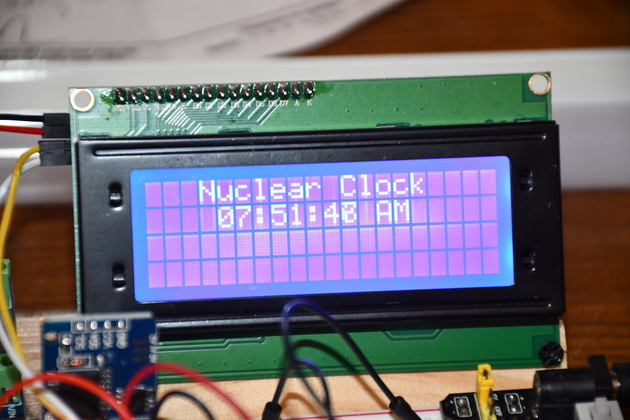

The ESP32NodeMCU is getting the time from our NTP server, storing it into the RDC, retrieving it and finally displaying it on the 2004 LCD.
The Nano at the upper left isn't used, it just happened to be on the test board. The Time Code sketch |
| Closer look at the Time Test display. |
|

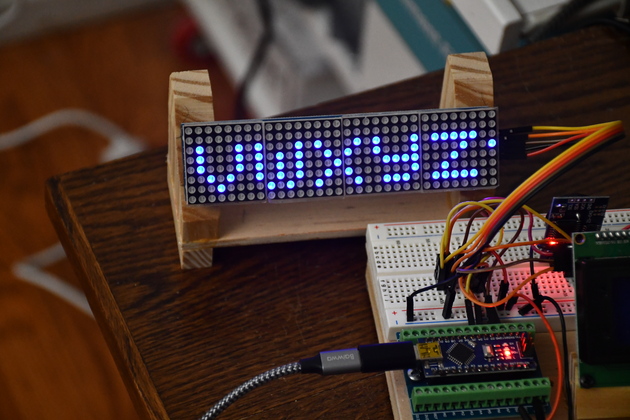

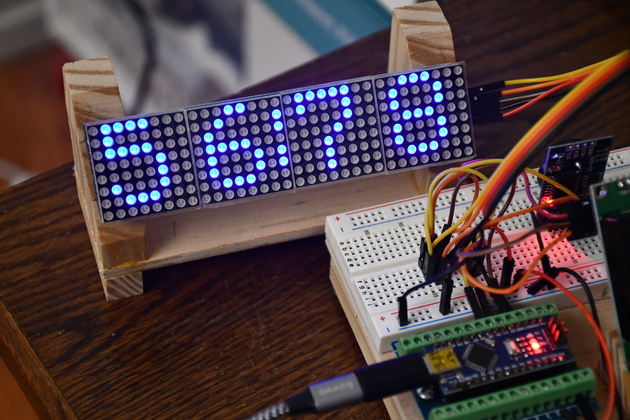

The number test, all ascii chars scrolling.
This is a test of the Led Matrix driving code.

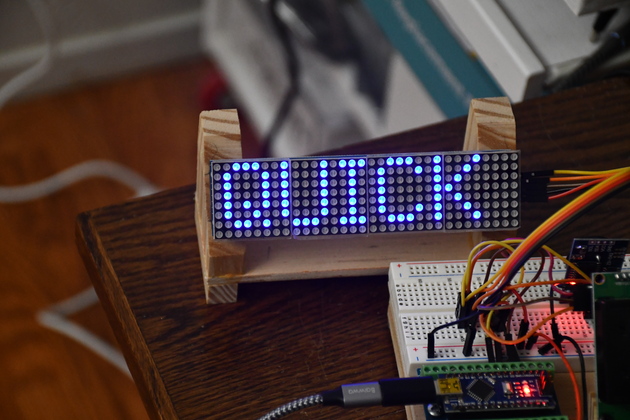

I started out with this scrolling "The quick brown fox jumped over the lazy dog" in both upper and lower case.
The program also scrolls all 128 ASCII characters.
The Sketch |
| This is on the lowest intensity setting. Note the colon in the center is also present. |
| Some of the lower case characters. |

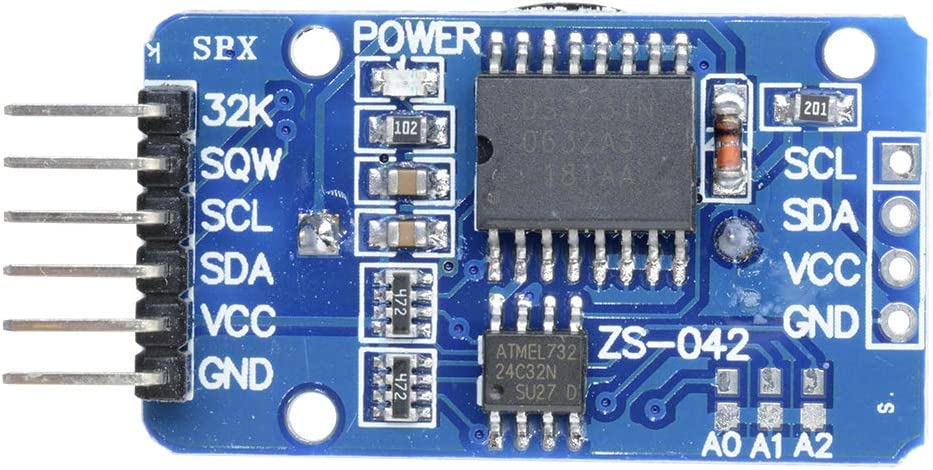

| The RTC (DS3231). The larger chip (top) is the DS3231, the smaller chip (lower) is the 24C32 EEPROM. |

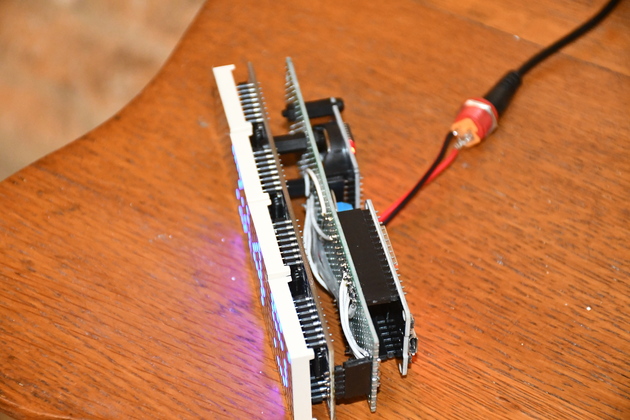

Note that the three adapter boards all have their pins 90° and will have to have them replaced with straight pins in order to mount them.
/*H********************************************************************
* Matrix clock with scrolling data.
* Mtx-2 = DAT, Mtx-3 = CS, Mtx-4 = CLK
**********************************************************************/
#include <LedControl.h>
#include "ChrCodes.h"
//************************* DEFINES ************************************
#define MTX_DAT 2
#define MTX_CLK 4
#define MTX_CS 3
#define BAUD 9600
typedef unsigned long ulong;
//************************* PROTOTYPES ************************************
void msg( char *msgStr );
void scrollFont();
void ldBuff( int chr );
void rotBuff();
void pntBuff( );
//************************* VARIABLES ************************************
const int NbrDevs = 4; // NUMBER OF MAX7219s USED
const long ScrlDly = 75; // ADJUST SCROLLING SPEED
ulong Buff[14] = {0};
// DAT, CLK CS, NbrDevs
LedControl Mtx = LedControl( MTX_DAT, MTX_CLK, MTX_CS, NbrDevs );
const char ScrlTxt[] = {
" THE QUICK BROWN FOX JUMPED OVER THE LAZY DOG 1234567890"
" the quick brown fox jumped over the lazy dog " };
/*F********************************************************************
*
**********************************************************************/
void
setup( )
{
Serial.begin( BAUD );
for( int x =0; x < NbrDevs; x++ )
{
Mtx.shutdown( x, false );// MAX72XX IS IN POWER-SAVING MODE ON STARTUP
Mtx.setIntensity( x, 0 ); // SET BRIGHTNESS TO DEFAULT VALUE
Mtx.clearDisplay( x ); // AND CLEAR DISPLAY
}
Serial.println( "startup end" );
}
/*F********************************************************************
*
**********************************************************************/
void
loop( )
{
Serial.println("Loop bgn");
msg( ScrlTxt );
Serial.println( "loop past scroll Msg" );
scrollFont();
}
/*F********************************************************************
* DISPLAYS ENTIRE ChrCodes ARRAY
**********************************************************************/
void
scrollFont()
{
int ndx;
for( ndx = 0x20; ndx < 0x80; ndx++ )
{
ldBuff( ndx );
delay( 33 ); // WAS 500
}
}
/*F********************************************************************
* Scroll Message
**********************************************************************/
void
msg( char *msgStr )
{
int cnt = 0, chr =0;
for( cnt =0; (chr = ScrlTxt[cnt]) != 0; cnt++ )
ldBuff( chr ); // READ BACK A CHAR
}
/*F********************************************************************
* Load character into scroll buffer, ALL THE SHUCKING AND JIVING HAPPENS HERE
**********************************************************************/
void
ldBuff( int chr )
{
int ndx;
byte cnt1, cnt2, cnt3, kcnt;
ulong var1, var2;
if( chr >= 0x20 && chr <= 0x7f )
{
for( cnt1 =0; cnt1 < 7; cnt1++ )
{ // LOOP 7 TIMES FOR 5X7 FONT
// NDX INTO CHAR TBL GET ROW DAT
var1 = Font5x7[((chr -0x20) *8 ) +cnt1];
var2 = Buff[cnt1 *2]; // LOAD CURR SCROLL BUFFER
var2 = var2 | var1; // OR NEW CHARACTER ONTO END OF CURRENT
Buff[cnt1 *2] = var2; // STORE IN BUFFER
}
kcnt = Font5x7[((chr -0x20 ) *8 ) +7];
for( cnt3 =0; cnt3 < kcnt; cnt3++ ) // ACTUAL SCROLL CODE
{
rotBuff();
pntBuff();
delay( ScrlDly );
}
}
}
/*F********************************************************************
* Rotate buffer
**********************************************************************/
void
rotBuff( )
{
int cnt;
ulong var;
byte bit;
for( cnt =0; cnt < 7; cnt++ )
{ // LOOP 7 TIMES FOR A 5X7 FONT
var = Buff[cnt *2]; // GET LOW BUFFER ENTRY
bit = bitRead( var, 31 ); // CPY HI BIT GETS LOST IN ROTATION
var = var << 1; // ROTATE LEFT ONE BIT
Buff[cnt *2] = var; // STORE NEW LOW BUFFER
var = Buff[cnt *2 +1]; // GET HIGH BUFFER ENTRY
var = var << 1; // ROTATE LEFT ONE BIT
bitWrite( var, 0, bit ); // STORE SAVED BIT
Buff[cnt *2 +1] = var; // STORE NEW HIGH BUFFER
}
}
/*F********************************************************************
* DISPLAY BUFFER ON LED MATRIX
**********************************************************************/
void
pntBuff( )
{
int ndx;
byte byt;
ulong var;
for( ndx =0; ndx < 7; ndx++ )
{ // LOOP 7 TIMES FOR A 5X7 FONT
var = Buff[ndx *2 +1]; // GET HIGH BUFFER ENTRY
byt = var; // MASK OFF FIRST CHARACTER
Mtx.setRow( 3, ndx, byt ); // SEND ROW TO RELEVENT MAX7219 CHIP
var = Buff[ndx *2]; // GET LOW BUFFER ENTRY
byt = ( var >> 24 ); // MASK OFF SECOND CHARACTER
Mtx.setRow( 2, ndx, byt ); // SEND ROW TO RELEVENT MAX7219 CHIP
byt = ( var >> 16 ); // MASK OFF THIRD CHARACTER
Mtx.setRow( 1, ndx, byt ); // SEND ROW TO RELEVENT MAX7219 CHIP
byt = ( var >> 8 ); // MASK OFF FORTH CHARACTER
Mtx.setRow( 0, ndx, byt ); // SEND ROW TO RELEVENT MAX7219 CHIP
}
}
#ifdef BARF
bitWrite( x, n, b )
Parameters
x: the numeric variable to write into
n: bit of var to write, 0 == LSB (rightmost) bit.
b: value to write to var bit (0 or 1).
byte X = 0b10000000; // BEFORE
bitWrite( X, 0, 1 ); // WRITE '1' TO LSB OF VAR X
byte X = 0b10000001; // AFTER
bitWrite( X, 0, 1 );
#endif
/*H********************************************************************
* Matrix clock test
* Mtx-2 = DAT, Mtx-3 = CS, Mtx-4 = CLK
**********************************************************************/
#include <LedControl.h>
//************************* DEFINES ************************************
#define MTX_DAT 2
#define MTX_CLK 4
#define MTX_CS 3
#define HR10 3
#define HR1 2
#define MIN10 1
#define MIN1 0
#define BAUD 9600
typedef unsigned long ulong;
//************************* PROTOTYPES ************************************
void putChr( byte mtxNbr, byte *dat );
void colon( bool on );
//************************* VARIABLES ************************************
const int NbrDevs = 4; // NUMBER OF MAX7219s USED
const long ScrlDly = 75; // ADJUST SCROLLING SPEED
byte State =0, Tggl =0;
ulong NewNbrs, ColonBlink;
// DAT, CLK CS, NbrDevs
LedControl Mtx = LedControl( MTX_DAT, MTX_CLK, MTX_CS, NbrDevs );
byte Nbrs[11][8] = {
{ 0x38,0x44,0x4C,0x54,0x64,0x44,0x38}, // '0'
{ 0x10,0x30,0x10,0x10,0x10,0x10,0x38}, // '1'
{ 0x38,0x44,0x04,0x08,0x10,0x20,0x7C}, // '2'
{ 0x7C,0x08,0x10,0x08,0x04,0x44,0x38}, // '3'
{ 0x08,0x18,0x28,0x48,0x7C,0x08,0x08}, // '4'
{ 0x78,0x40,0x78,0x04,0x04,0x44,0x38}, // '5'
{ 0x18,0x20,0x40,0x78,0x44,0x44,0x38}, // '6'
{ 0x7C,0x44,0x04,0x08,0x10,0x10,0x10}, // '7'
{ 0x38,0x44,0x44,0x38,0x44,0x44,0x38}, // '8'
{ 0x38,0x44,0x44,0x3C,0x04,0x08,0x30} // '9'
{ 0x00,0x00,0x00,0x3000x00,0x00,0x300 // BLANK
};
byte Colon[8] = { 0x00,0xC0,0xC0,0x00,0xC0,0xC0,0x00 };
/*F********************************************************************
*
**********************************************************************/
void
setup( )
{
Serial.begin( BAUD );
for( int x =0; x < NbrDevs; x++ )
{
Mtx.shutdown( x, false );// MAX72XX IS IN POWER-SAVING MODE ON STARTUP
Mtx.setIntensity( x, 0 ); // SET BRIGHTNESS TO DEFAULT VALUE
Mtx.clearDisplay( x ); // AND CLEAR DISPLAY
}
NewNbrs = millis() + 1000; // SET MATTRIX UPDATE TIME
ColonBlink = millis() +500; // SET COLON BLINK TIME
}
/*F********************************************************************
*
**********************************************************************/
void
loop( )
{
int ndx;
delay( 500 );
if( millis() > NewNbrs )
{
for( ndx =0; ndx < 4; ndx++ )
Mtx.clearDisplay( ndx ); // AND CLEAR DISPLAY
switch( State )
{
case 0:
putChr( HR10, Nbrs[1] ); // '1'
putChr( HR1, Nbrs[2] ); // '2'
putChr( MIN10, Nbrs[3] ); // '3'
putChr( MIN1, Nbrs[4] ); // '4'
State++;
break;
case 1:
putChr( HR10, Nbrs[5] ); // '5'
putChr( HR1, Nbrs[6] ); // '6'
putChr( MIN10, Nbrs[7] ); // '7'
putChr( MIN1, Nbrs[8] ); // '8'
State++;
break;
case 2:
putChr( MIN10, Nbrs[9] ); // '9'
putChr( MIN1, Nbrs[0] ); // '0'
State = 0;
break;
}
NewNbrs = millis() + 1000; // SET DISPLAY UPDATE TIME
}
if( (ColonBlink < millis()) && (Tggl ^= 1) )
{
colon( true );
ColonBlink = millis() + 500; // SET COLON BLINK TIME
}
delay( 2000 );
}
/*F********************************************************************
* USE inbound byte as address, GET 7 bytes from mFont5x7[], ouput each
to a row in one of 4 matrices.
**********************************************************************/
void
putChr( byte mtxNbr, byte dat[] )
{
byte ndx, byt;
for( ndx =0; ndx < 7; ndx++ ) // SCAN CHR'S 7 ROWS OF 7 BYTES Vs ROW#
{
byt = dat[ndx]; // GET ASCII NUMERIC VALUE
Mtx.setRow( mtxNbr, ndx, byt );
}
}
/*F********************************************************************
* PUT COLON IN ROW 7 MTX 2
**********************************************************************/
void
colon( bool on )
{
byte col;
if( on )
col = 0X6C;
else
col =0;
Mtx.setColumn( 2, 7, col );
}
|
