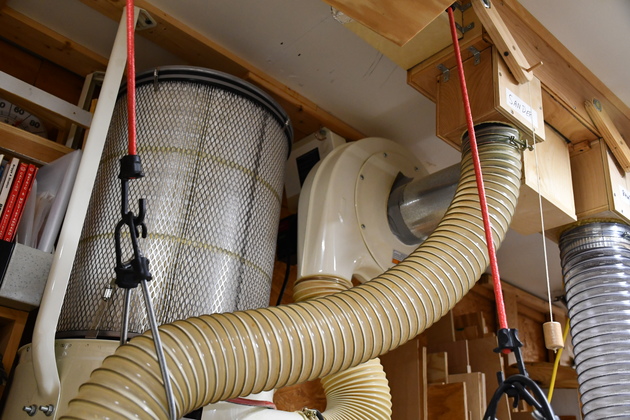

Old DC-1100 separator, bag, and Wynn filter, beside the blower. Note the "dust hill" in the center of the bag, that means I have good air flow. I'll probably replace the bag with a small transparent collection box.
These are pics of the Jet DC-1100 after I moved it to the ceiling and with a 6" Plenum on the ceiling and numerous updraft valves. I have subesequently replaced the Jet seperator with a 6" cyclone and built a shelf for the Wynne filter.
|
|
Old DC-1100 separator, bag, and Wynn filter, beside the blower. Note the "dust hill" in the center of the bag, that means I have good air flow. I'll probably replace the bag with a small transparent collection box. |
|

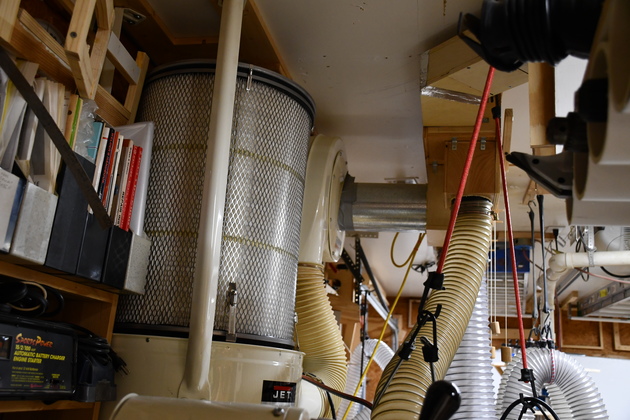

Jet DC-1100 blower and filter (now a Wyenn Environmental Filter) In the new plan I'll move the filter to the right of the blower, put the new cyclone where the filter is now, and rotate the blower so it's output is toward the new cyclone. This will probable mean I have to lower the blower several inches to clear the 6" hose from the plenum to the inlet of the new cyclone. |
|

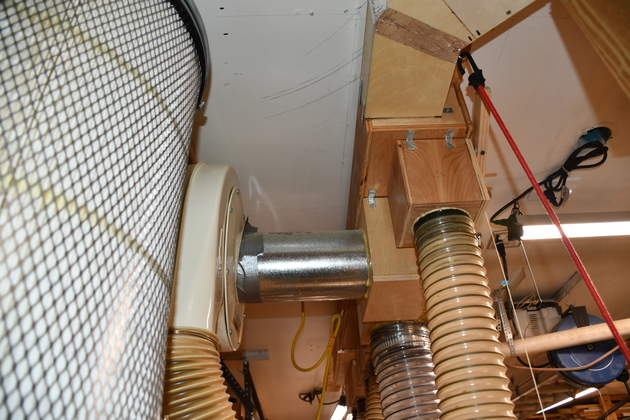

Closer look at the blower to plenum connection (6" duct). |
|
Looking down the back of the main plenum. |
|

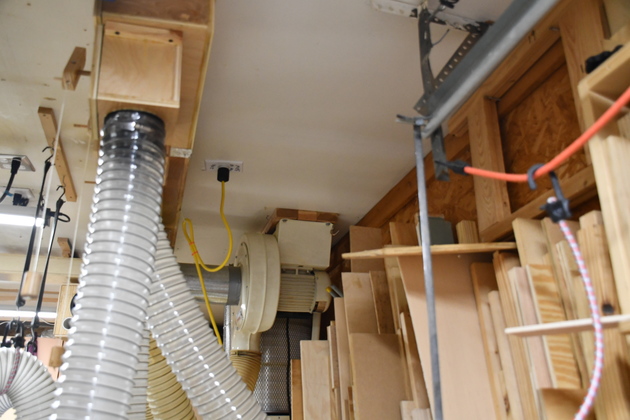

Other end of the main plenum. Look at all that lovely empty space on the ceiling! |
