How to Install Concealed Hinges
April 17, 2023 by Shara, Woodshop Diaries
In this post, I’m sharing how to install concealed hinges to hang cabinet doors
or add hinged elements to your projects!
DIY Display Cabinet
Doors and drawers are two of the most common elements to add into your cabinets
and furniture projects.
Unfortunately, they’re also two of the most intimidating elements to add. A lot
of people will shy away from tackling a project that involves doors and drawers
because they are not sure how to install them.
But installing doors is SUPER simple, especially when using concealed hinges
(also referred to as European hinges).

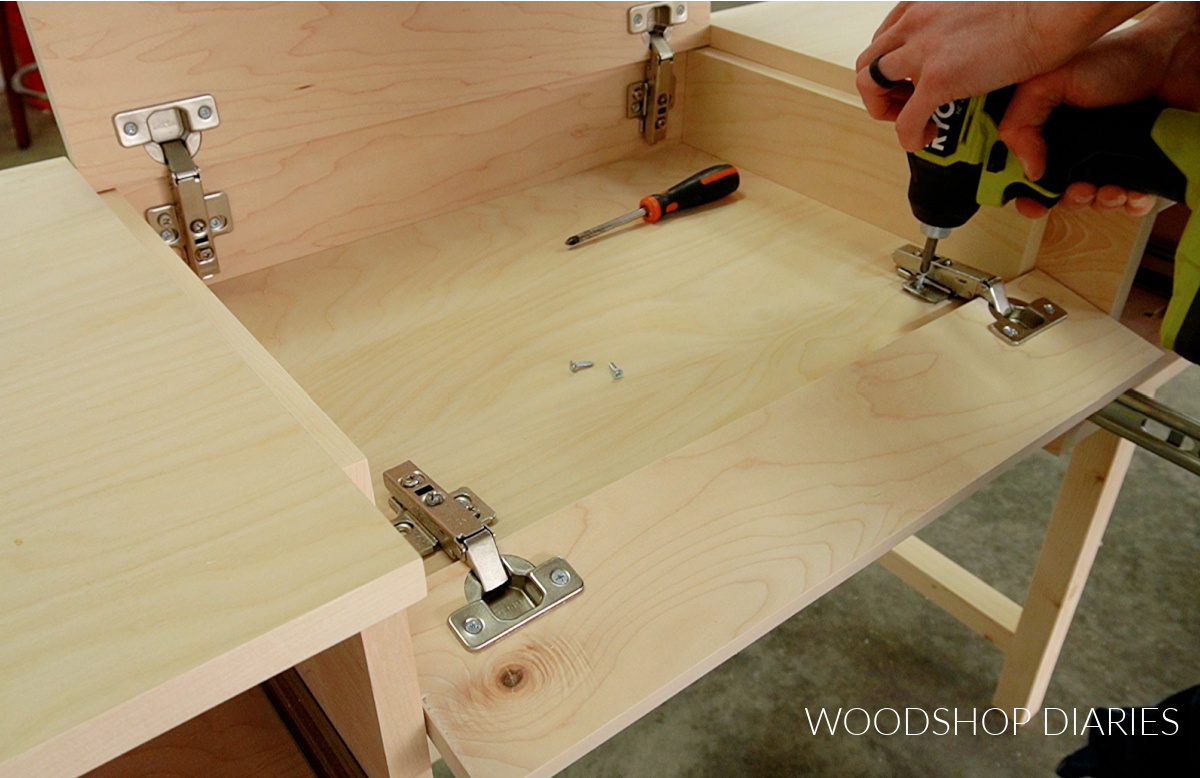

Close up installing concealed hinge onto plywood cabinet door
Concealed hinges are my personal favorite to use for installing doors onto
furniture and cabinets because they are hidden in the finished project, they’re
inexpensive, and they’re easy to adjust for a perfect fit.
If you’re interested in learning how to install concealed hinges for your
project, keep reading 🙂
This post contains affiliate links. See policies page for details.
What Tools Do You Need to Install Concealed
Hinges?
Once the door is assembled–which is a whole other tutorial in itself–you only
need a few basic tools to install the hinges and attach the door to the cabinet.
RELATED: How to build cabinet doors
To install the hinges and the door, you will need:
I use the Kreg Concealed Hinge Jig to easily locate and drill my cup holes to
install the hinges into. The clamp holds the jig in place while drilling.

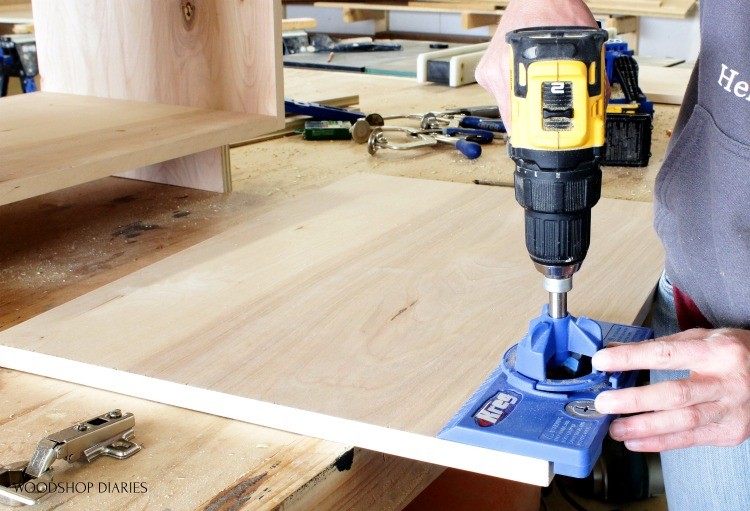

Using Kreg Concealed hinge jig to drill hinge cup holes in plywood door
The drill and/or driver is used to screw the hinge into the door and onto the
cabinet and the screwdriver is used to make adjustments on the hinges.
RELATED: Check out this list of my Top 10 Must Have Tools for Cabinet Building
What to Consider Before Installing
Concealed Hinges
Concealed or European hinges come in a wide variety of options. So before
installing them, you need to ask yourself a few questions.
What type of concealed hinge do you need?
There are different types of doors and cabinets, so it makes sense that there
are different types of hinges to accommodate each application. First, you need
to determine the type of hinge that will fit your specific application.
NOTE:
There are specialty hinges to fit all kinds of odd situations, BUT below are
the most common, basic cases you’ll run into.
First, is your cabinet frameless or does it have a face frame? Concealed hinges
will mount differently for frameless cabinets vs those with a face frame so
it’s important to know which you’ll need.
Second, are you installing inset, partial overlay, or full overlay doors?
RELATED: How to choose the correct cabinet door hinges for your project
I know this sounds obvious, but if you’re installing inset doors on frameless
cabinets, you’ll need to look for hinges that work for inset doors on frameless
cabinets. If you’re installing overlay doors on face frame cabinets, you’ll
need to look for hinges that work for overlay doors on face frame cabinets.
Concealed hinges will specify the type of cabinet (frameless vs face frame) and
the type of door (inset vs overlay) they are designed to work with, so make
sure you double check the specs before purchasing.
Here are links to concealed hinges in different styles:
Take note that with frameless cabinets, the overlay is almost always considered
a “full overlay” and with face frame cabinets, there are several different
options for overlay.
The overlay is how much of the frame is covered by the door, so the hinges come
in varying overlay amounts that you can choose from.
How Thick Should the Door Be?
The general “rule of thumb” with concealed hinges is that the door should be
approximately ¾″ thick.
This works great for basic ¾″ plywood solid panel doors, or shaker style doors
built using 1x material (which is actually ¾″ thick) for the door frame.
However, in special cases, the hinges may allow for thicker doors if needed. If
you’re building thicker doors, be sure to check the hinge specifications to
ensure they will work.
How Far From the Door Edge Should the
Hinge Be Installed?
Different styles, brands, and types of hinges will vary as far as how far from
the edge of the door they should be placed.
The installation instructions included with the hinge should specify this
distance. It will be somewhere between 3-6mm–this is the distance between the
edge of the door and the edge of the cup hole drilled out for the hinge to sit
into.
The concealed hinge jig has little knobs along the bottom that allows you to
easily adjust this setting as needed so that you drill your cup holes the
correct distance every time.

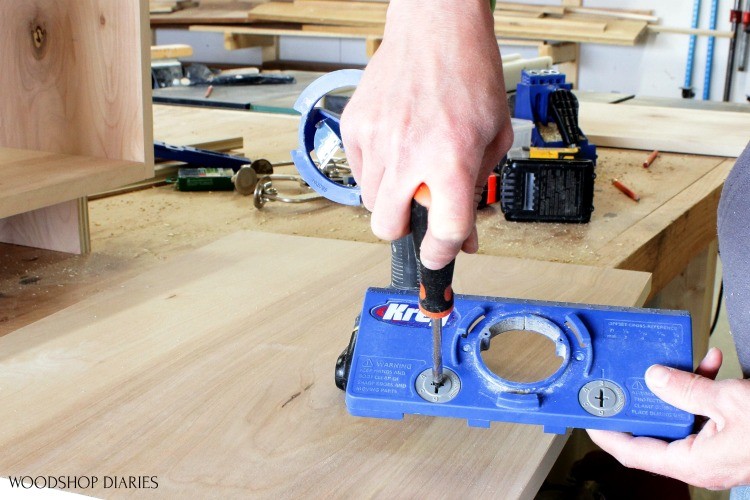

Adjusting spacing blocks on concealed hinge jig using screwdriver
That said, I’m a bit of a rebel and I rarely follow the instructions included
with the hinges. I install 99% of my concealed hinges with my jig set at 5mm.
There is enough adjustment in the hinges (which we will discuss below) that
I’ve found this works well in most cases.
But of course, do as I say and not as I do haha. If the instructions specify
something different, always follow the manufacturer’s instructions for spacing.
Where Should Concealed Hinges Be Placed?
There isn’t really a right or wrong answer for this. Personally, in normal
circumstances for average size cabinet doors, I center my hinge cup holes about
4″ from the top and bottom edges of the door.
My reasoning is simply because that means I can just line the edge of my
concealed hinge jig with the edge of the door.
Installing drill bit onto concealed hinge jig
Or, for smaller doors, I may install them closer to the edge–more like 2″ or so.
This is just so that they are closer to the edge than the middle of the door.
There really isn’t a “rule” here.
There may be special circumstances that require you to space them differently.
In this DIY display cabinet project, I placed the top hinges further down from
the edge so the drawer wouldn’t hit them as it opened.

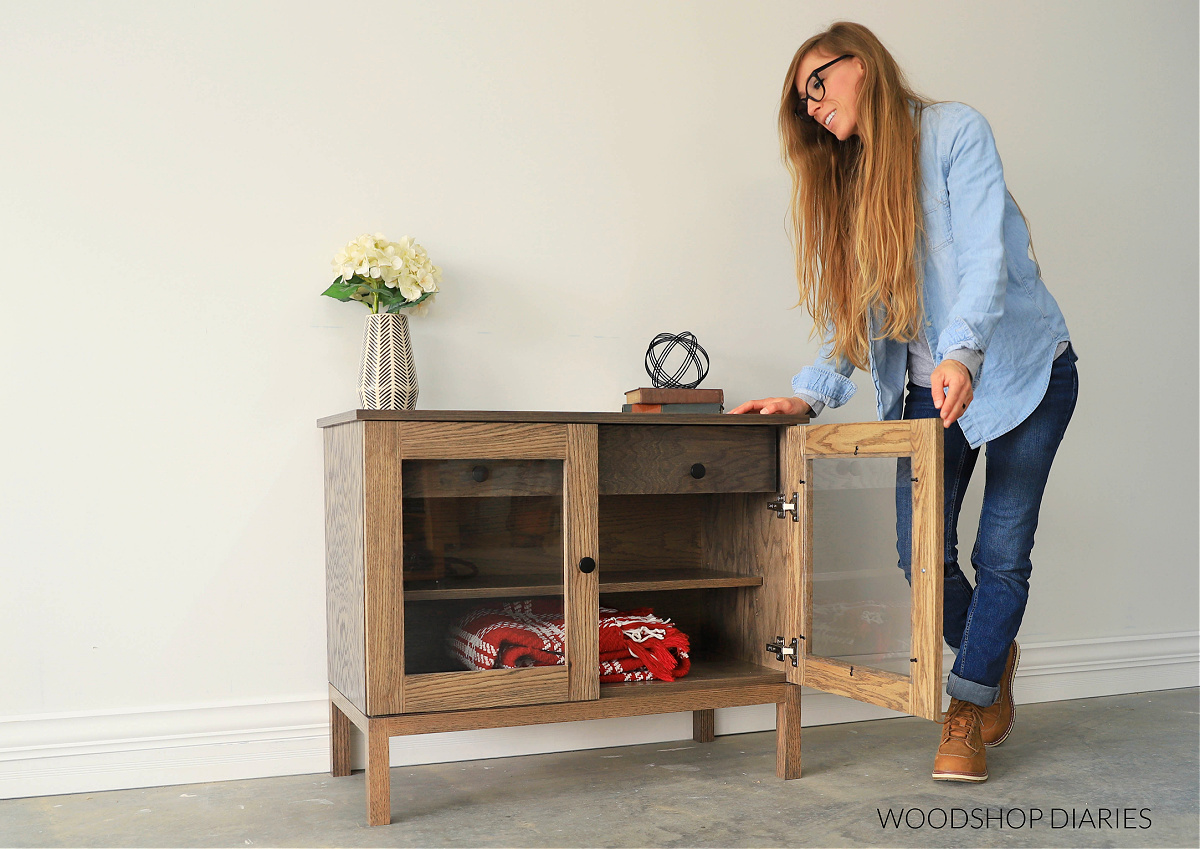

Shara Woodshop Diaries opening cabinet door to reveal concealed hinges inside
Basically, you just want to install one hinge toward the top and one toward the
bottom of the door. Exact placement isn’t critical as long as it doesn’t
interfere with other elements–like drawers, shelves, frames, etc.
In some cases, with large or abnormally heavy doors, more than two hinges may be
required. Refer to manufacturer’s specs for weight limits on the hinges.
If you need to add more than two hinges to your door, try to evenly space them
out along the edge.
Again, exact placement isn’t critical, so if you can’t space them exactly even
(like in the case below because the shelf is in the way), that’s okay. Just get
them close.

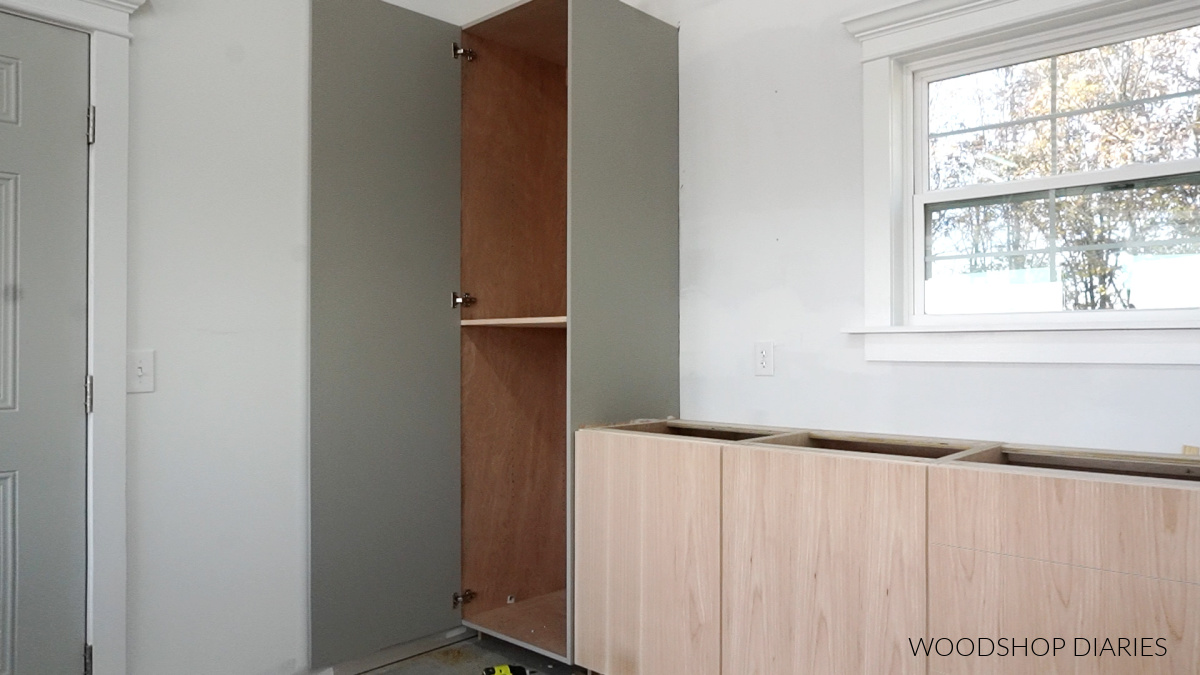

Concealed hinges inside large pantry plywood door in workshop
New vs Existing Cabinet Doors
Since I am typically building furniture and cabinet projects from scratch, most
of my examples I have to share are installing brand new doors on brand new
cabinets.
However, if you are just wanting to replace your hinges (maybe you want to swap
from regular to soft close) or swap out your existing doors, the same process
applies here.
The only difference would be that you may or may not need to drill out your cup
holes for the hinges. If they’re already there, simply skip step 2 below.
How to Install Concealed Hinges & Cabinet Doors
Once your doors are assembled, installing them is the easy part. Below, I’ll
walk you through the simple process to using concealed hinges to install cabinet
doors.
If you’d like more information on building the doors first, check out how to
build cabinet doors here.
If you prefer to watch, I’ve got a (very old) video here. Please don’t judge
too harshly–this video is several years old and my recent videos are much
improved haha.
How to Install Concealed Hinges with Liberty Hardware
- Determine Hinge Type and Locations
First, determine the type/style/number of hinges you need for your application.
See notes earlier in this post.
Then, determine where you need to install them. Again, reference the notes above.
Take note which edge of the door the hinges need to be installed closest to and
which way the door will need to swing open.
- Drill Hinge Cup Holes
Concealed hinges have two main parts–the cabinet mounting plate that attaches to
the cabinet or face frame, and the hinge cup that installs onto the door.
In order to install these hinges onto the door, you will need to drill out a
“cup hole” using a forstner bit on the back side of each door. This is made
easy using a simple concealed hinge jig.
Set the correct spacing using the adjustments on the jig (see notes above
regarding how far from the edge the hinges should be installed). Then, clamp
the jig onto the back side of the door.
Make sure the edge of the door is pushed flat against the spacers and that the
center of the hinge is where you want it. Then, drill out the hole.

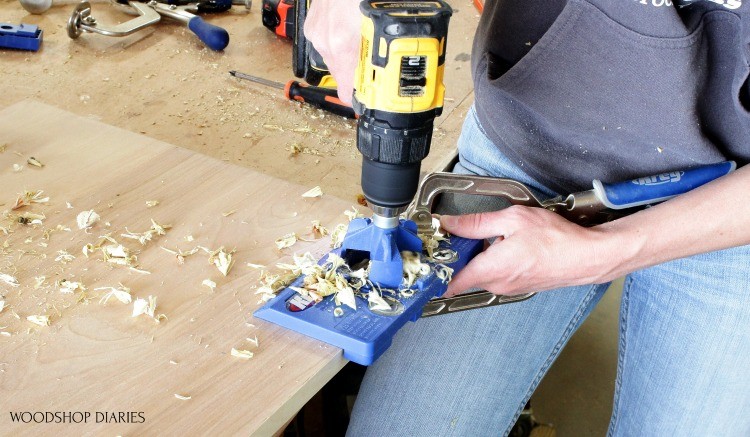

Shara Woodshop Diaries drilling hinge cup holes with a concealed hinge jig
NOTE:
The bit that comes with the jig has a stop collar on it to help prevent you
from drilling the hole too deep. Make sure to drill the hole deep enough that
the hinge cup sits fully into it, but not so deep that you drill completely
through the door.
Repeat for the other hinges, making sure to install them at the locations you
decided on from step 1.
One hole drilled and one being drilled out to install hinge cups on cabinet door
- Install Hinges to Cabinet Door
The jig has holes to drill pilot holes for where the screws will go to install
the hinges as well, but I never use them. Feel free to use them if you’d like.
Once the cup holes are drilled out, place the hinges into the holes so that the
mounting plate hangs off the edge.

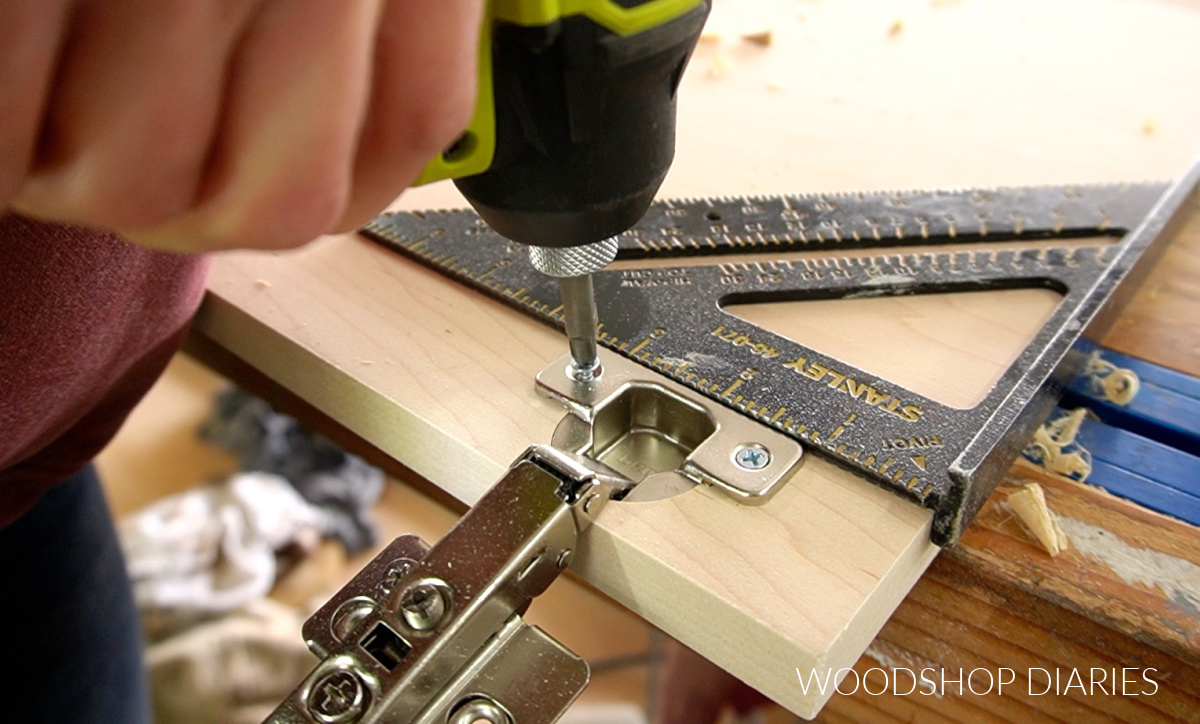

Use a square (or just eye ball it) to ensure they are straight, then drive the
screws (usually included with the hinges) through the holes on the cup plate
to secure them in place.

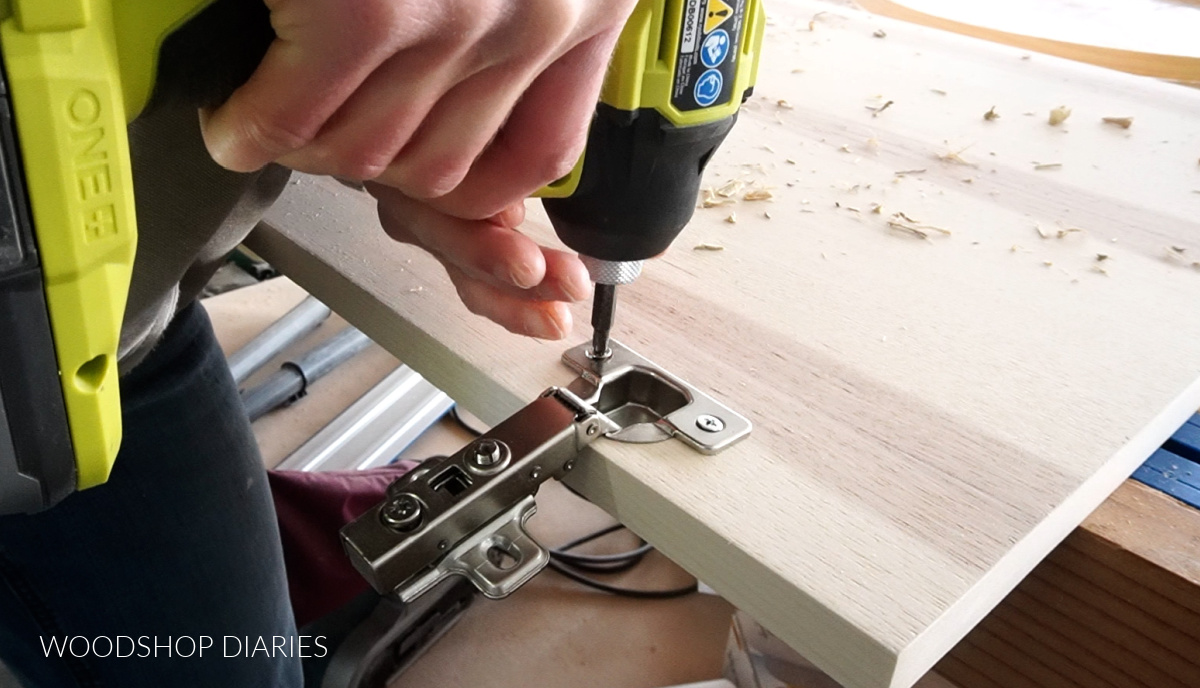

Close up driving screw to install concealed hinge onto cabinet door
- Attach Doors onto Cabinet
Once the hinges are installed onto the doors, all that’s left is installing the
doors onto the cabinet.
There may be easier ways to do this, but this is what works for me.
I like to simply hold my door as close as possible to its correct vertical
location. Sometimes a foot (shown below), some scrap blocks or an extra set of
hands can help.

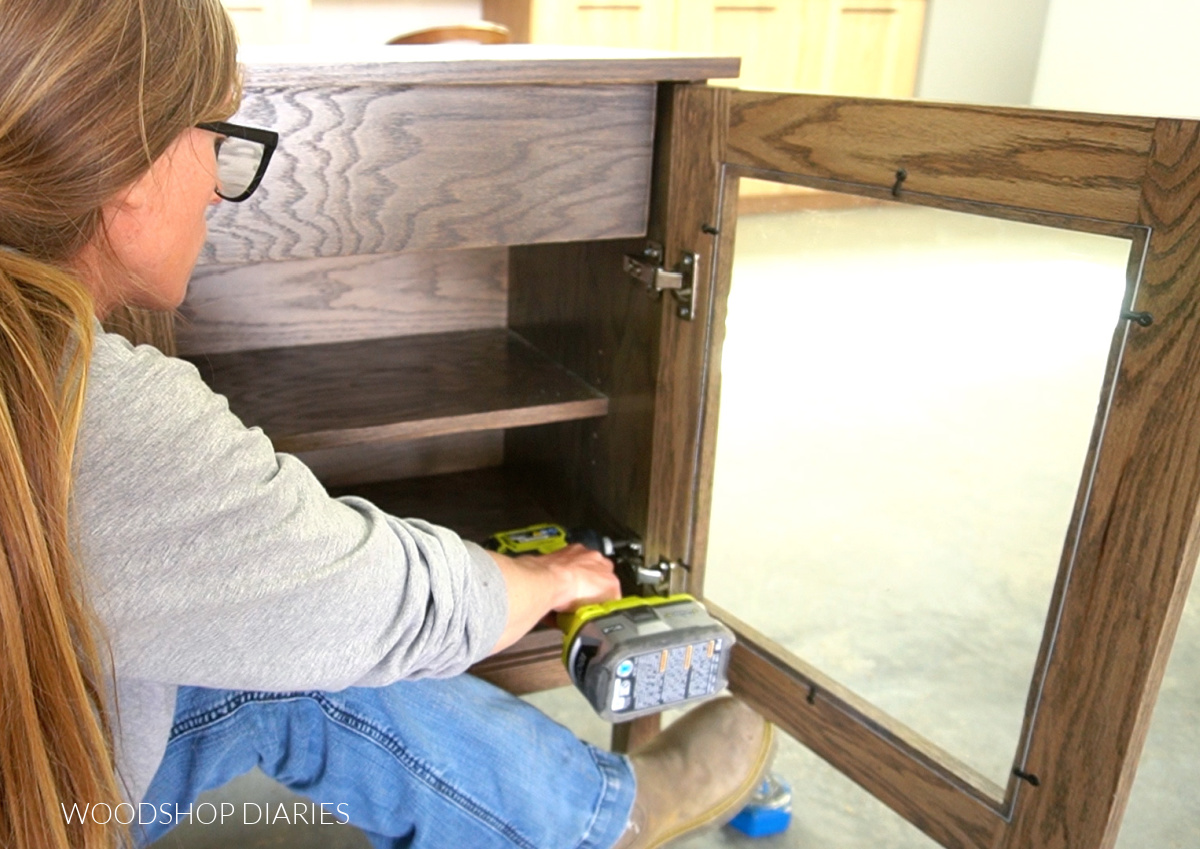

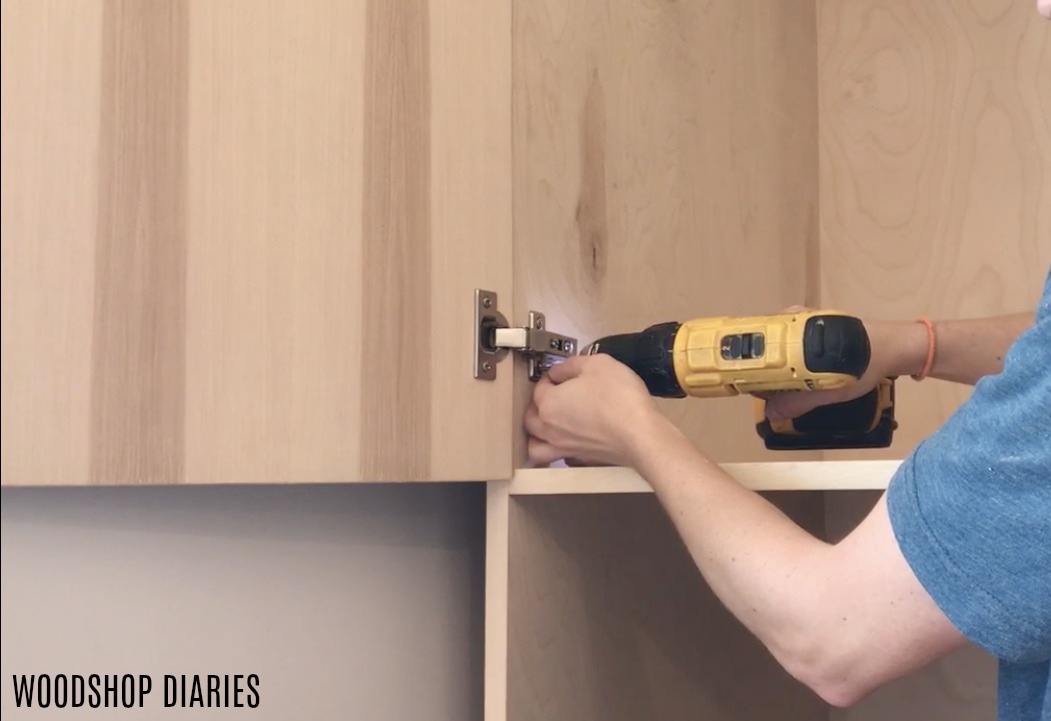

Shara Woodshop Diaries screwing hinge onto cabinet
Then, I use the remaining screws that came with the hinges to secure them onto
the cabinet or face frame at this location. Inset doors will need to be
installed a little further into the cabinet and overlay doors will be closer to
the front edge.
For overlay doors, you can butt the edge of the hinge side of the door up to
the front edge of the face frame or cabinet as you secure the hinges. This gets
you close and you can adjust as needed in the next step.
For inset doors, it helps to kind of place the door where it will be in its
final installed position and note how far into the cabinet the hinges go. Once
you install one, you’ll have a good feel for it.
TIP:
First, I add one screw in each hinge to make sure it’s a close fit (minor
adjustments are covered in the next step).
Once I have one screw in each hinge, I close the door to see how it fits. If
it’s way off, I remove the screws and try again adjusting as needed. If it’s
pretty close, I add the second screw in each hinge.
Close up installing plywood cabinet door using concealed hinges
- Adjust Hinges
The great thing about concealed hinges is that they have plenty of adjustment
options to get the perfect fit.
The bad thing about concealed hinges is that although they each have adjustment
options, they will all vary a little by type and brand.
So what’s shown below may not look EXACTLY the same as what you’re working with.
But, either way, you will find a few screws and/or slotted holes on the mounting
plate that allow for adjustments in all three directions.

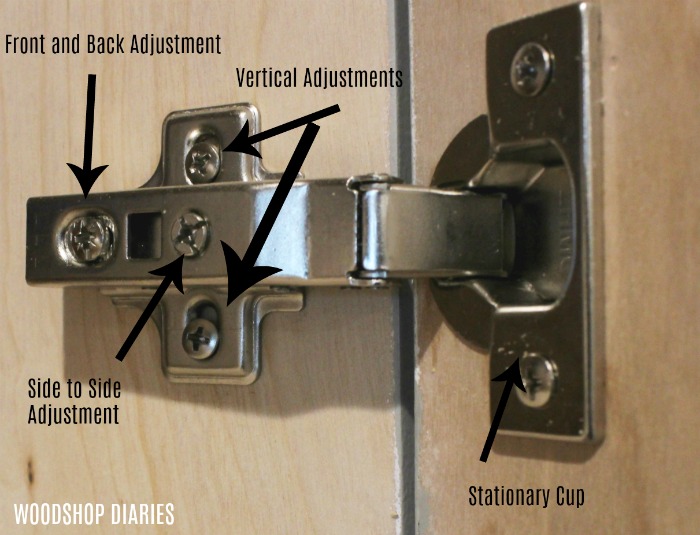

Concealed hinge adjustment locations
Be sure to check your specific hinges installation instructions for tips and
guidance. But, if you’re like me and just learn by playing around with it, you
can just use a screwdriver and turn each screw a little to see how the door
moves.
Here is a quick video showing how to make these hinges adjustments.
There will be adjustment screws to move the door vertically, side to side, and
front to back. For slotted holes, loosen the screws, adjust, and retighten. For
screw adjustments, just turn the screws–counterclockwise will adjust one way
and clockwise will adjust the opposite way.
Adjust all hinges as needed so that gaps/overlays are even and the door opens
without rubbing on anything.
Once you are happy with your adjustments, take a step back and admire your
beautifully installed doors!

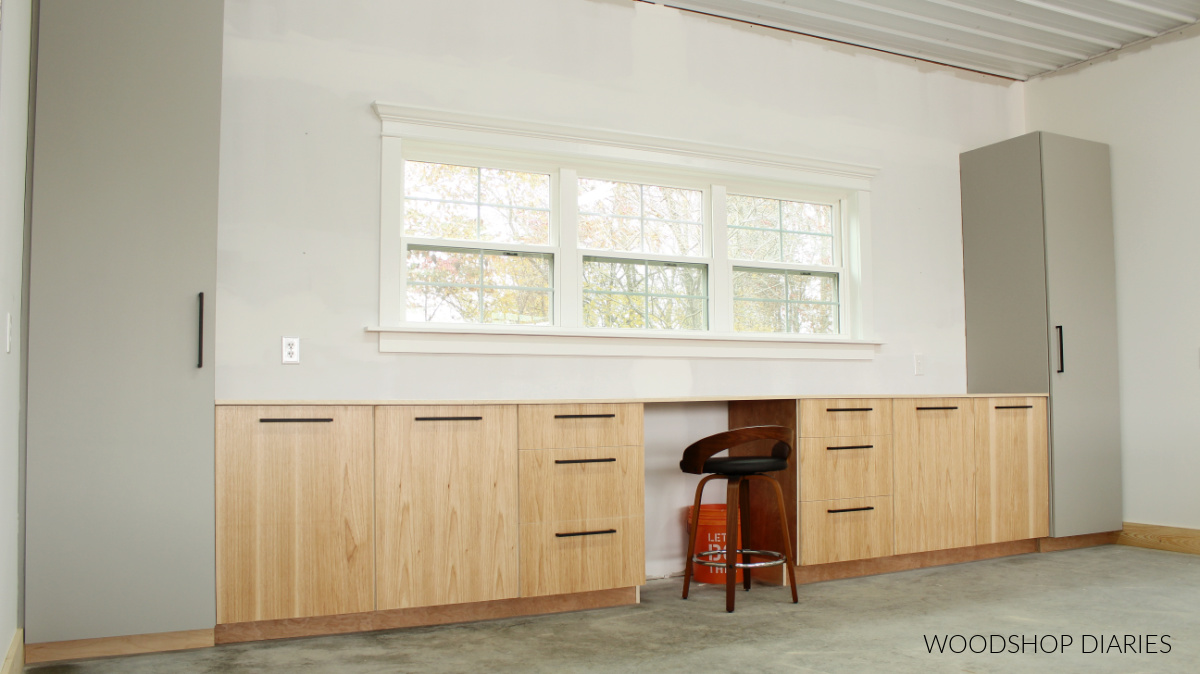

Workshop cabinets along wall with doors and drawers
I hope this helps you be a little less intimidated by installing doors onto your
projects. I promise after you do a couple, it’s really simple.
Concealed hinges make life a lot easier since the adjustment options allow you
to dial in your spacing after installation vs installing them perfect the first
time.
Looking for Projects with Doors to Practice on?
Here are some fun DIY projects with doors to give you some practice now that
you know how to install them!
DIY Display Console Cabinet
Workshop cabinets
How to Build Workshop Cabinet Boxes
DIY Display Cabinet
Stenciled Door Console
Small Linen Cabinet
DIY Modern Console Cabinet
If you enjoyed this tutorial and want to be the first to know when new projects,
plans, and how tos are live, be sure to subscribe to the free newsletter below!
Awesome DIY Project Plans Straight to Your Inbox!
Sign up to receive priority access to the latest plans and projects!
.
Don’t forget to save this for later by pinning or sharing to your favorite
social platform!
Pinterest collage showing images of installing concealed hinges
Until next time, friends, happy building!
