32 X 8 LED Matrix
| ||
|
|
|
|
|
32 X 8 LED Matrix
| ||
The 32 X 8 LED Matrix is actually 4 8x8 matrices, driven by a MAX7219 chip, which is capable of driving 8 individual 8 X 8. In this case I only need 8.

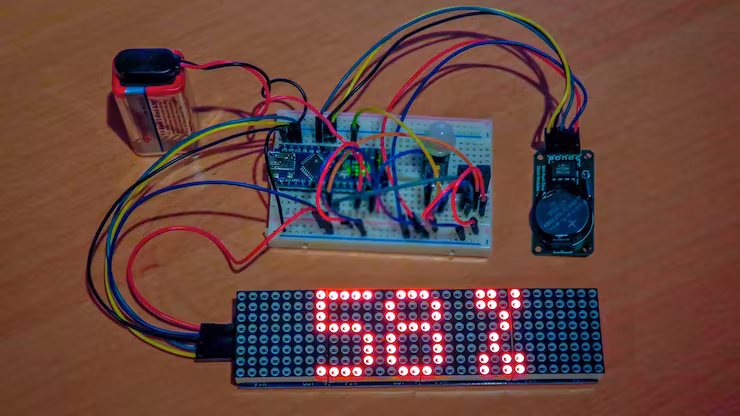

| LED Matrix | Arduino | Colour of wire in picture |
|---|---|---|
| VCC | 5V | Red |
| GND | GND | Black |
| DIN | D12 | Yellow |
| CS | D10 | White |
| CLK | D11 | Blue |

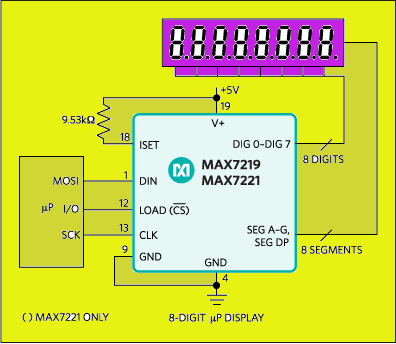

| MAX7219 schematic |
