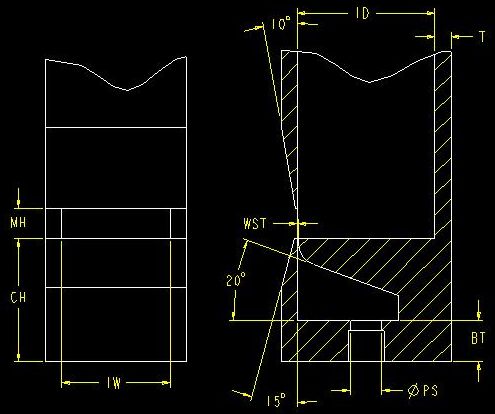

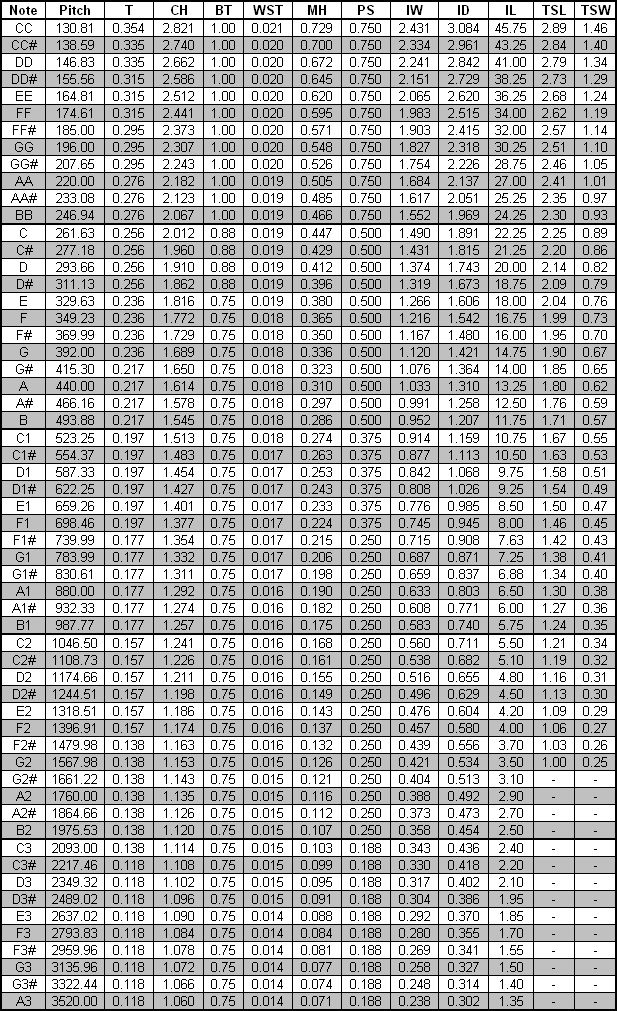

The Prestant pipes are identical to the Montre pipes except they are two notes smaller in scale. Here are all the dimensions (inches) for the Prestant pipes:
| T | Wall Thickness | PS | Pipe Size |
| CH | Cap Height | IW | Internal Width |
| BT | Bottom Thickness | ID | Internal Depth |
| WST | Windsheet Thickness | IL | Internal Length |
| MH | Mouth Height |
