How to Setup an Axis211A with MPEG-4 streaming

Go back to the How To pages...


Contents

1 Axis 211A Network Camera Setup and Configuration
1.1 User Access Configuration
1.2 Advanced Network Settings
1.3 Advanced Video & Image Configuration
2 ZoneMinder Monitor Setup and Configuration
2.1 ZoneMinder Options
2.2 MPEG-4 Monitor Setup and Configuration




Axis 211A Network Camera Setup

and Configuration

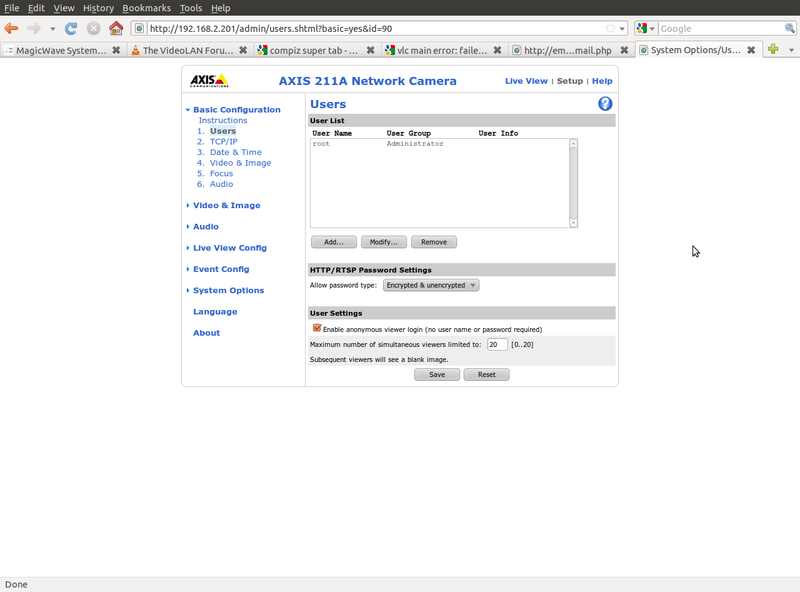

User Access Configuration
Enable anonymous viewer login

	Enable anonymous viewer login

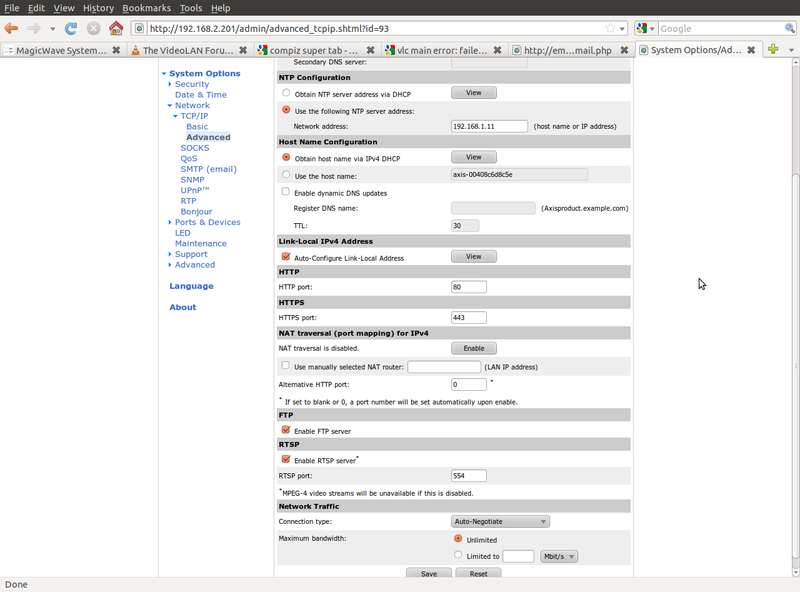

Advanced Network Settings
	Enable RTSP server

Enable RTSP server

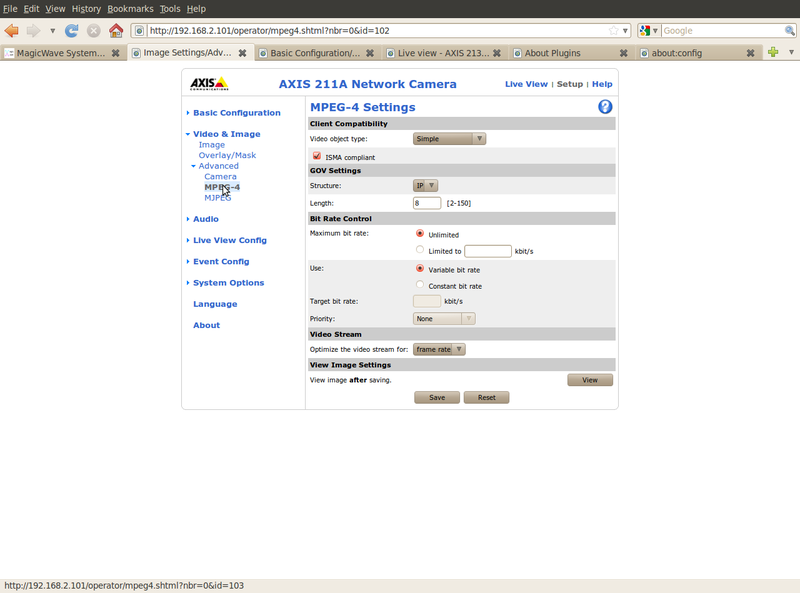

Advanced Video & Image Configuration

	Select Video object type “Simple” and ISMA Compliant



ZoneMinder Monitor Setup and Configuration

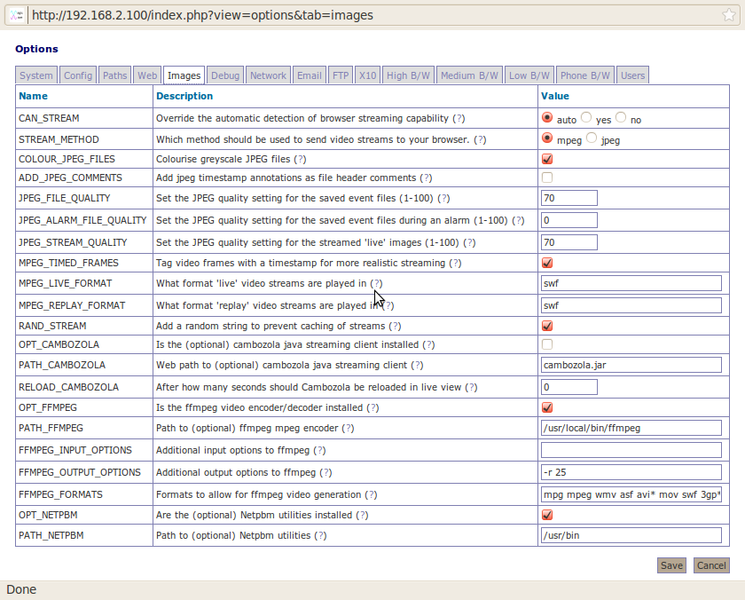

ZoneMinder Options

Change STREAM_METHOD from "jpeg" to "mpeg"
Enter “swf” for MPEG_LIVE_FORMAT and MPEG_REPLAY_FORMAT

	ZoneMinder Options



MPEG-4 Monitor Setup and Configuration

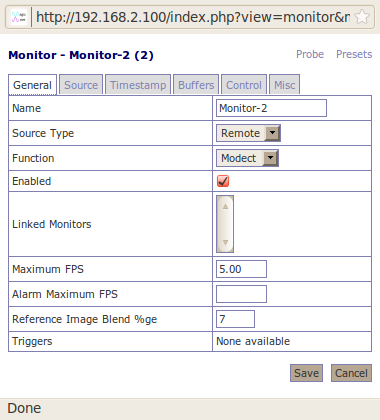

Select Add New Monitor

	Select Add New Monitor

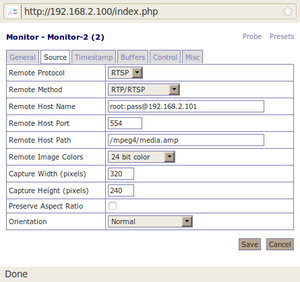

Configure monitor source as follows
