Filtering Events
From:     https://zoneminder.readthedocs.io/en/stab le/userguide/filterevents.html


Intro Saving Filters How Filters Work Relative Items In Date Strings
Caveat With Relative Items Troubleshooting





Filtering Event

Filters allow you to define complex conditions with associated actions in
ZoneMinder. Examples could include:
And many more.

The filter window can be accessed by tapping on the top level filter menu

You can use the filter window to create your own filters or to modify existing
ones. You can even save your favourite filters to re-use at a future date.
Filtering itself is fairly simple; you first choose how many expressions you’d
like your filter to contain. Changing this value will cause the window to
redraw with a corresponding row for each expression.  You then select what you
want to filter on and how the expressions relate by choosing whether they are
‘and’ or ‘or’ relationships. For filters comprised of many expressions you will
also get the option to bracket parts of the filter to ensure you can express it
as desired. Then if you like choose how you want your results sorted and whether
you want to limit the amount of events displayed.

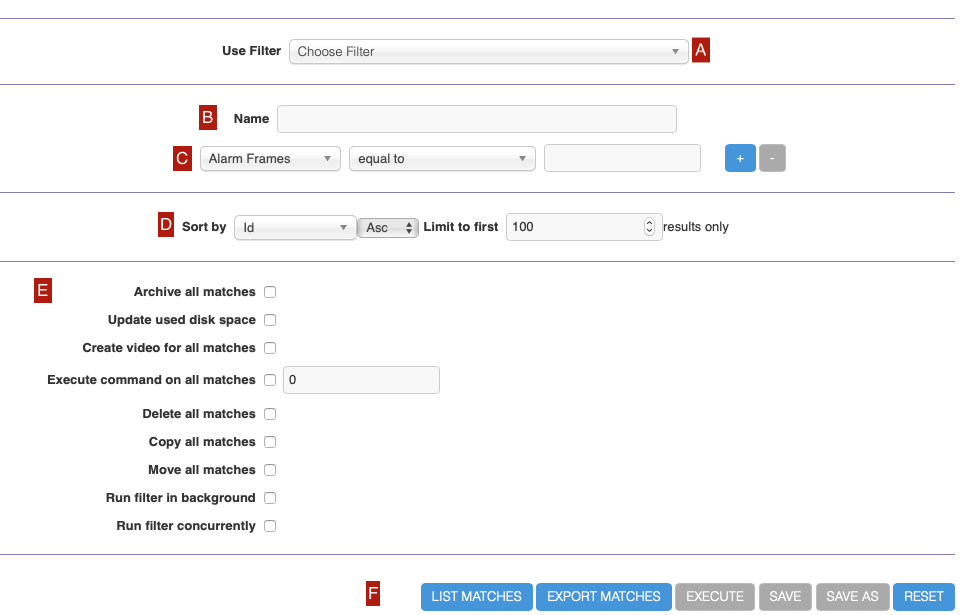

Here is what the filter window looks like




Note
More details on filter conditions:

There are several different elements to an event that you can filter on, some of
which require further explanation. These are as follows, * ‘Date/Time’ which
must evaluate to a date and a time together, * ‘Date’ and ‘Time’ which are
variants which may only contain the relevant subsets of this, * ‘Weekday’ which
as expected is a day of the week.

All of the preceding elements take a very flexible free format of dates
and time based on the PHP strtotime function: strtotime() This allows values
such as ‘last Wednesday’ etc to be entered. We recommend acquainting yourself
with this function to see what the allowed formats are.  However automated
filters are run in perl and so are parsed by the Date::Manip package. Not all
date formats are available in both so if you are saved your filter to do
automatic deletions or other tasks you should make sure that the date and time
format you use is compatible with both methods. The safest type of format to use
is ‘-3 day’ or similar with easily parseable numbers and units are in English.

The other things you can filter on are all fairly self explanatory,
except perhaps for ‘Archived’ which you can use to include or exclude
Archived events. In general you’ll probably do most filtering on un
-archived events. There are also two elements, Disk Blocks and Disk Percent
which don’t directly relate to the events themselves but to the disk
partition on which the events are stored. These allow you to specify an
amount of disk usage either in blocks or in percentage as returned by the
‘df’ command. They relate to the amount of disk space used and not the
amount left free. Once your filter is specified, clicking ‘submit’ will
filter the events according to your specification. As the disk based
elements are not event related directly if you create a filter and include
the term ‘DiskPercent > 95’ then if your current disk usage is over that
amount when you submit the filter then all events will be listed whereas if
it is less then none at all will. As such the disk related terms will tend
to be used mostly for automatic filters (see below). If you have created a
filter you want to keep, you can name it and save it by clicking ‘Save’.

If you do this then the subsequent dialog will also allow you specify whether
you want this filter automatically applied in order to delete events or upload
events via ftp to another server and mail notifications of events to one or more
email accounts. Emails and messages (essentially small emails intended for
mobile phones or pagers) have a format defined in the Options screen, and may
include a variety of tokens that can be substituted for various details of the
event that caused them. This includes links to the event view or the filter as
well as the option of attaching images or videos to the email itself. Be aware
that tokens that represent links may require you to log in to access the actual
page, and sometimes may function differently when viewed outside of the general
ZoneMinder context. The tokens you can use are as follows.

Finally you can also specify a script which is run on each matched event. This
script should be readable and executable by your web server user. It will get
run once per event and the relative path to the directory containing the event
in question. Normally this will be of the form <MonitorName><EventId>
so from this path you can derive both the monitor name and event id and perform
any action you wish. Note that arbitrary commands are not allowed to be
specified in the filter, for security the only thing it may contain is the full
path to an executable. What that contains is entirely up to you however.

Filtering is a powerful mechanism you can use to eliminate events that fit a
certain pattern however in many cases modifying the zone settings will better
address this. Where it really comes into its own is generally in applying time
filters, so for instance events that happen during weekdays or at certain times
of the day are highlighted, uploaded or deleted.  Additionally using disk
related terms in your filters means you can automatically create filters that
delete the oldest events when your disk gets full. Be warned however that if you
use this strategy then you should limit the returned results to the amount of
events you want deleted in each pass until the disk usage is at an acceptable
level. If you do not do this then the first pass when the disk usage is high
will match, and then delete, all events unless you have used other criteria
inside of limits. ZoneMinder ships with a sample filter already installed,
though disabled. The PurgeWhenFull filter can be used to delete the oldest
events when your disk starts filling up. To use it you should select and load it
in the filter interface, modify it to your requirements, and then save it making
you sure you check the ‘Delete all matches’ option. This will then run in the
background and ensure that your disk does not fill up with events.





Saving filters

When saving filters, if you want the filter to run in the background make sure
you select the “Run filter in background” option. When checked, ZoneMinder will
make sure the filter is checked regularly. For example, if you want to be
notified of new events by email, you should make sure this is checked. Filters
that are configured to run in the background have a “*” next to it.




How filters actually work

It is useful to know how filters actually work behind the scenes in
ZoneMinder, in the event you find your filter not functioning as intended:





Relative items in date strings

Relative items adjust a date (or the current date if none) forward or
backward. The effects of relative items accumulate. Here are some examples:



The unit of time displacement may be selected by the string ‘year’ or ‘month’
for moving by whole years or months. These are fuzzy units, as years and months
are not all of equal duration. More precise units are ‘fortnight’ which is worth
14 days, ‘week’ worth 7 days, ‘day’ worth 24 hours, ‘hour’ worth 60 minutes,
‘minute’ or ‘min’ worth 60 seconds, and ‘second’ or ‘sec’ worth one second. An
‘s’ suffix on these units is accepted and ignored.

The unit of time may be preceded by a multiplier, given as an optionally signed
number. Unsigned numbers are taken as positively signed. No number at all
implies 1 for a multiplier. Following a relative item by the string ‘ago’ is
equivalent to preceding the unit by a multiplier with value -1.

The string ‘tomorrow’ is worth one day in the future (equivalent to ‘day’), the
string ‘yesterday’ is worth one day in the past (equivalent to ‘day ago’).

The strings ‘now’ or ‘today’ are relative items corresponding to zero-valued
time displacement, these strings come from the fact a zero -valued time
displacement represents the current time when not otherwise changed by previous
items. They may be used to stress other items, like in ‘12:00 today’. The string
‘this’ also has the meaning of a zero -valued time displacement, but is
preferred in date strings like ‘this thursday’.

When a relative item causes the resulting date to cross a boundary where the
clocks were adjusted, typically for daylight saving time, the resulting date
and time are adjusted accordingly.

The fuzz in units can cause problems with relative items. For example,
‘2003-07-31 -1 month’ might evaluate to 2003-07-01, because 2003-06-31 is an
invalid date. To determine the previous month more reliably, you can ask for
the month before the 15th of the current month. For example:

$ date -R
Thu, 31 Jul 2003 13:02:39 -0700
$ date --date='-1 month' +'Last month was %B?'
Last month was July?
$ date --date="$(date +%Y-%m-15) -1 month" +'Last month was %B!'
Last month was June!

As this applies to ZoneMinder filters, you might want to search for events in a
period of time, or maybe for example create a purge filter that removes events
older than 30 days. For the later you would want at least two lines in your
filter. The first line should be:
    [<Archive Status> <equal to> <Unarchived Only>]

as you don’t want to delete your archived events.

Your second line to find events older than 30 days would be:
    [and <Date><less than> -30 days]

You use “less than” to indicate that you want to match events before the
specified date, and you specify “-30 days” to indicate a date 30 days before the
time the filter is run. Of course you could use 30 days ago as well(?).

You should always test your filters before enabling any actions based on them to
make sure they consistently return the results you want. You can use the submit
button to see what events are returned by your query.




Caveat with Relative items

One thing to remember if you specify relative dates like “now” or “1 minute ago”
, etc, they are converted to a specific date and time by Zoneminder’s filtering
process (zmfilter.pl) when the filters are loaded.  They are _NOT_ recomputed
each time the filter runs. Filters are re-loaded depending on the value
specified by FILTER_RELOAD_DELAY variable in the Zoneminder Web
Console->Options->System

This may cause confusion in the following cases, for example: Let’s say a user
specifies that he wants to be notified of events via email the moment the event
“DateTime” is “less than” “now” as a filter criteria.  When the filter first
gets loaded by zmfilter.pl, this will translate to “Match events where Start
Time <” + localtime() where local time is the time that is resolved when this
filter gets loaded. Now till the time the filter gets reloaded after
FILTER_RELOAD_DELAY seconds (which is usually set to 300 seconds, or 5 minutes),
that time does not get recomputed, so the filter will not process any new events
that occur after that computed date till another 5 minutes, which is probably
not what you want.




Troubleshooting tips

If your filter is not working, here are some useful tips:
