Compression Fittings



: Page Origin

Click For Larger Pic

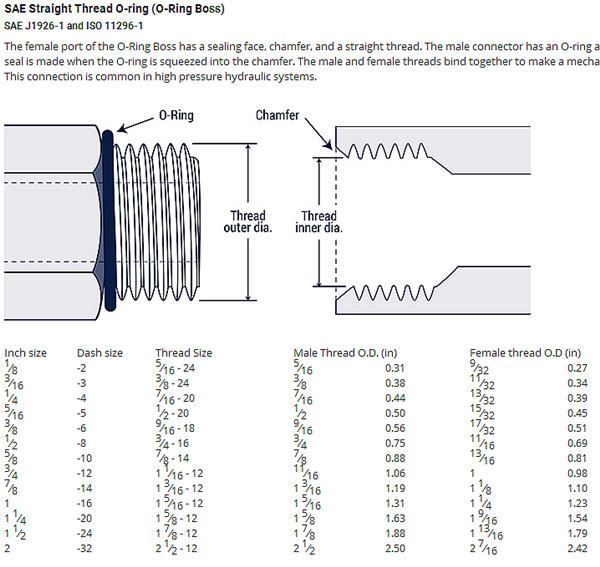

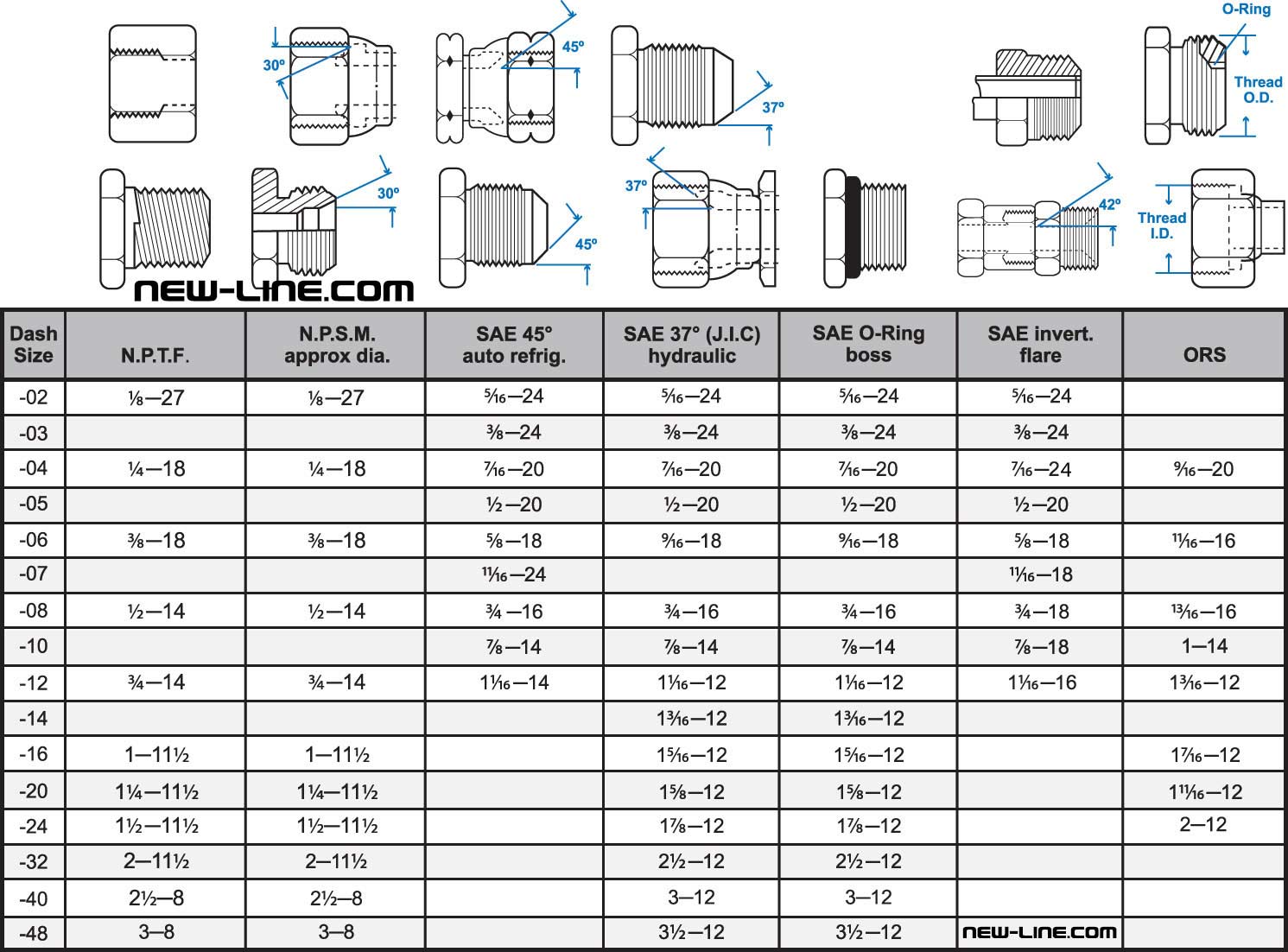

Diag Below: ORB: O-Ring-Boss


Click For Larger Pic

Compression Fittings:
Metal: use ferrule + nut, tighten 1/2T
Plastic tube <= 3/8", plastic sleeve (ferule), nut, 1-1/2 - 2T
Plastic tube >= 1/2", Brass sleve (ferule) Steel tube, nut, 1-1/2 - 2 T
plastic tube (PEX): plastic ferrule + nut, no insert,
plastic tube: plastic ferrule + nut, brass insert (not steel),
