DIY Weather Station With ESP32

Hello! Today we are going to look at this smart weather station I built. The weather station I built measures temperature, humidity, air pressure, wind speed and direction, and the amount of rain that falls. All the data is collected by an ESP32, which is a kind of Arduino, and via wifi it is sent to the mobile app. On the app, or on the web page, we can see real-time data from the weather station and graphs, for example of the temperature, with minimum and maximum of every day, and the pressure graph, which we can use to make a rough weather forecast. If this sounds difficult, don't worry, in this guide you can find all the informations.

To see more details about the construction, watch the  video on YouTube  (it is in  Italian  but it has  English subtitles ).

To build the weahter station, we will need:

• ESP32 board with external wifi antenna
• micro usb cable
• plastic box for the electronics
• DHT22 temperature and humidity sensor
• BMP180 pressure sensor
• various wires and cables
• 3D printer white filament
• 5v to 3,3v level shifters
• 6 Hall effect sensors
• perfboard
• M4 and M5 threaded rods
• M4 and M5 bolts and nuts

and a lot of other things i forgot to add to the list!

Tools:

• 3D printer
• soldering iron
• drill
• hot glue
• computer

Also, to connect the project to the app you need to have Home Assistant running on a raspberry pi or on a computer. If you don't have Home Assistant you can connect the weather station to Blynk , but you need to write the code for it. If you write the code for Blynk, if you like you can share it so others can use it.

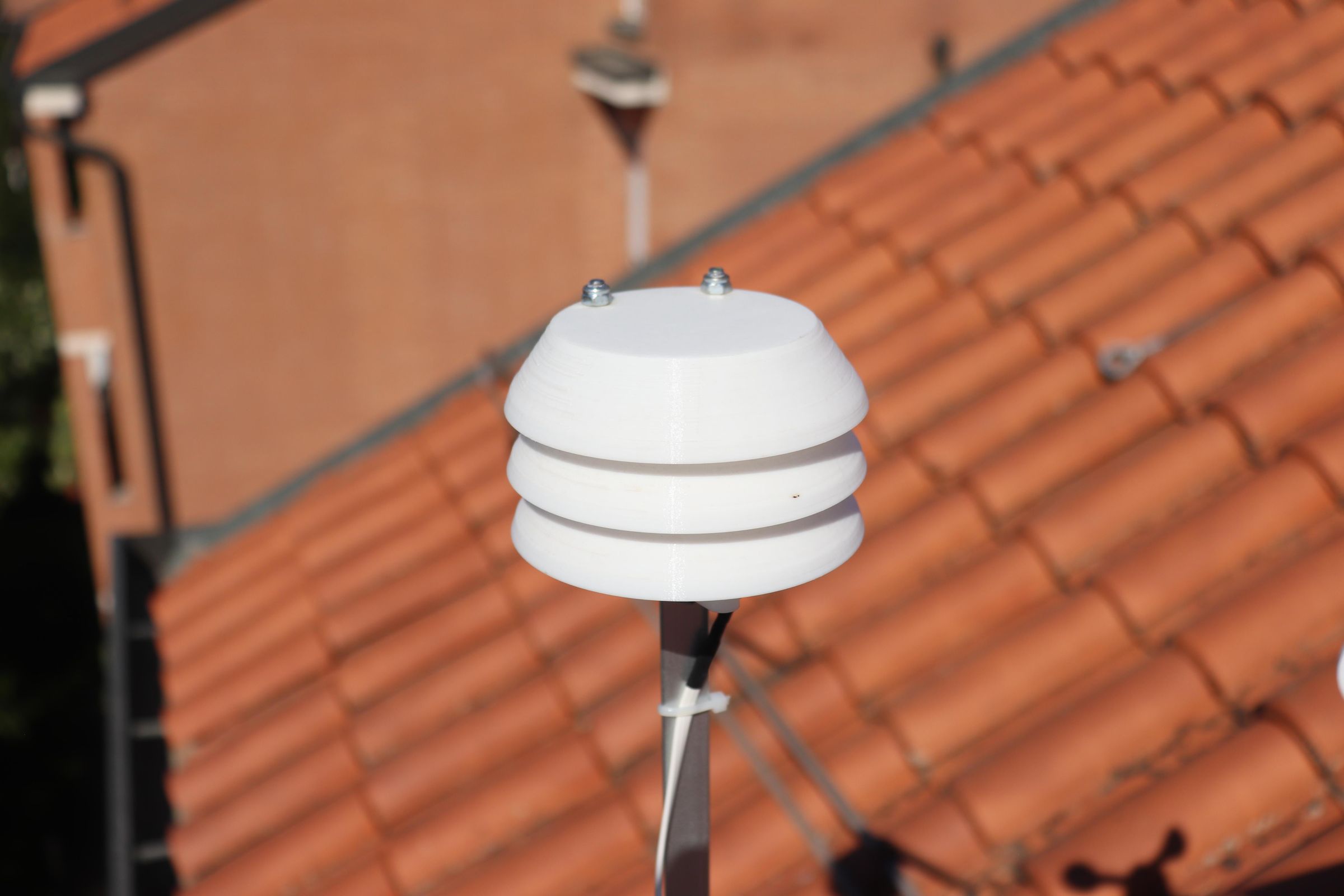

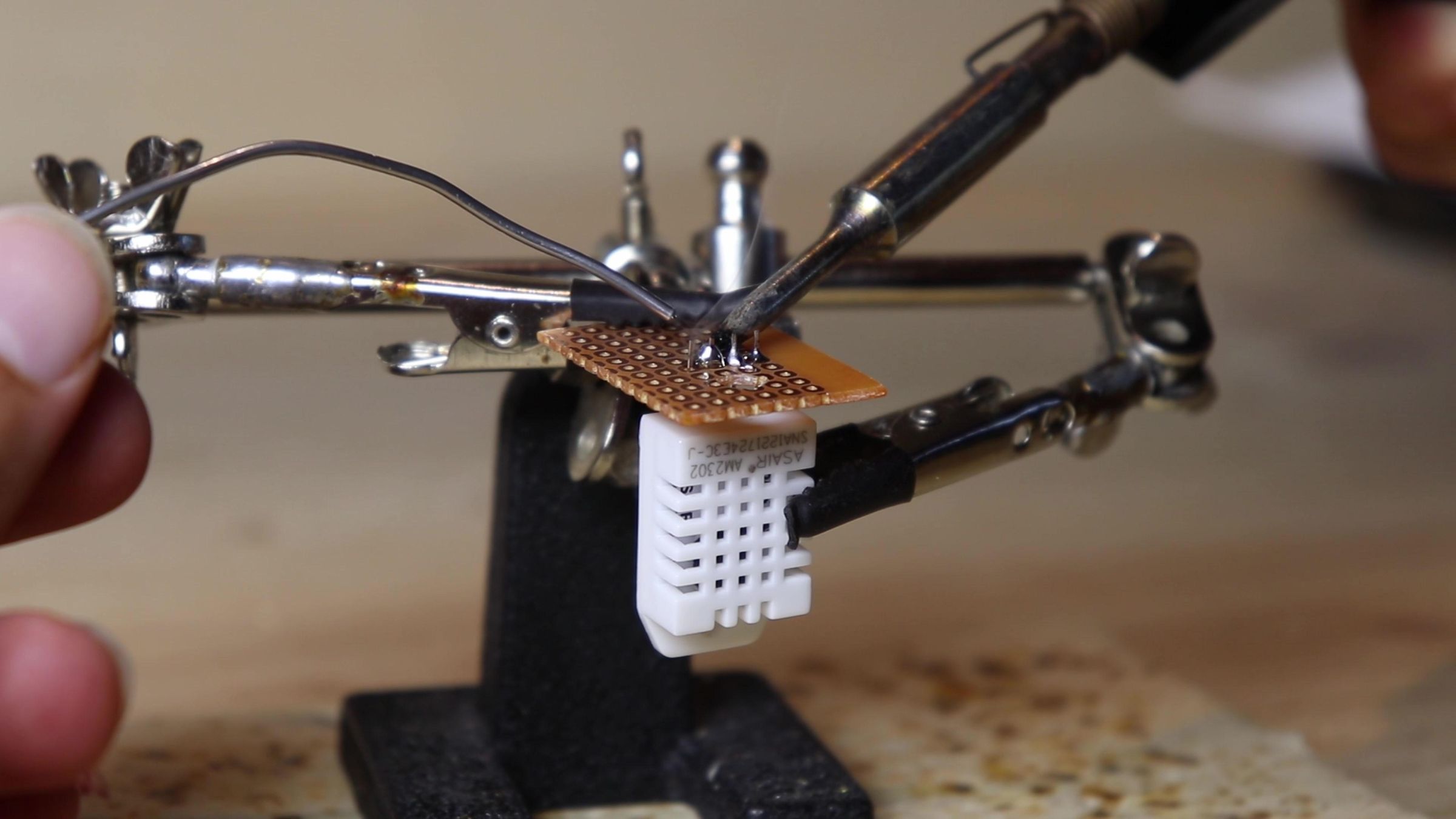

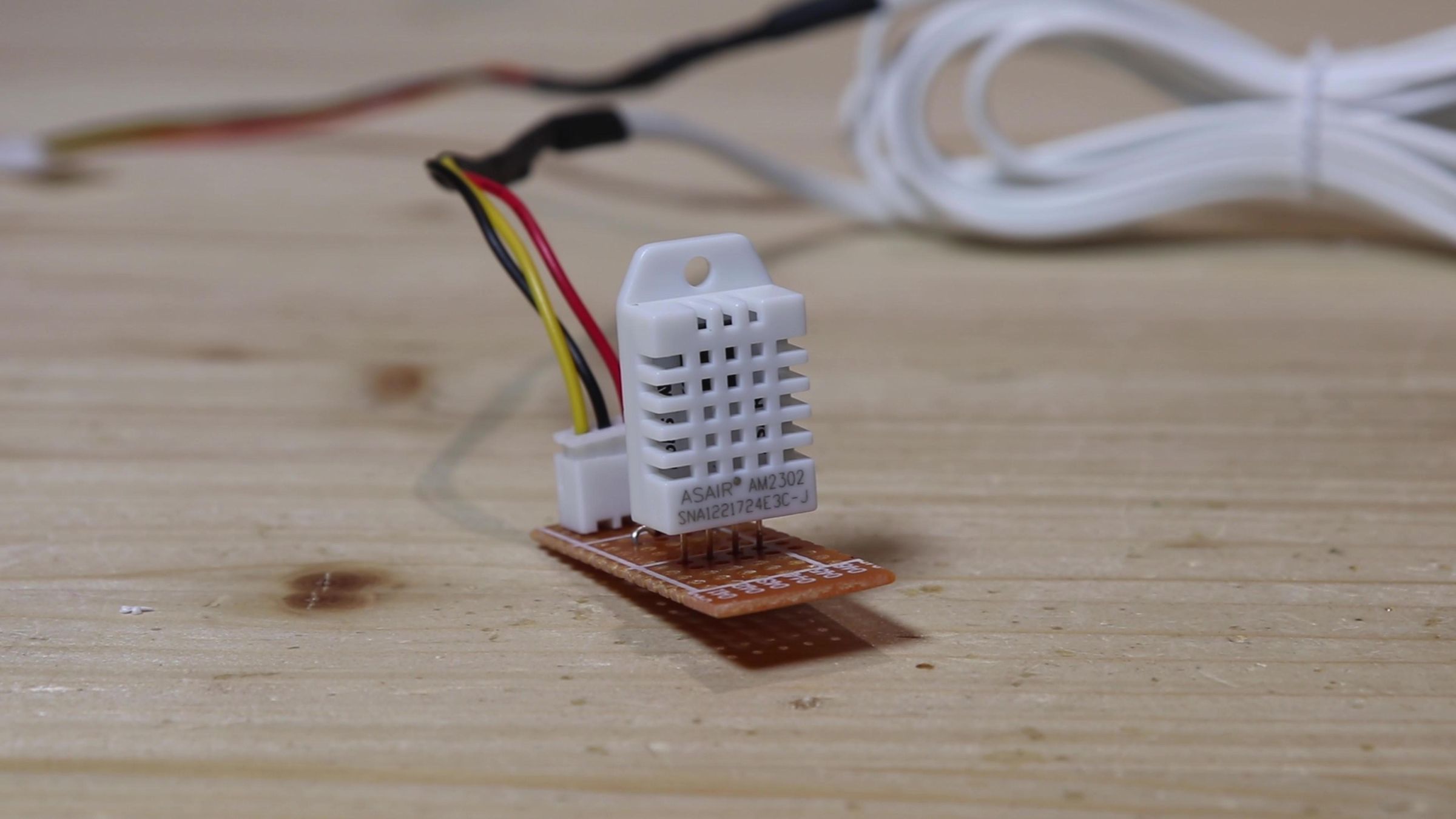

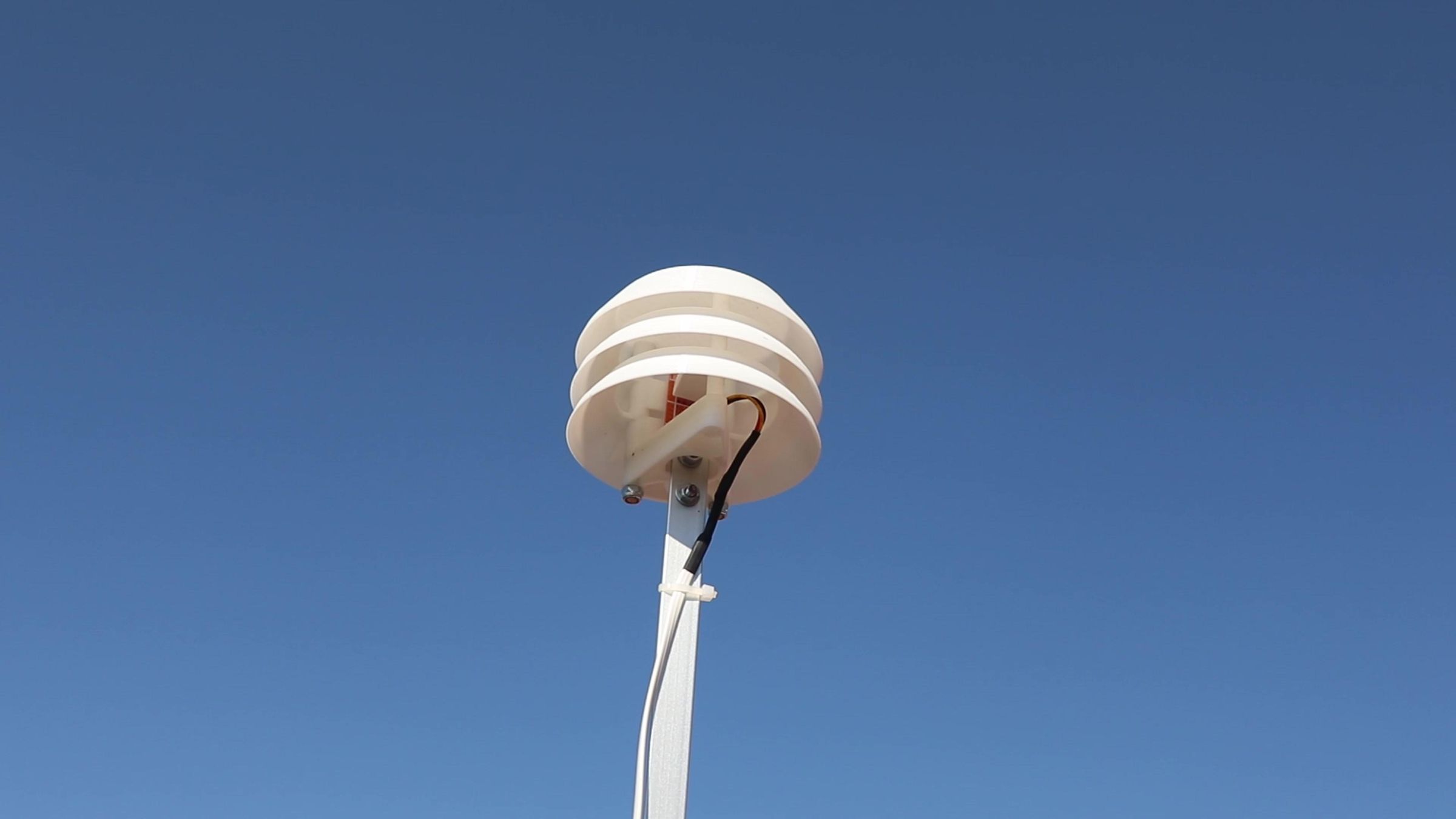

To measure temperature and humidity I will use the DHT22 sensor. I soldered the sensor onto a perfboard, with a connector and a pull-up resistor between 3,3v and the signal pin. I put the sensor inside a Stevenson screen. The Stevenson screen protects the sensor from direct sun and rain, while allowing air to pass through. By avoiding the sun to heat the sensor, it allows to get more accurate temperature readings. To build it, I 3D printed all the parts, and attached them togheter with two threaded rods. I glued the perfboard with the sensor inside the Stevenson screen, and underneath I put the bracket that will hold the sensor up.

Down here you can find all the 3d printable files for the Stevenson screen.

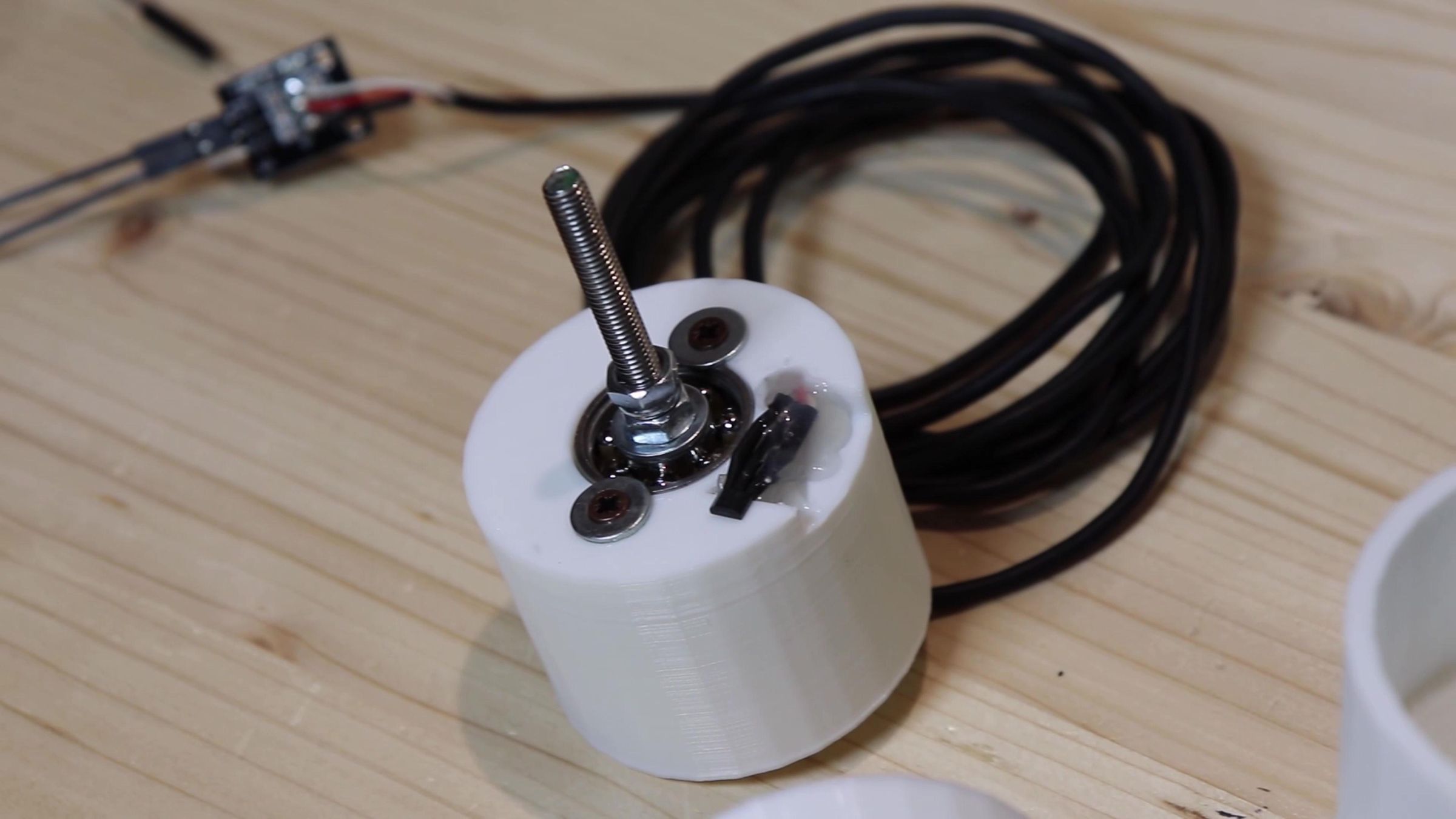

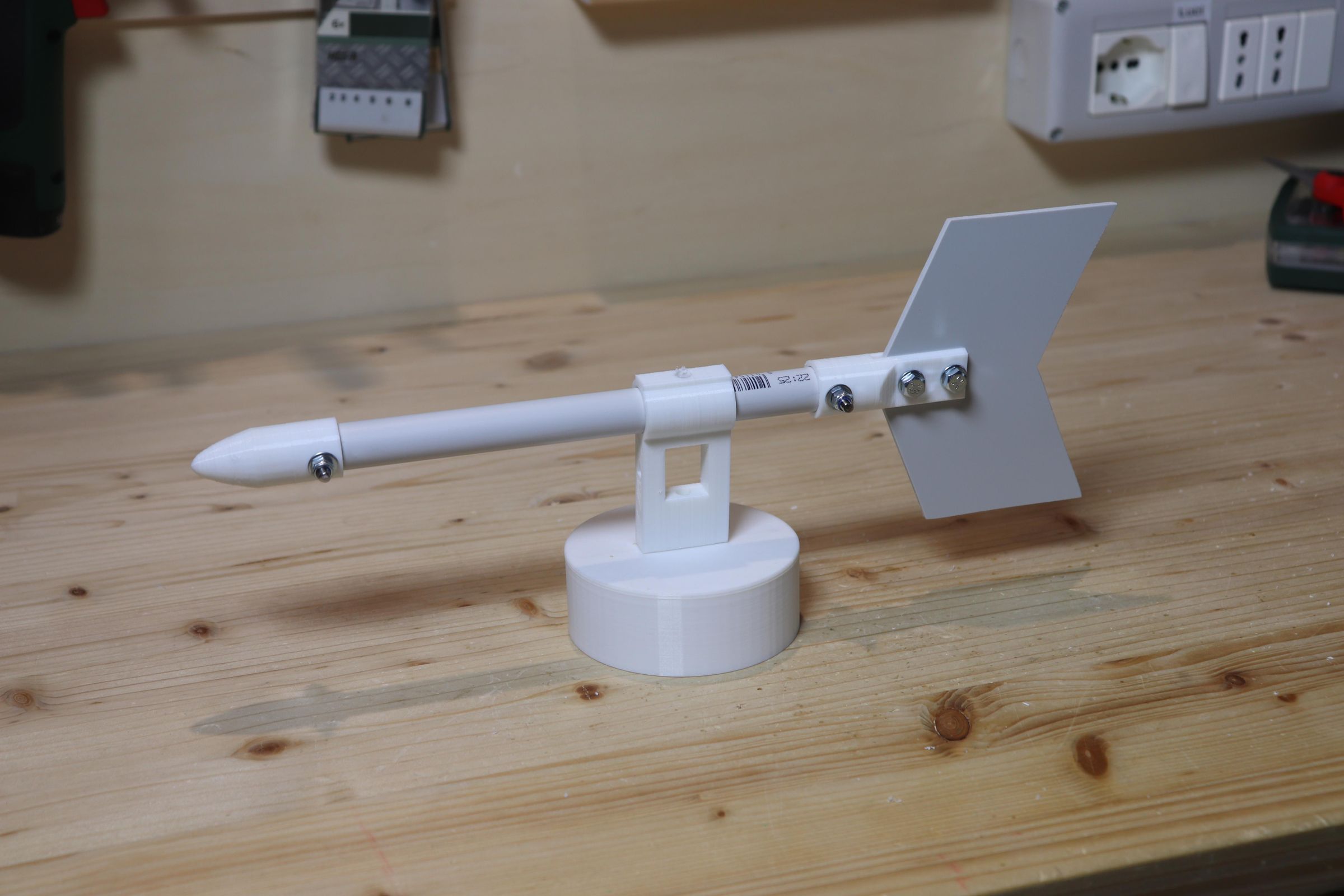

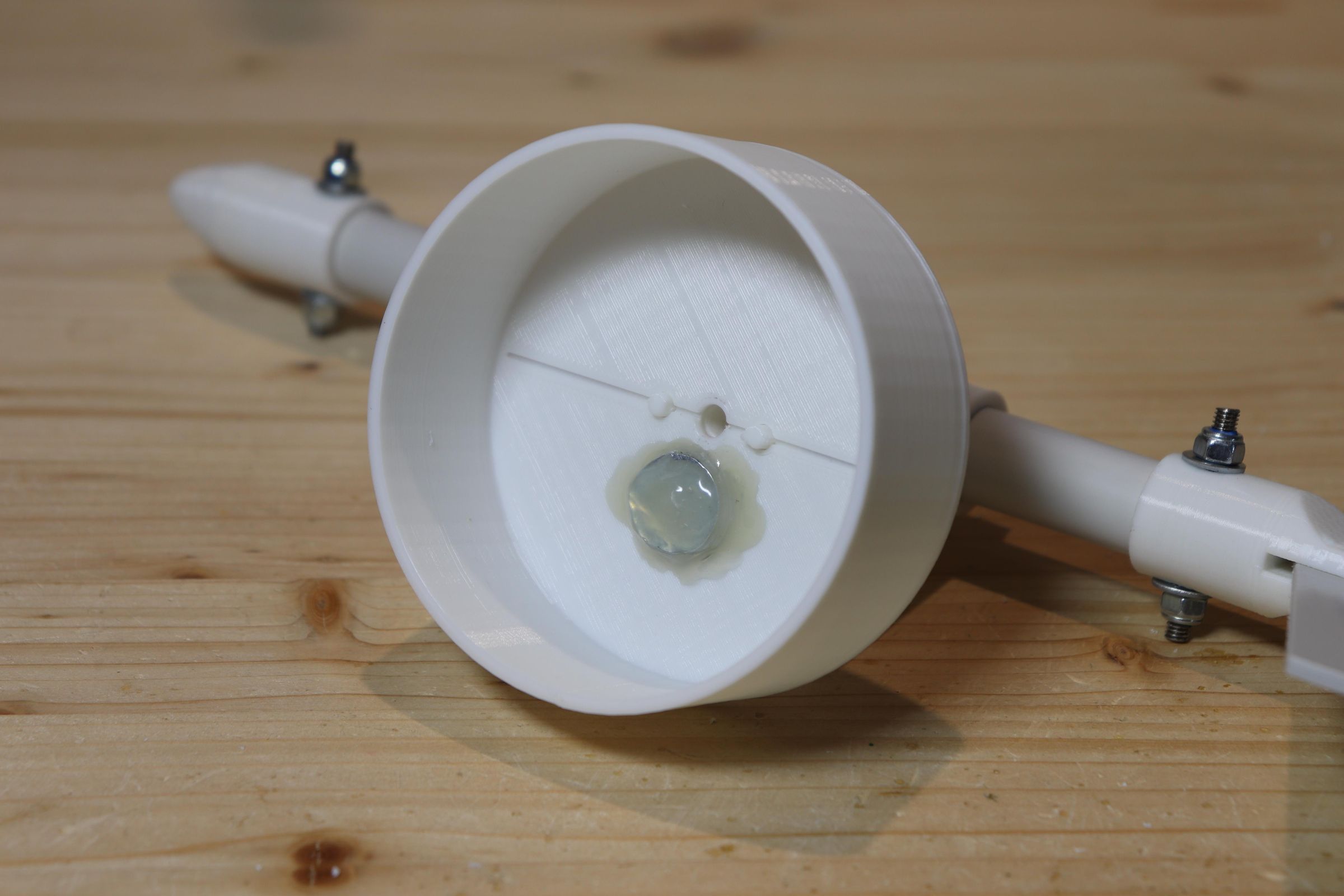

Then we have the wind vane, which detects which direction the wind is coming from. Also for this one I had to make some parts with the 3D printer. The wind vane has this arrow-shaped piece at the back and the tip at the front, with a bolt inside as a weight to balance it. The flag can rotate freely with a ball bearing that I put in the base. To detect the 4 cardinal points from which the wind comes (north, east, south, west) I will use 4 hall effect sensors, which are magnetic sensors that are activated when a magnet approaches.

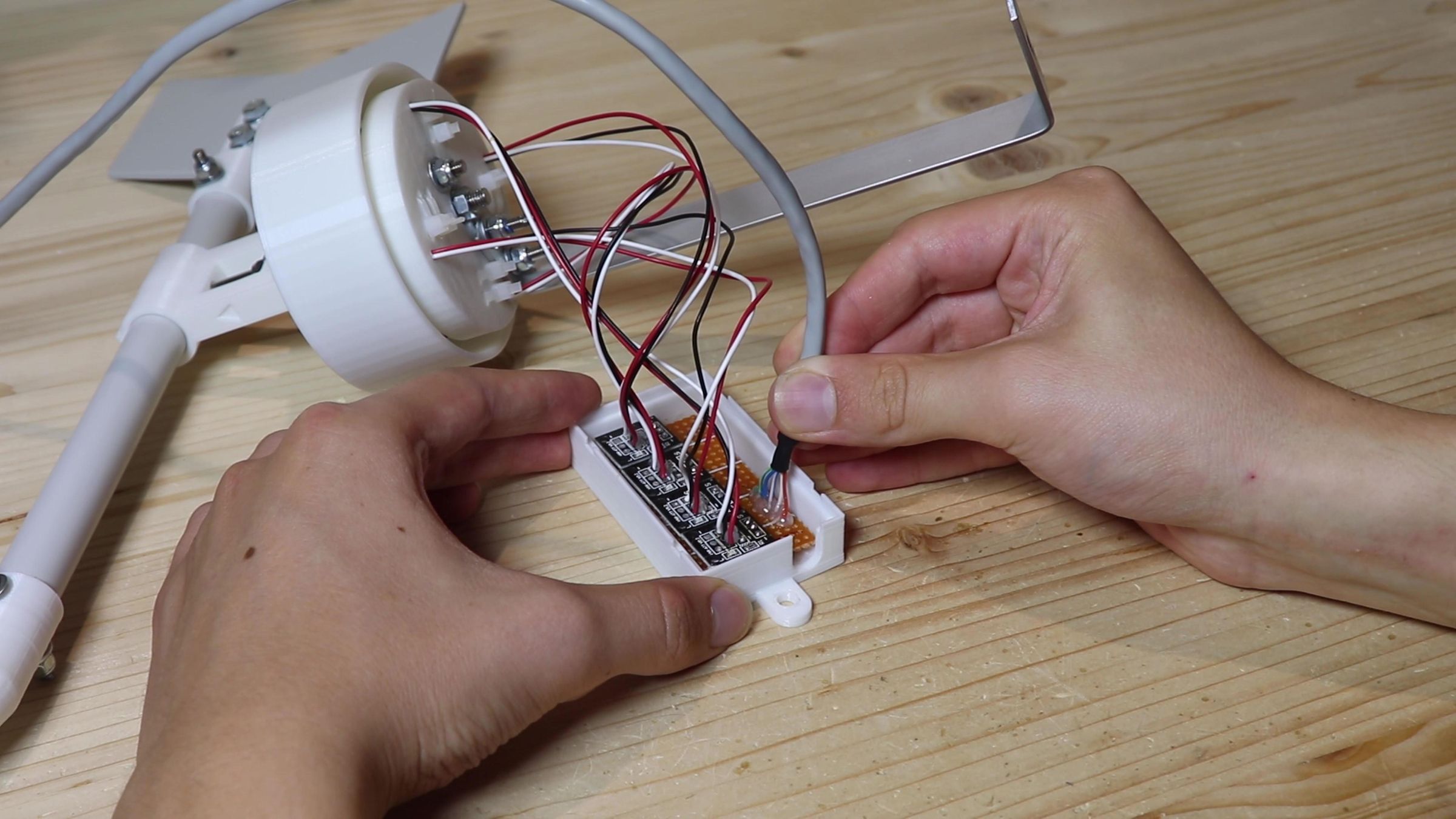

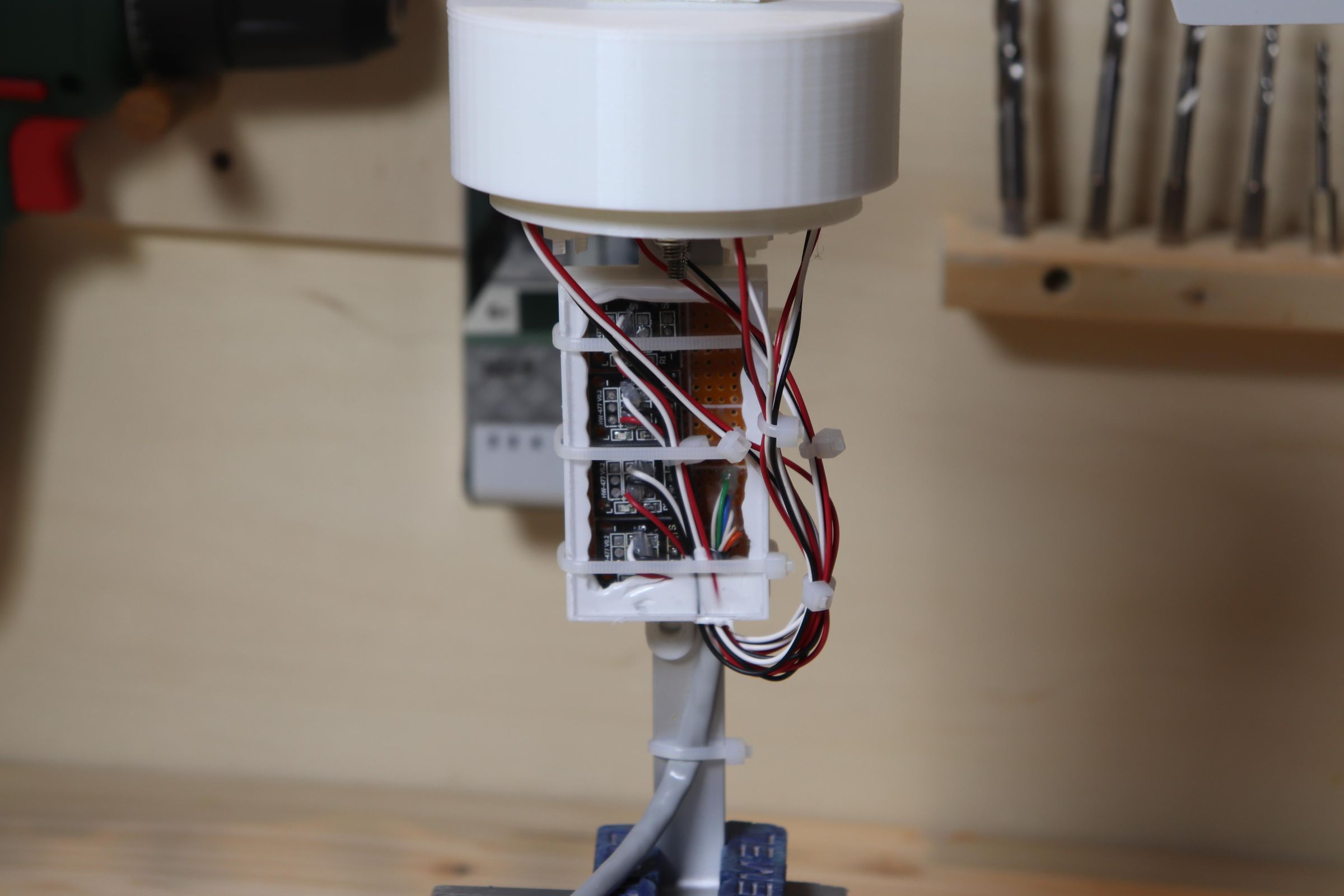

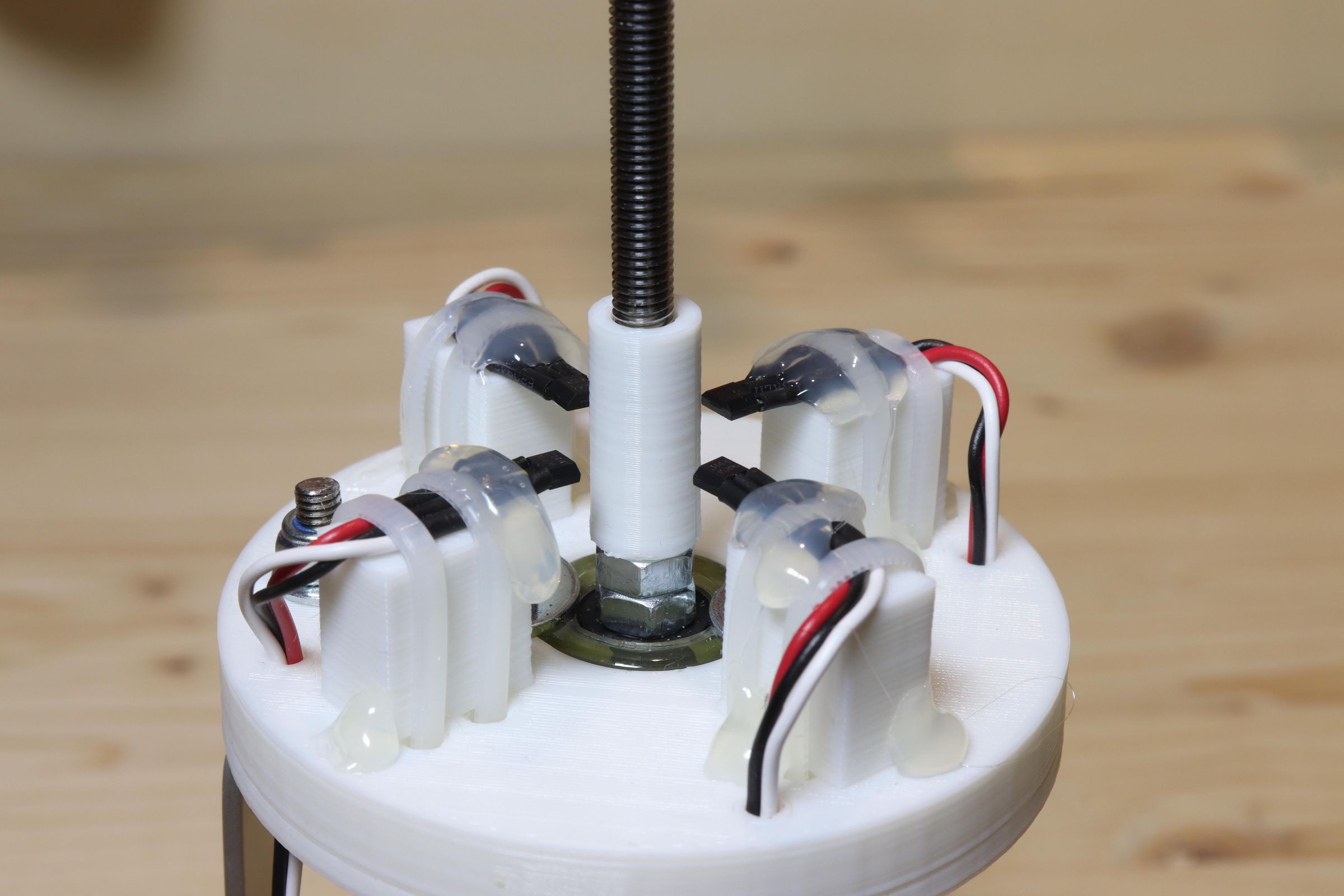

My idea is to put the hall sensors like shown in the second photo, with the magnet spinning and activating the sensor of the cardinal point towards which the flag is turned. For intermediate points, e.g. north-east, the two corresponding sensors (north and east) will be activated. I have placed the magnetic sensors here on the base of the wind vane, raised of about 1 cm to keep them away from the metal bolts which can attract the magnet. On the upper part, that is free to rotate, I glued the magnet. This piece also has the function of protecting the sensors from the rain. I inserted the actual wind vane onto the threaded rod, and secured it with a self-locking nut. The hall sensors each have 3 wires, which go to their original board with the little LED, which is useful to see if the sensors work correctly. I soldered the four boards onto a perfboard. From there I used an old network cable to bring gnd and 5v to the sensors and the four signal pins to the main board, which we will see later. I put the four sensor's boards in this 3d printed box, with a piece of acrylic on top.

Down here you can find all the 3d printable files.

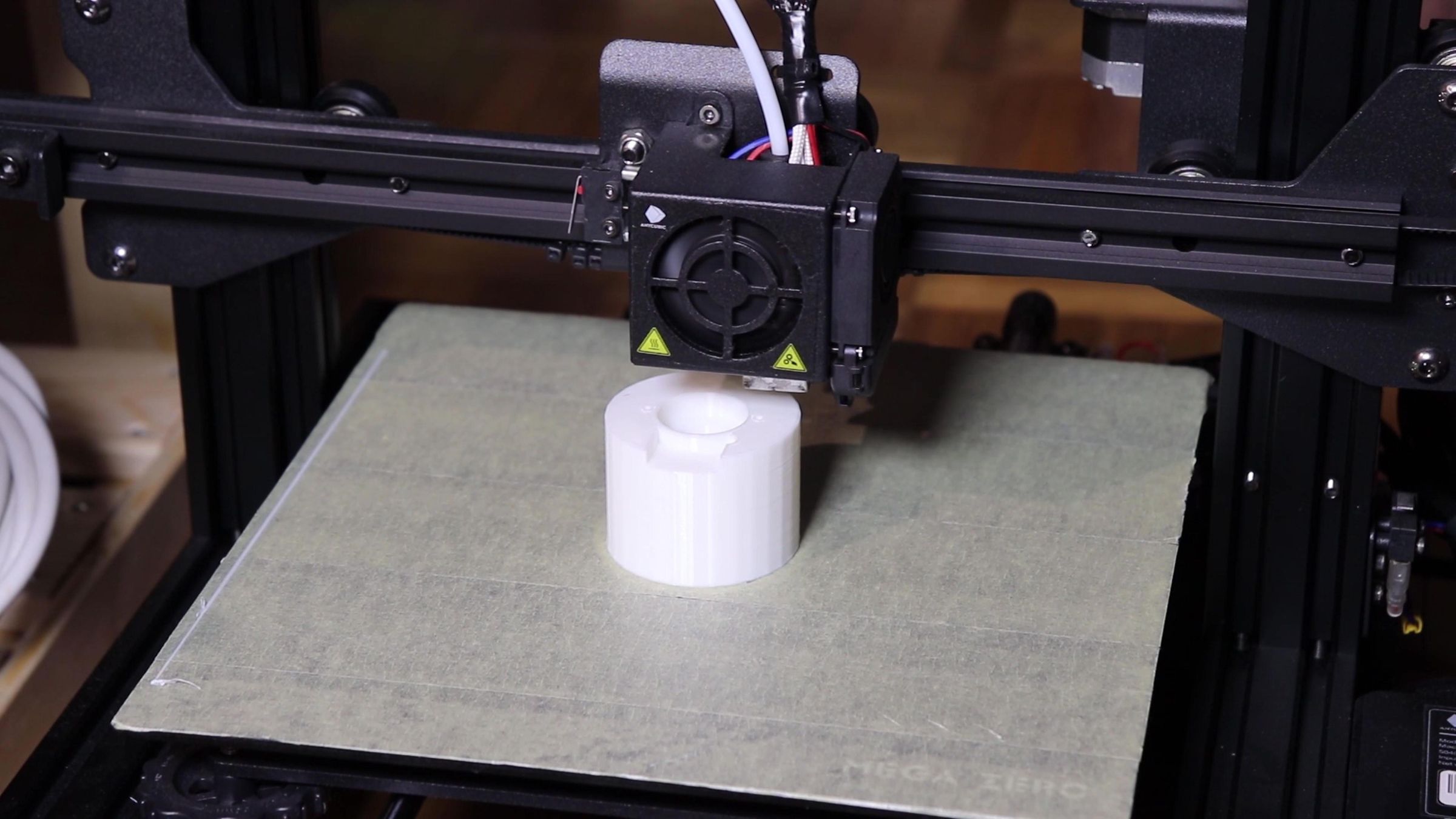

Now comes the anemometer. I already talked about this in a video last year, which you can find here . I also made the anemometer with the 3D printer, and below you can find the STL files. The anemometer is composed of the base and the rotating part. For the rotating part, the cups and the center piece are printed separately and assembled with 3 screws. Inside the anemometer there is a magnetic hall sensor on the base and a magnet on the rotating part. The sensor sends out an impulse at each revolution. From the revolutions per minute we can calculate the wind speed, but at the moment I don't know what number I have to multiply the revolutions per minute by to get km/h. If someone knows how to calculate it, please write those calculations in the comments below. By what I found online, a rough (an probably wrong) estimation is to multiply the rpm by 0,18.

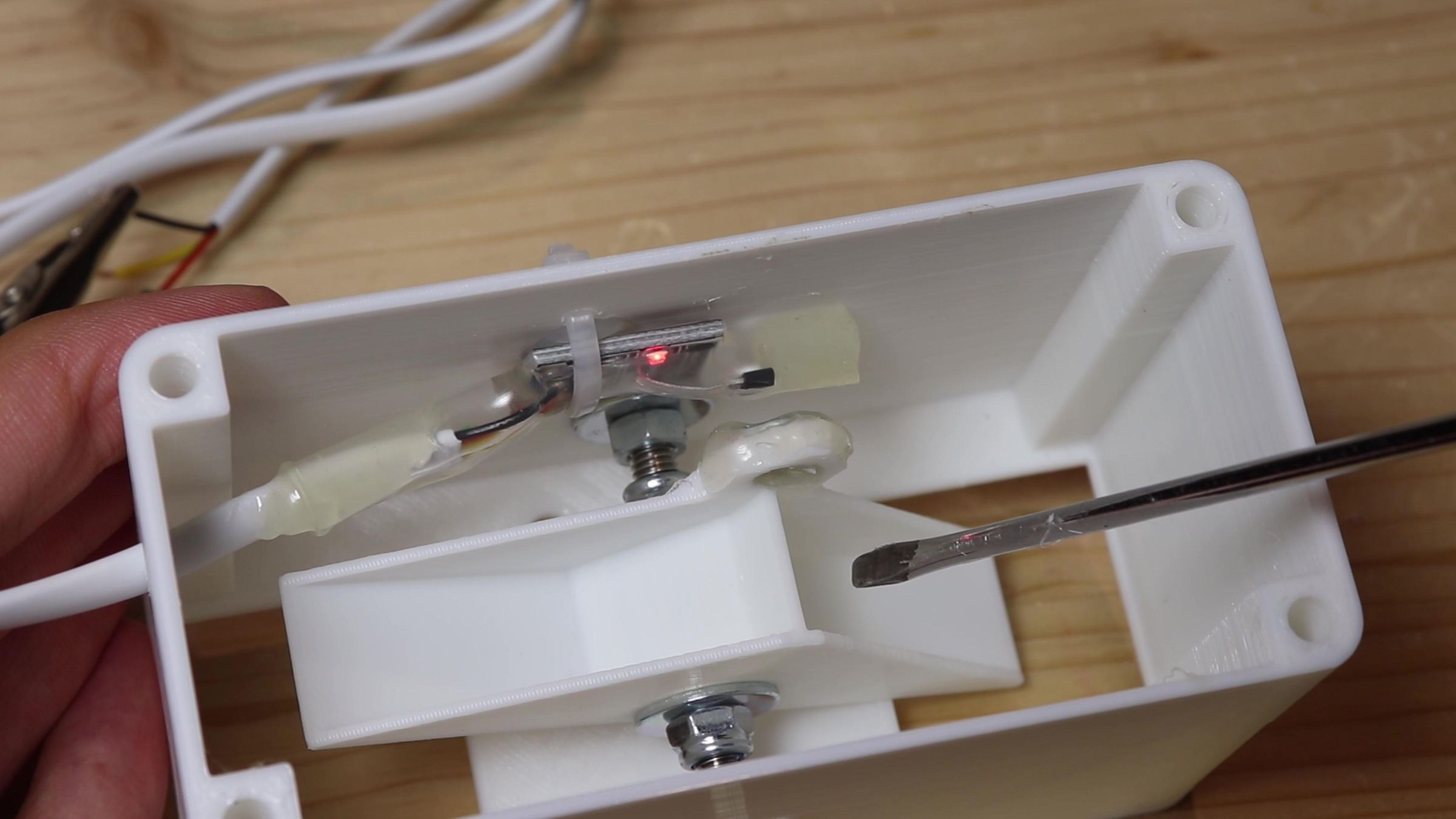

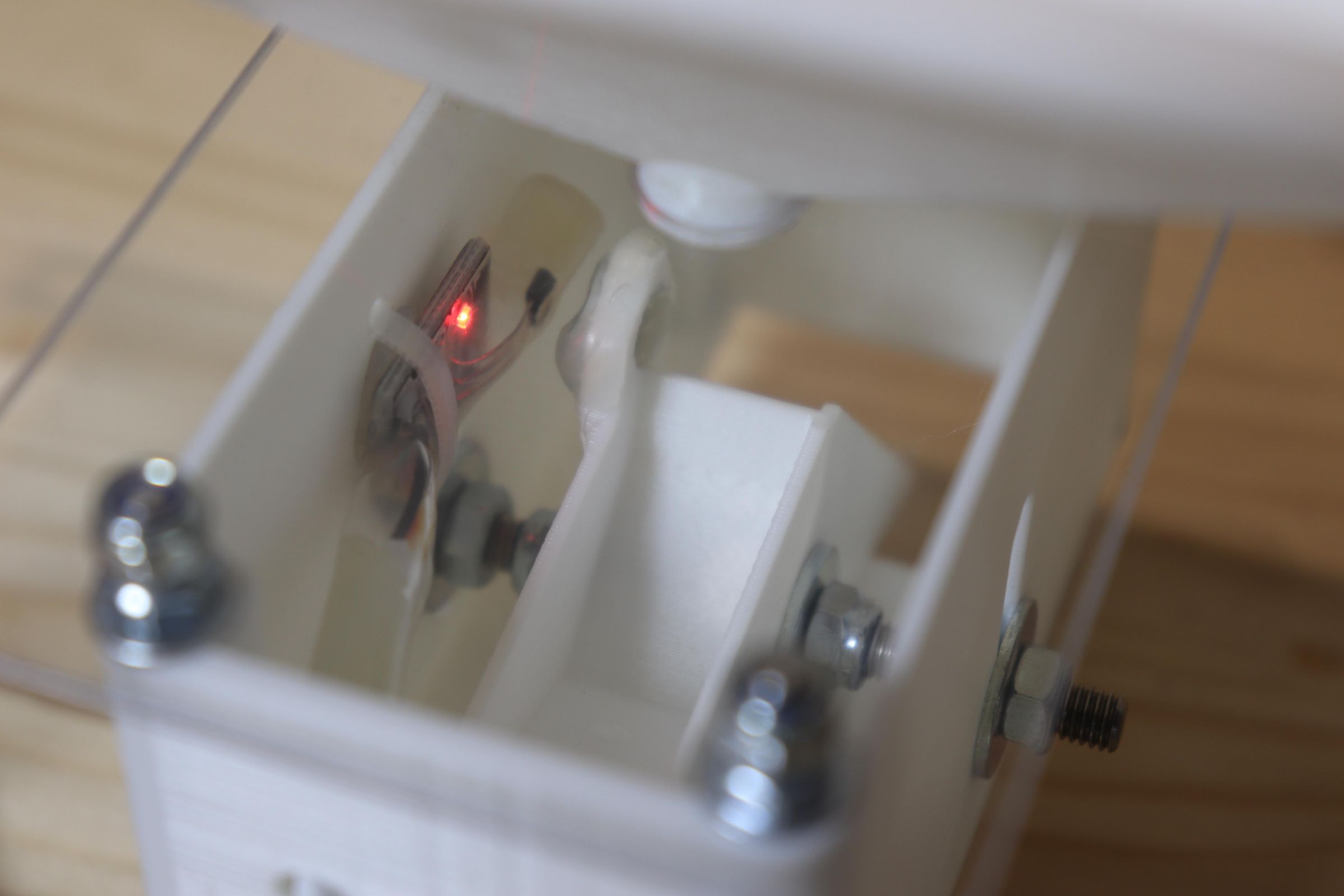

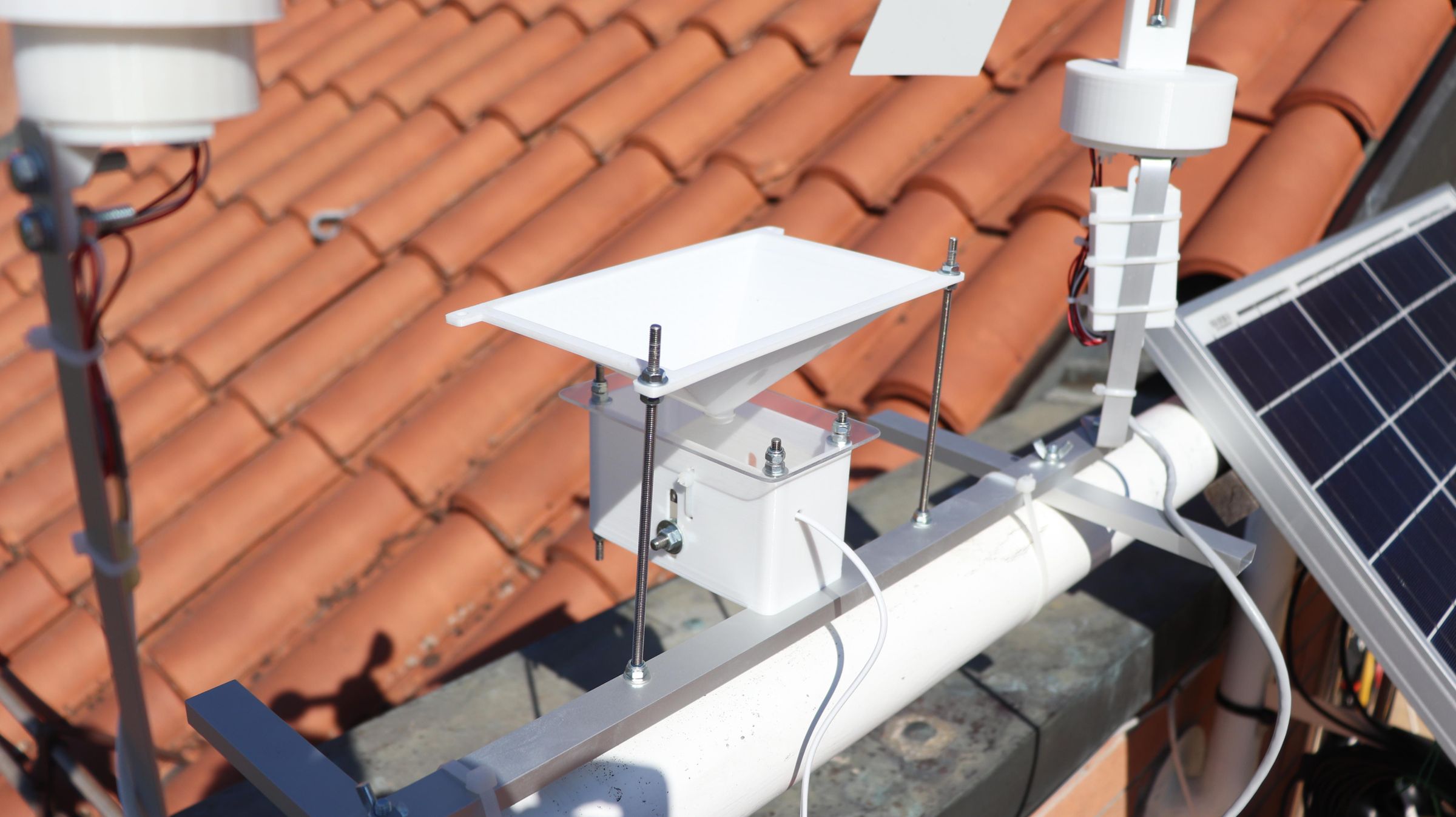

Lastly, there is the rain gauge. I showed this in a previous Instructable , so you can find all the details there, including the 3D printable files. However, this also uses a magnetic sensor, and each change of state of the sensor means that a certain amount of water has passed through. The rain is measured in mm of height.

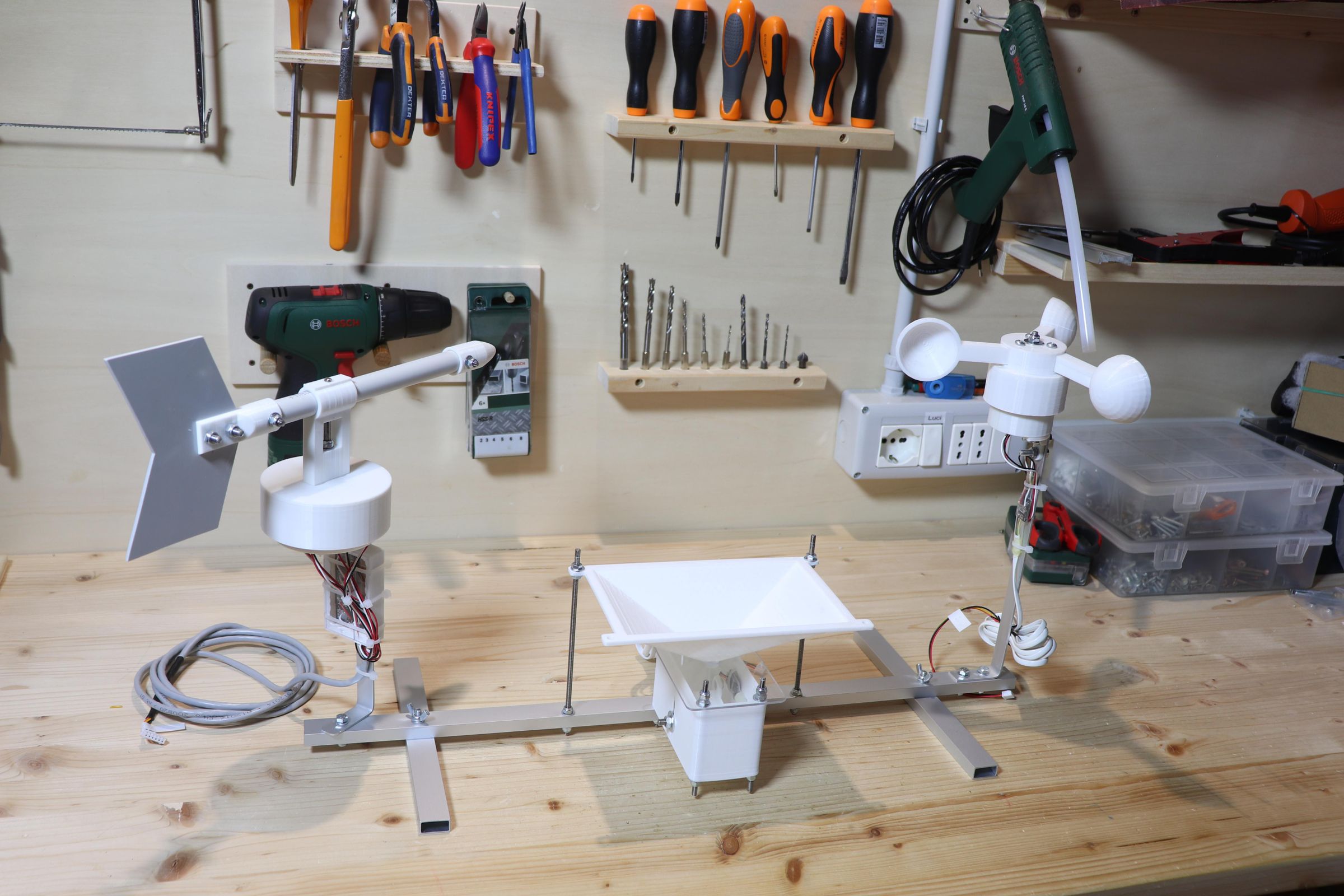

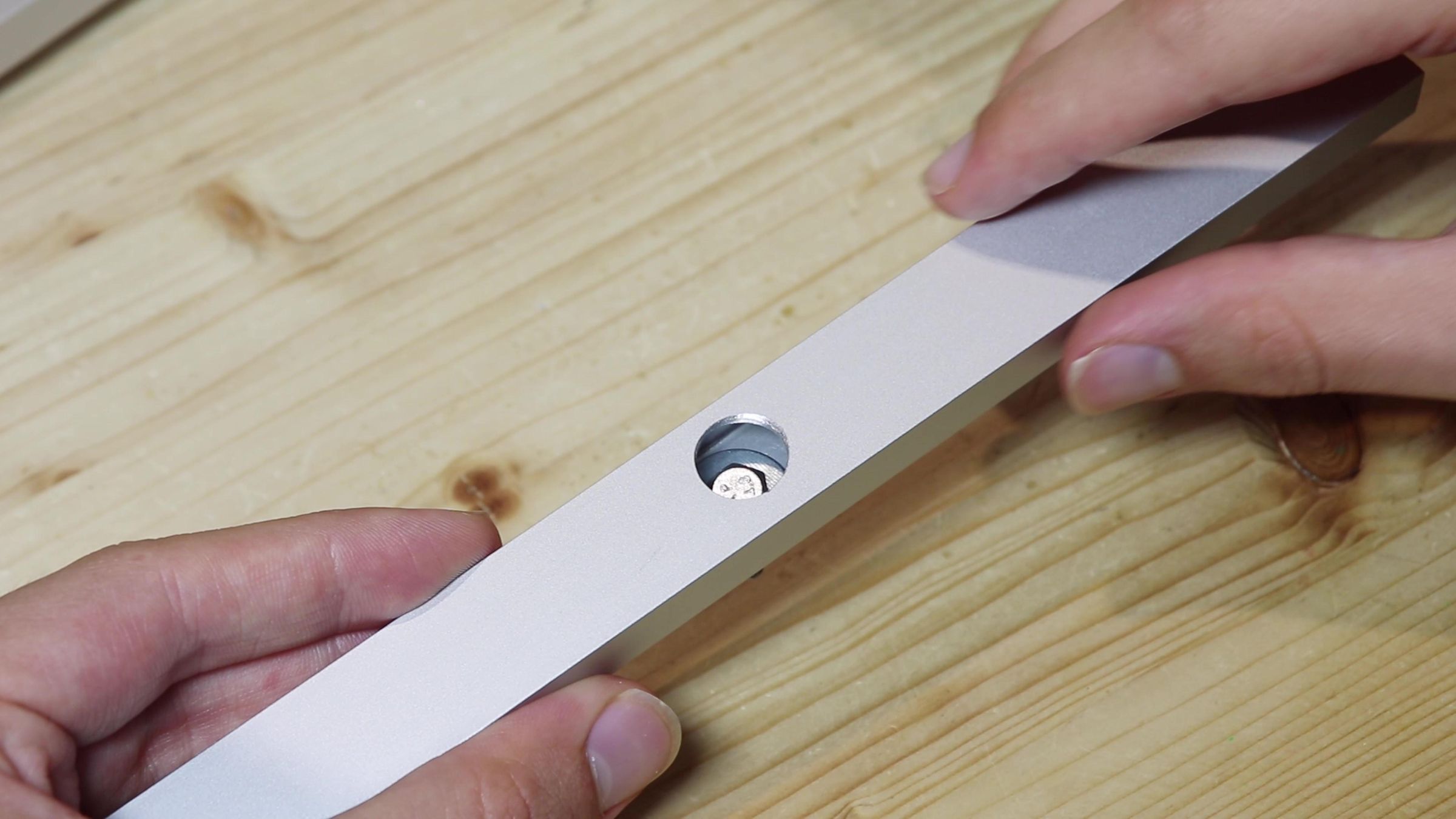

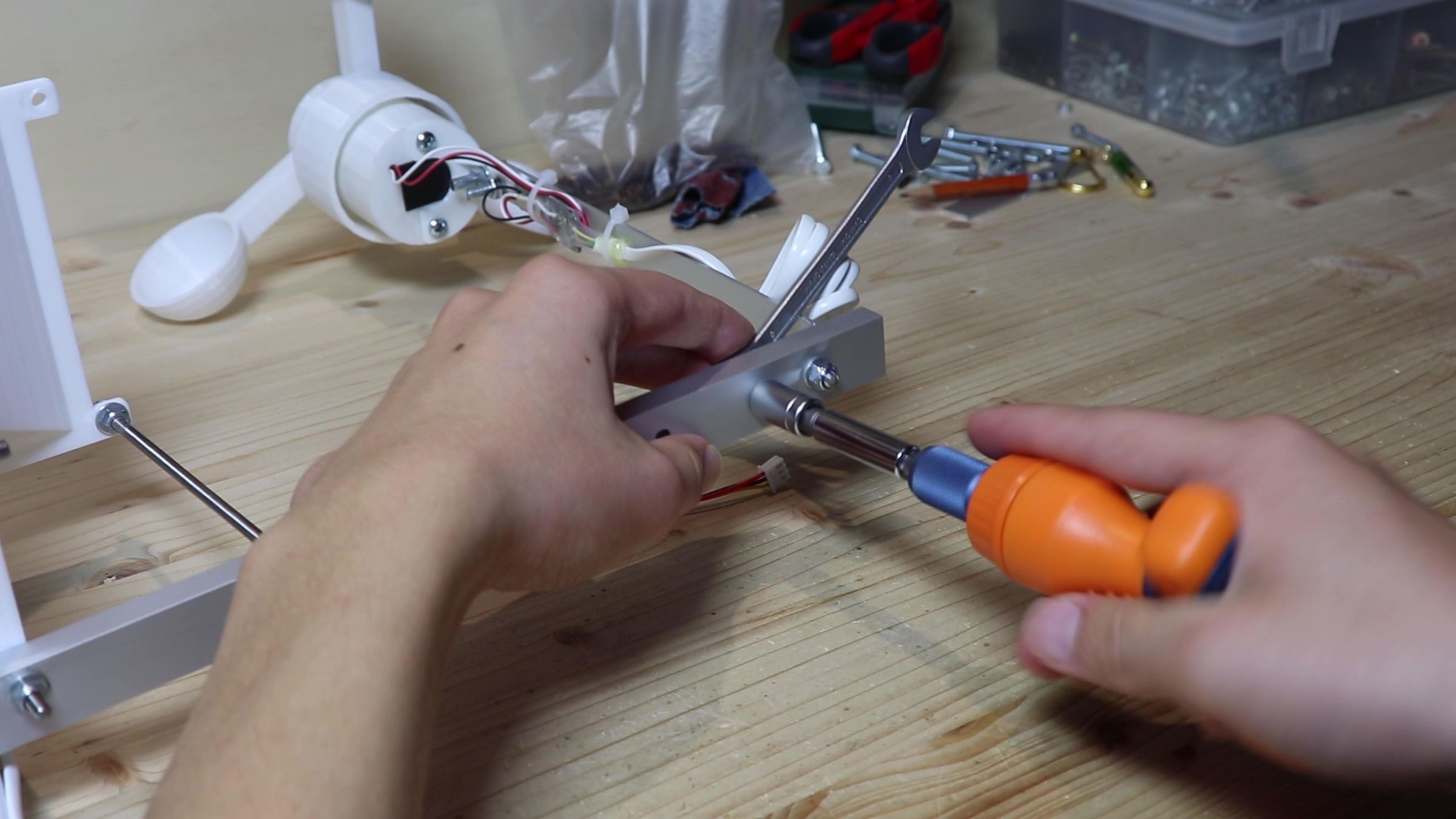

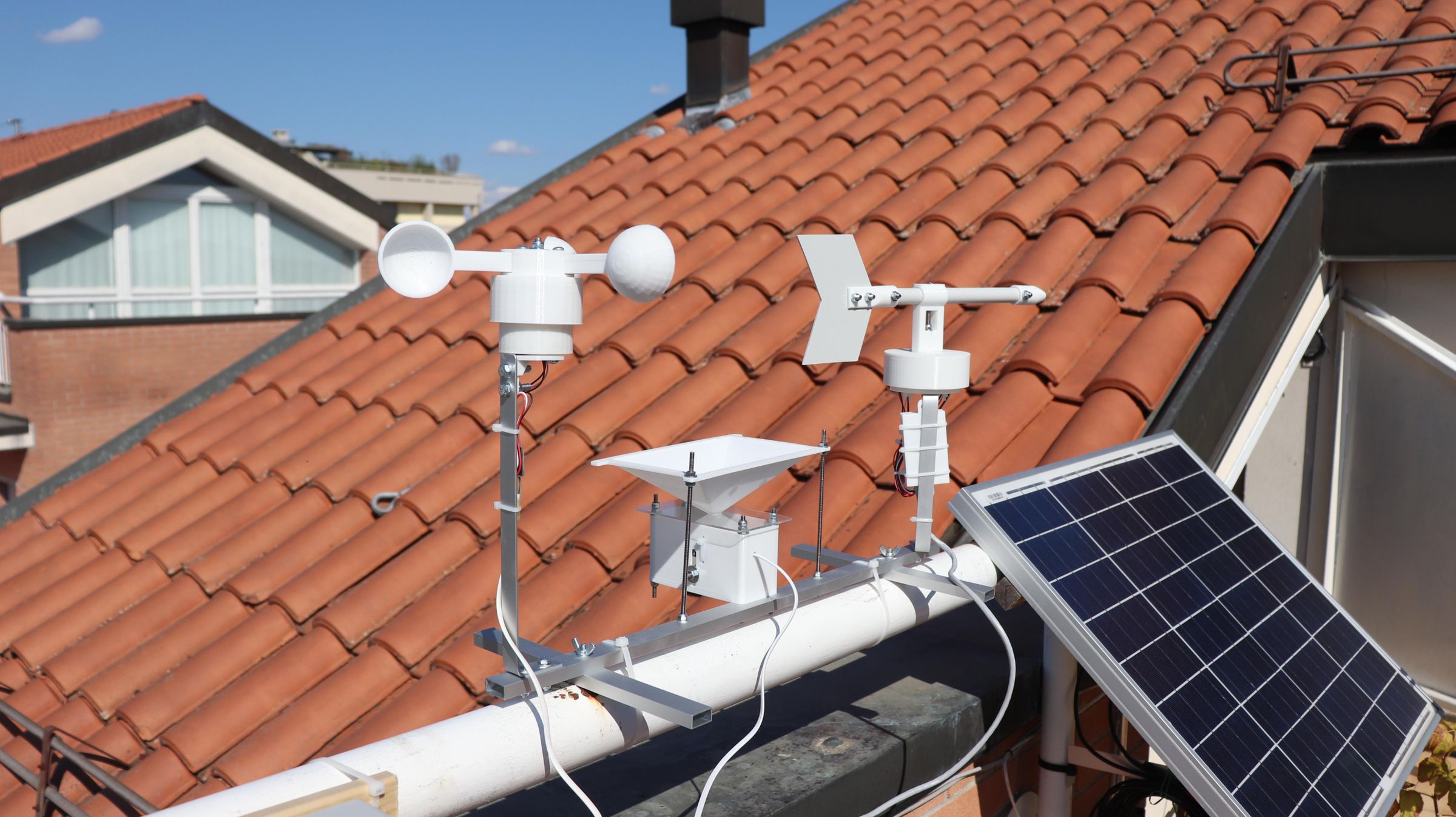

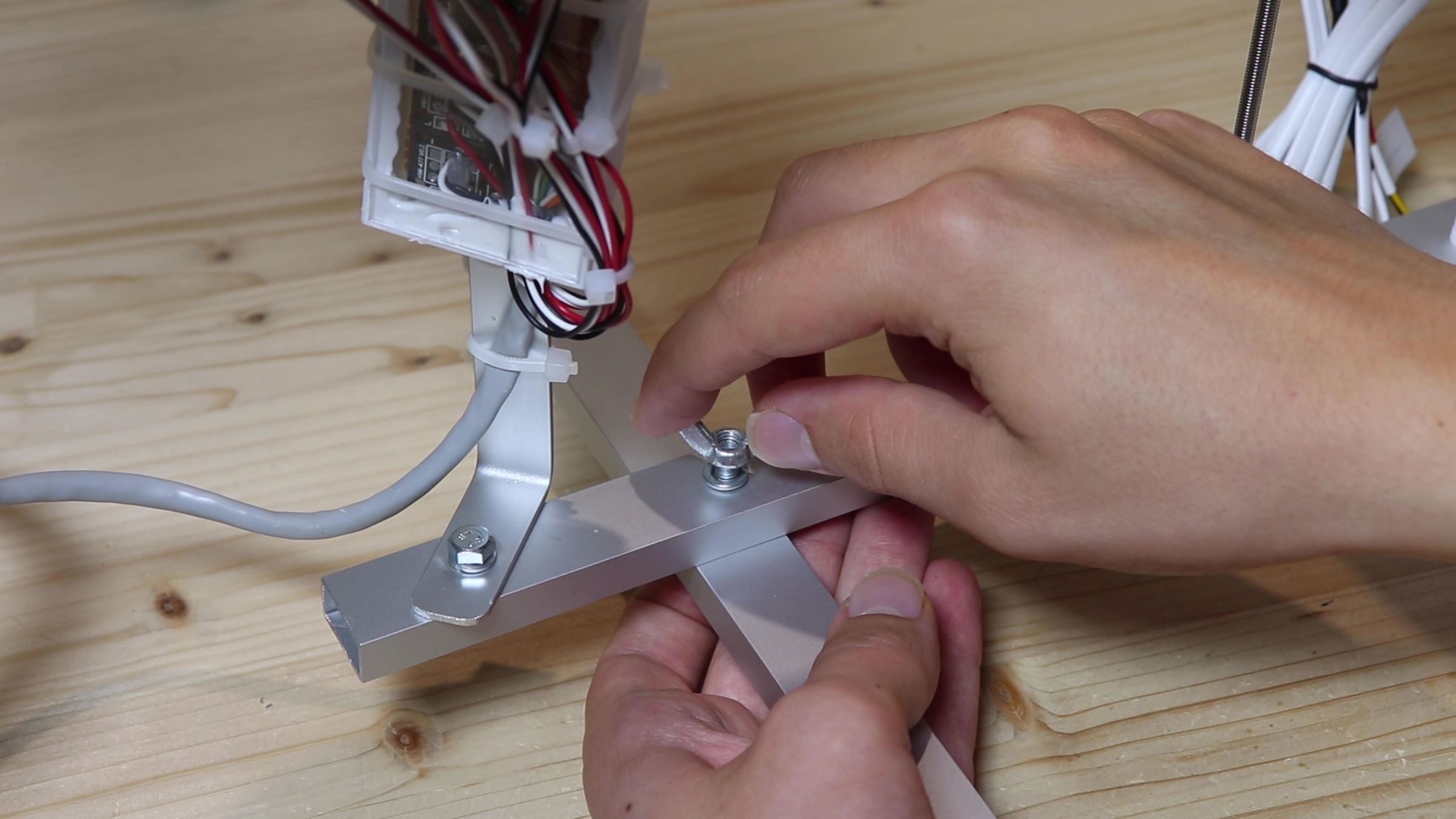

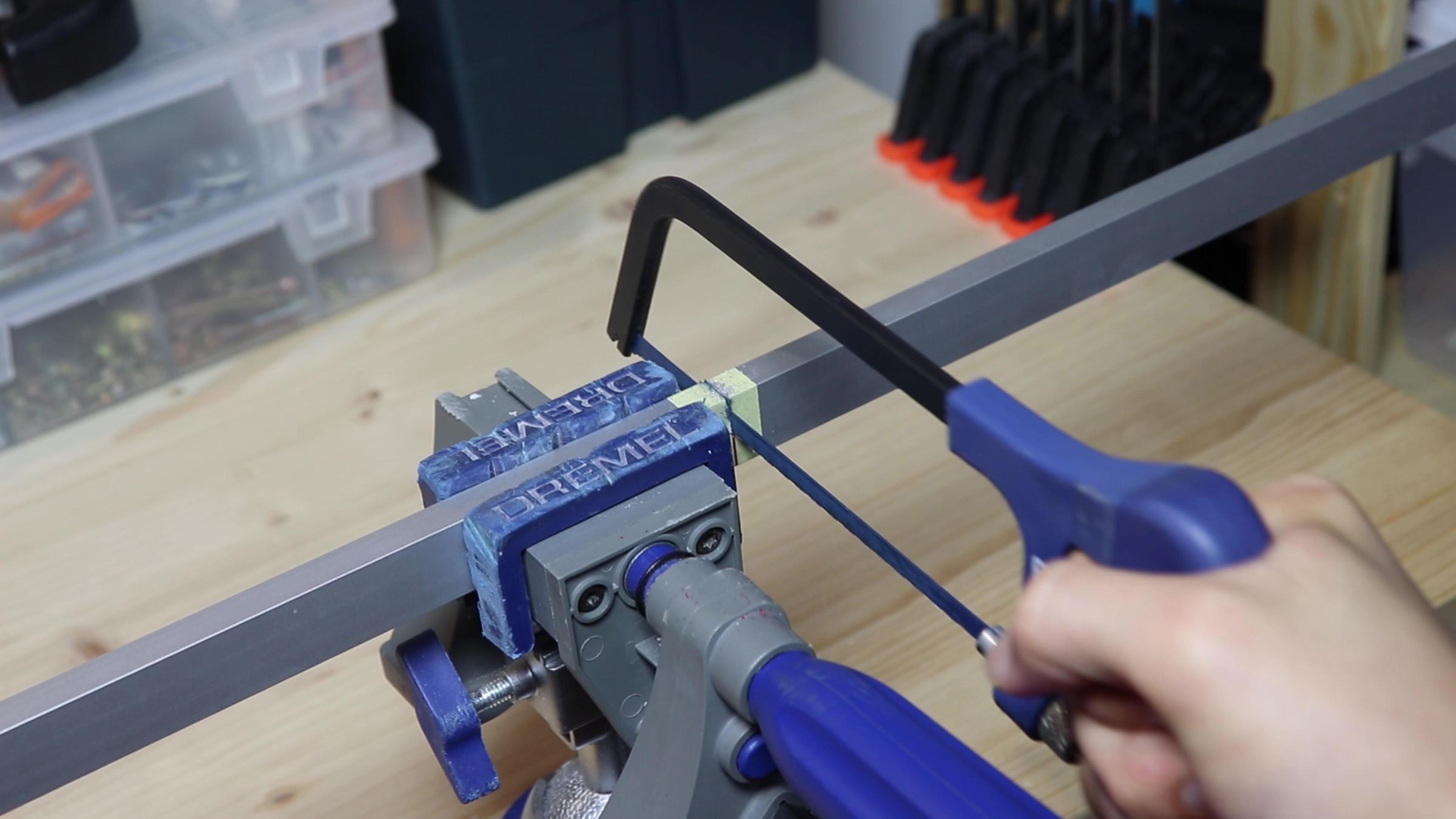

To make it easier to mount the weather station in it's final collocation, I will put the various sensors on a single structure. To make it, I used a rectangular aluminium profile. In the centre I fixed the rain gauge, and on the two sides I put the anemometer and the wind vane. To hold everything up I cut two more pieces of aluminium profile. On one side of them I made this nice big hole, which allows me to fix them without having the bolt sticking out underneath. After bolting everything togheter, this is the result. This step is optional, because if you want you can mount the single sensors on a structure you already have, for example the side of a roof.

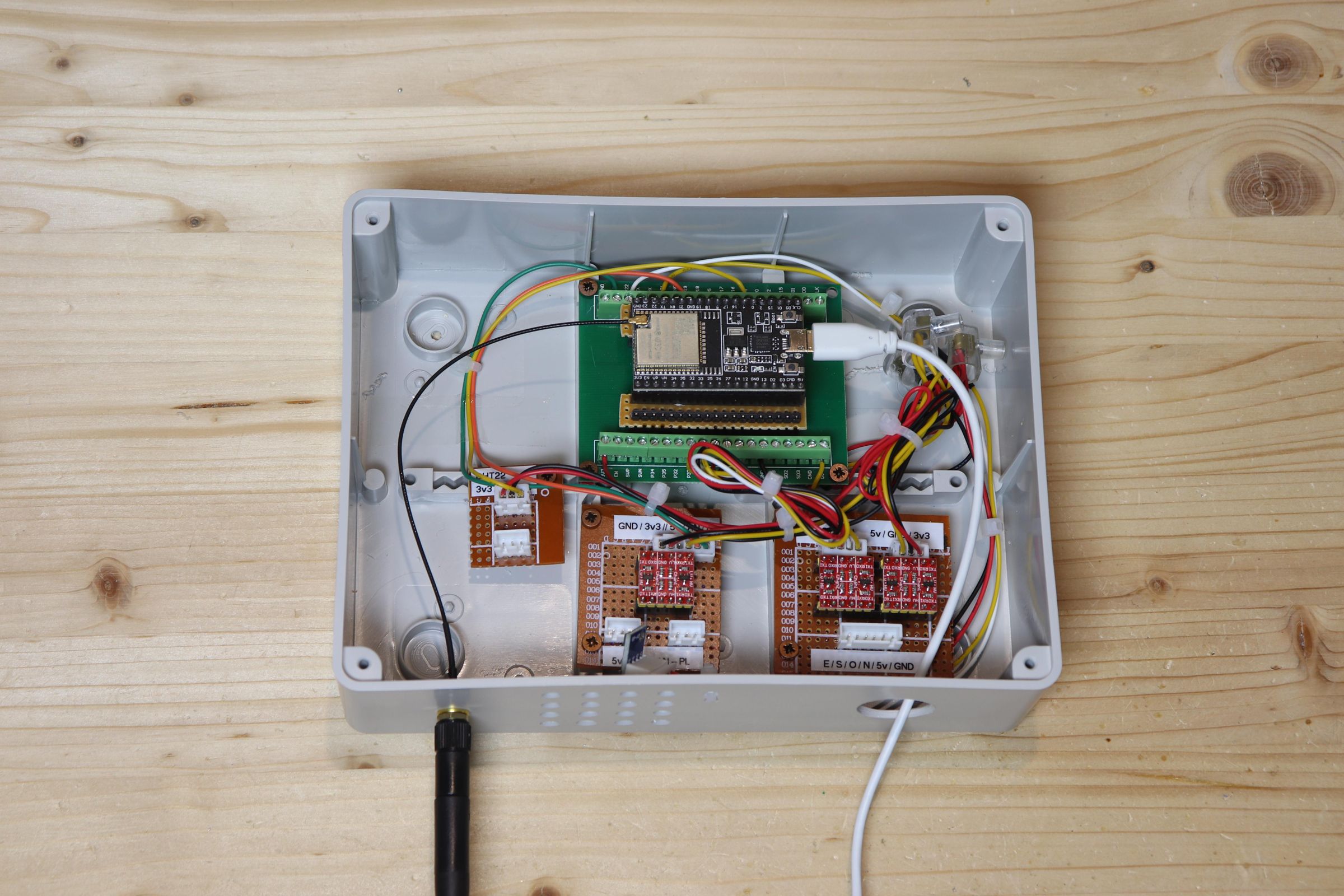

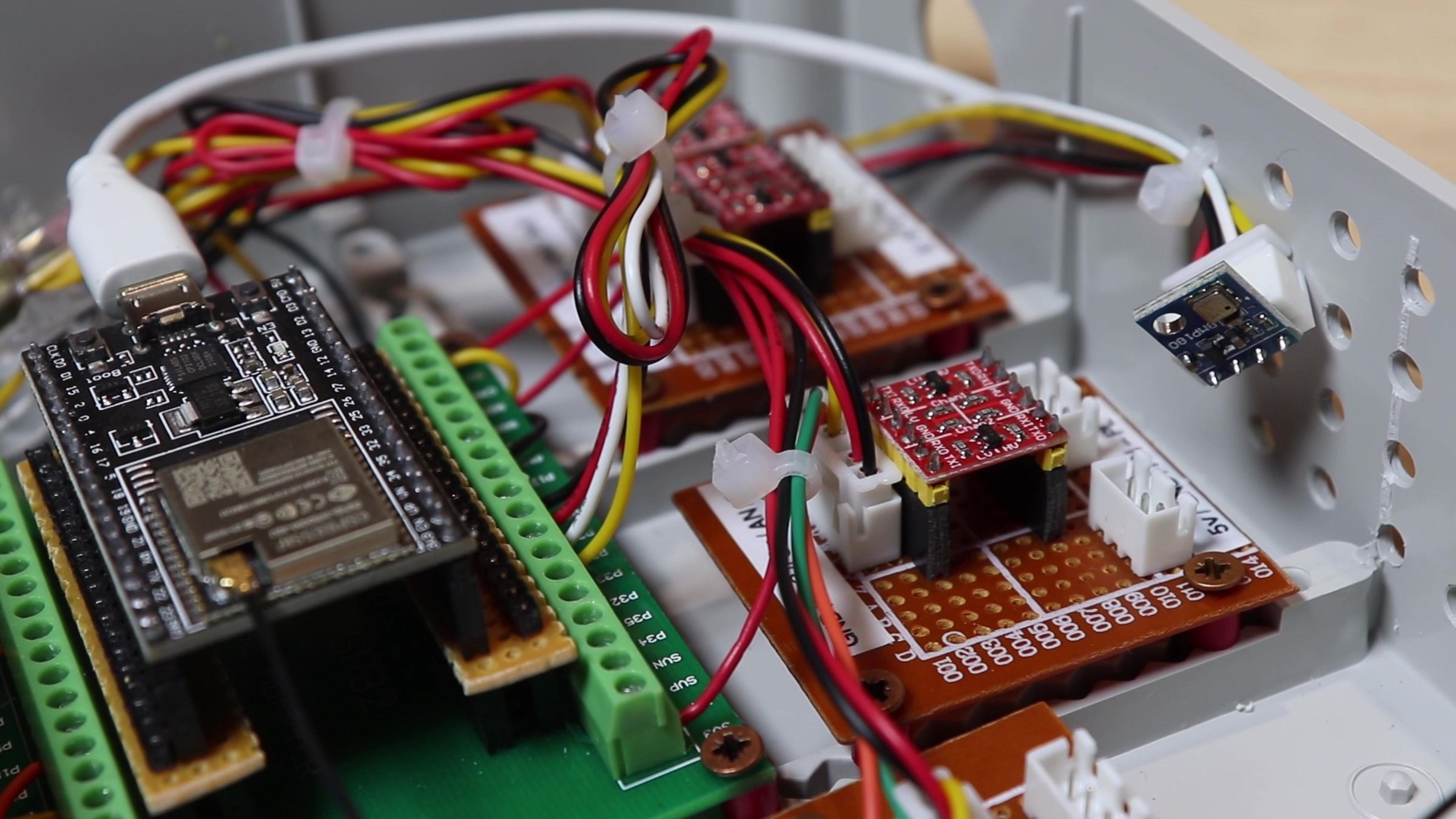

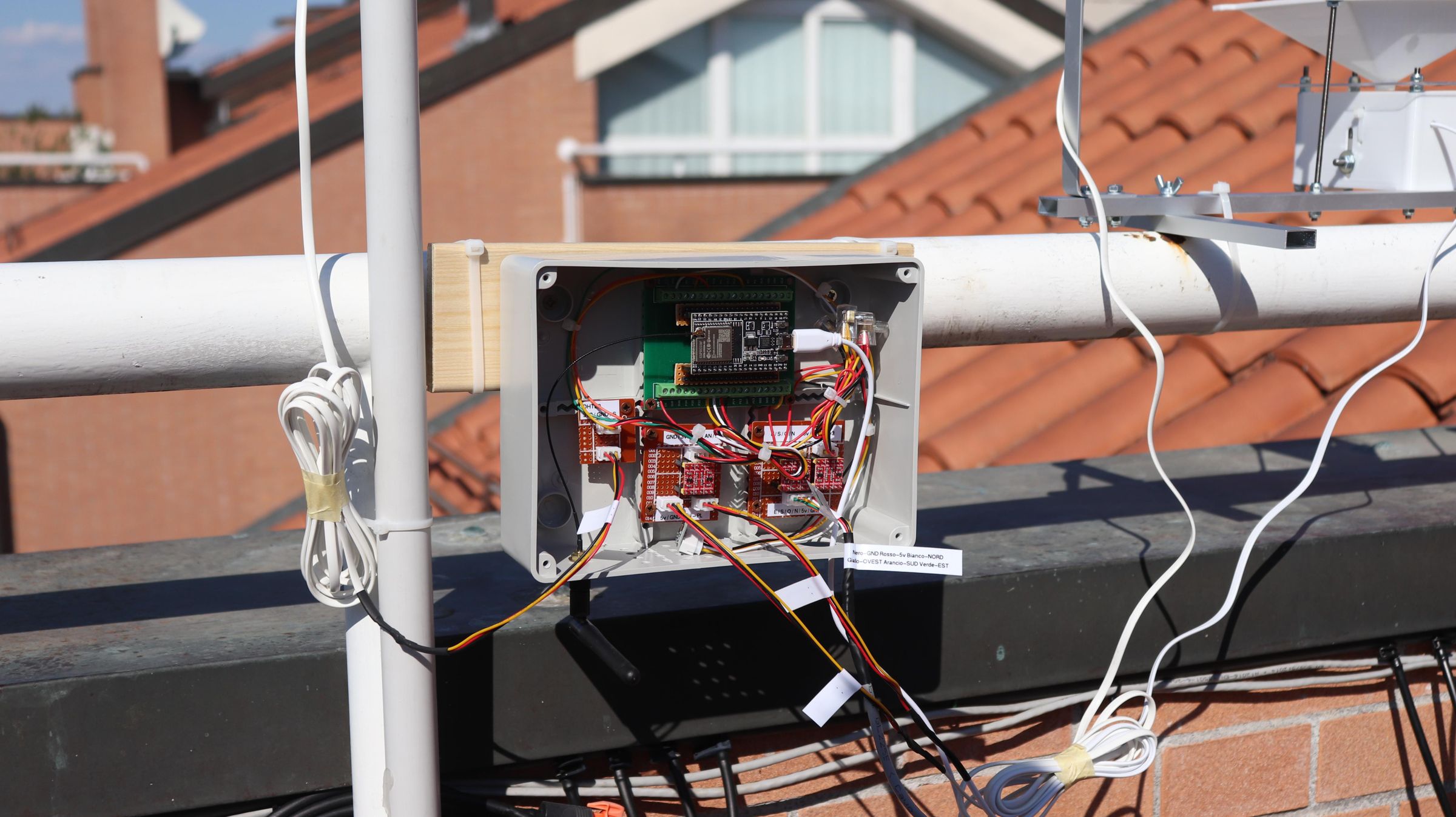

But now we have all the electronics, which will be in this junction box. To make the connections easier, I bought this board that carries the ESP32 pins on terminals. I don't know why, but my ESP32 doesn't fit on this board. So I had to make adapters with a perfboard to move the pins. I screwed the ESP32 in the box, and on the underside I put the antenna for the WiFi connection.

I almost forgot about the atmospheric pressure sensor, which is the BMP180. I put it here in the box, and to let the air pass through I made this grid on the underside. This sensor communicates via i2c, so it needs two wires to connect to the ESP32, other than 3,3v and GND.

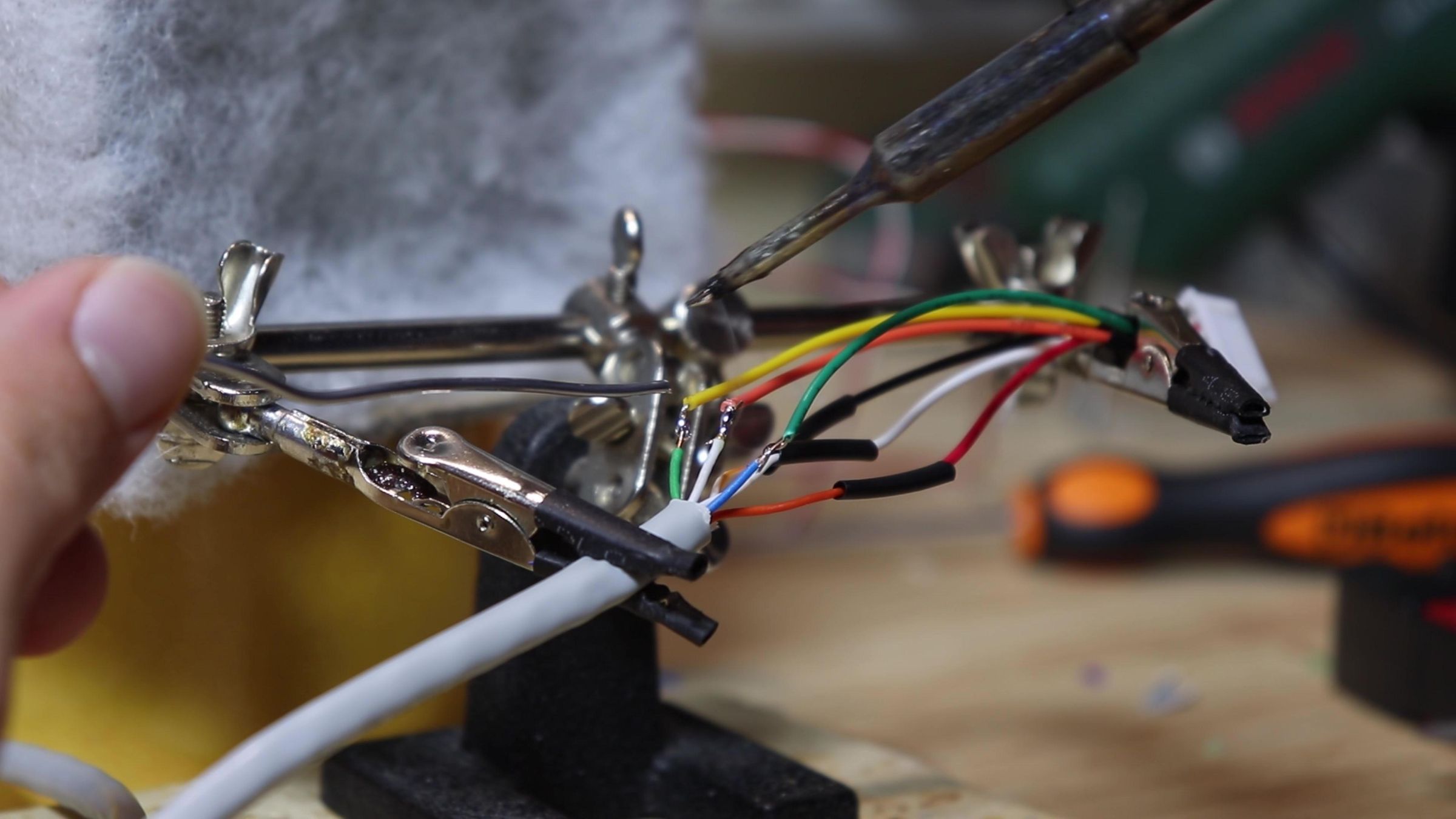

Now we have all the other sensors coming in here with their wires. The temperature sensor has only one signal wire, and it connects directly to an ESP32's pin. The problem are the hall sensors of the anemometer, rain gauge and wind vane, which operate at 5v, while the ESP32 operates at 3.3v. So to convert the signal from 5v to 3.3v I will use some level converters, like these. To make everything neater, I soldered them onto perfboards. To make the connections between the boards and the ESP32 I used JST connectors, which are more solid than classic jumpers. Finally, I joined together the wires for gnd, 5v and 3.3v, and tidied up the wires with cable ties.

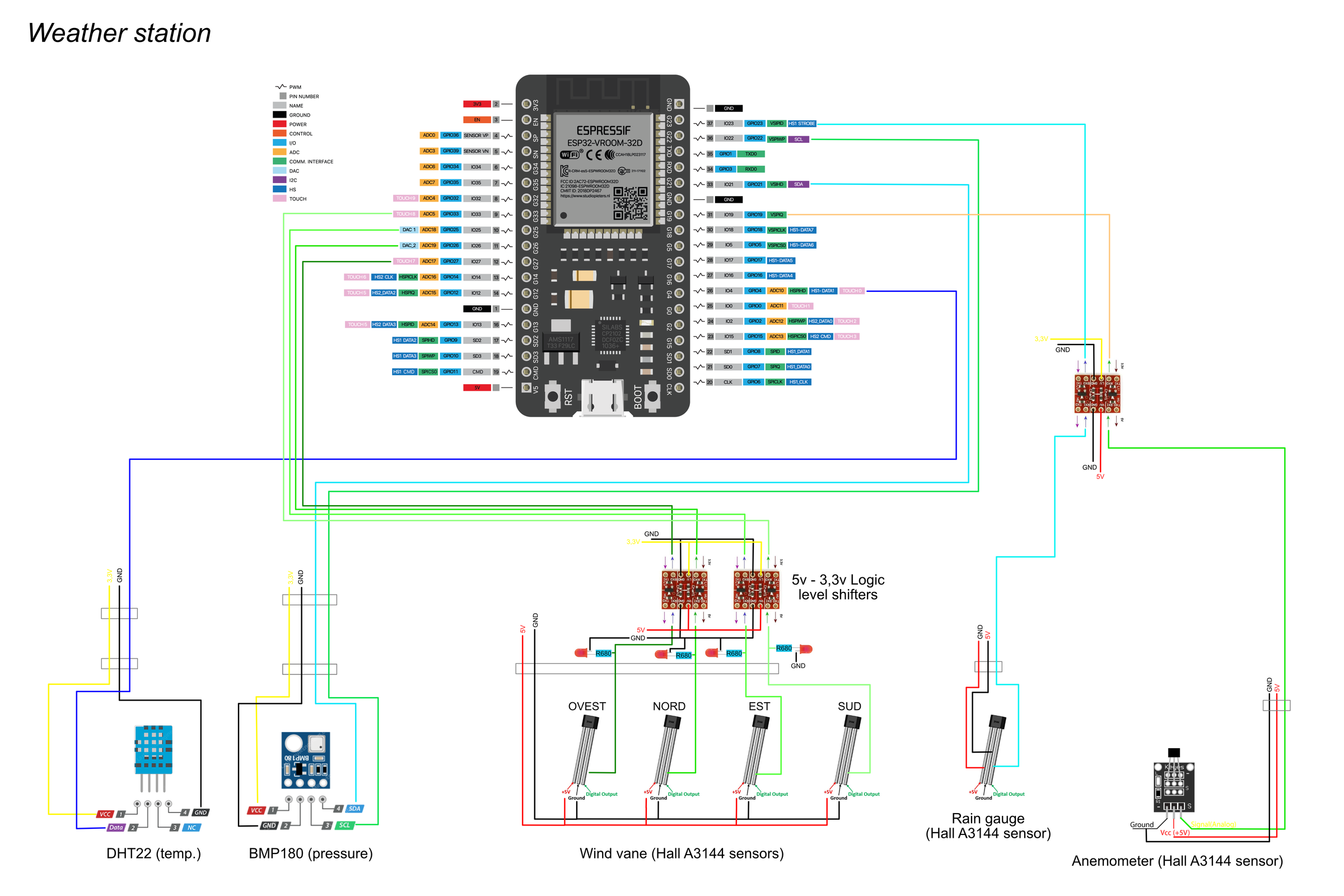

Above you can find the schematics for all the electrical connections for the sensors.

The weather station will be connected to Home Assistant, which is a kind of local server for controlling the various home automation devices we have in our home. Home Assistant can be run on a Raspberry Pi or on a computer on a Virtual Machine, like I do. To connect the weather station to Home Assistant I will use ESPhome, which allows you to connect the ESP32 to Home Assistant. After setting everything up, I can see the weather station data in real time, either from the web page or the app. In addition, the data is recorded, and I can also see graphs of the long-term trend.

Step by step:

• Install Home Assistant on a Raspberry or on a computer with a Virtual Machine, if you haven't already done it (there are many tutorials online for the different systems)
• From the official add-on store, install ESPhome
• Add a new device in ESPhome and select ESP32
• In the space for the ESPhome code, paste the following code after the one provided by ESPhome, and insert wifi ssid and password where needed

i2c:
  sda: 21
  scl: 22
  scan: true
  id: bus_a


sensor:
  - platform: dht
    pin: 4
    temperature:
      name: "Temperatura esterna"
    humidity:
      name: "Umidità esterna"
    update_interval: 10s


  - platform: pulse_counter
    pin: 23
    count_mode:
      rising_edge: INCREMENT
      falling_edge: INCREMENT
    unit_of_measurement: 'mm'
    name: 'Pioggia istantanea'
    filters:
      - multiply: 0.173


    total:
      unit_of_measurement: 'mm'
      name: 'Pioggia'
      accuracy_decimals: 3
      filters:
        - multiply: 0.173
    update_interval: 5s


  - platform: bmp085
    temperature:
      name: "Temperatura centralina"
    pressure:
      name: "Pressione esterna"
    update_interval: 10s


  - platform: pulse_counter
    pin: 19
    unit_of_measurement: 'Km/h'
    name: 'Velocità del vento'
    filters:
      - multiply: 0.18
    update_interval: 5s


  - platform: uptime
    name: Uptime

binary_sensor:
  - platform: gpio
    pin: 33
    name: "Vento direzione NORD"

  - platform: gpio
    pin: 25
    name: "Vento direzione OVEST"

  - platform: gpio
    pin: 26
    name: "Vento direzione SUD"

  - platform: gpio
    pin: 27
    name: "Vento direzione EST"

• Click install and on plug into computer , and connect the ESP32 to the computer with the micro usb cable
• Follow the instructions on screen to install the code on the ESP32

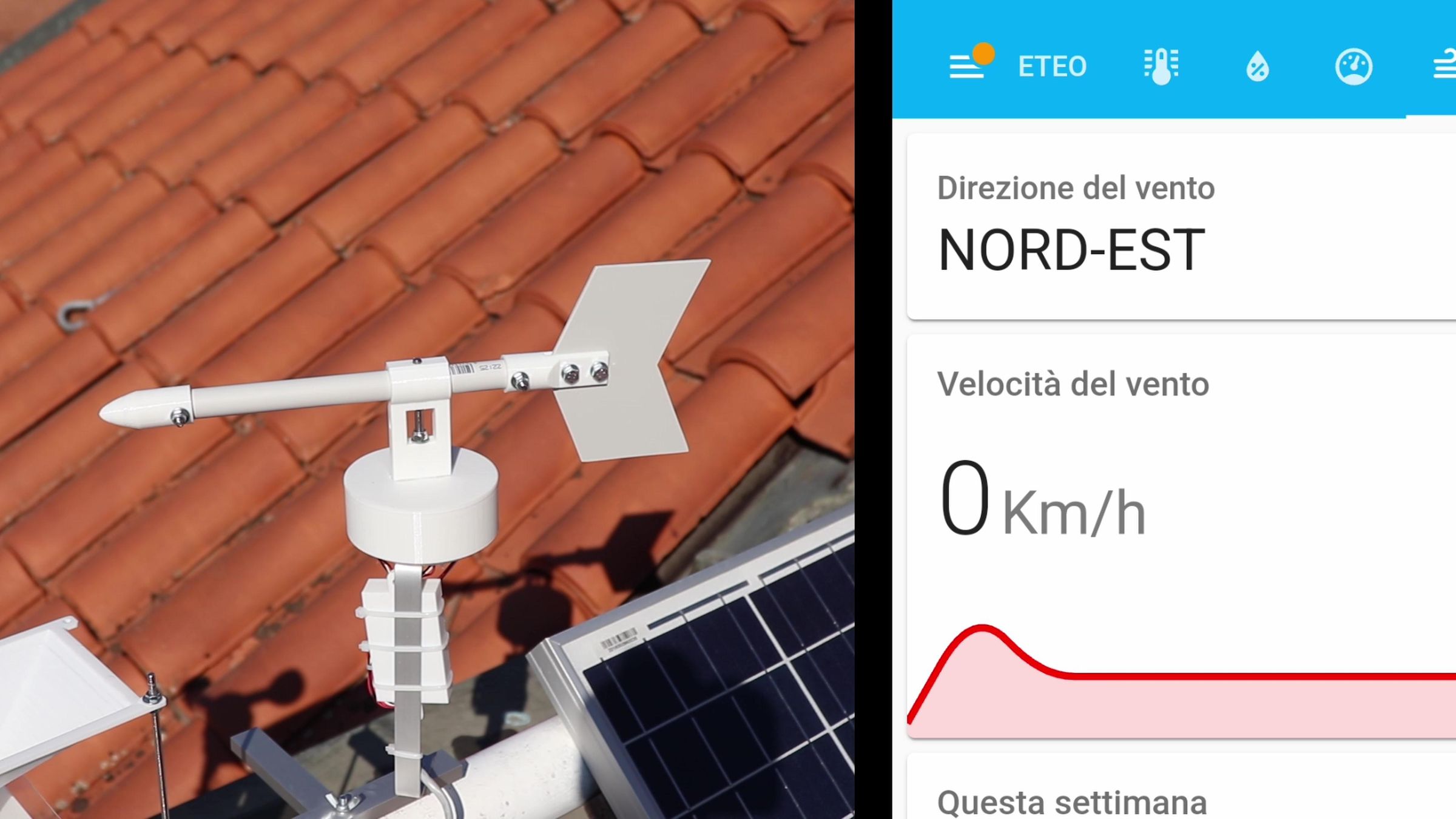

The wind vane gives the states of the four sensors separately as binary sensors (on or off). To convert these four values to a more esay to read format (e.g. north or south-west ) we have to create a custom sensor in Home Assistant. There is some code but it is very esay.

• To create the custom sensor, we have to edit the configuration.yaml fiel
• For that we need to have the file editor plugin installed or something equivalent
• Paste the following code under sensor:

sensor:
- platform: template
  sensors:
    direzione_vento:
      friendly_name: Wind direction
      value_template: >-
        {% if states('binary_sensor.vento_direzione_ovest') == 'off' and states('binary_sensor.vento_direzione_nord') == 'off' %}
        NORTH-WEST
        {% elif states('binary_sensor.vento_direzione_est') == 'off' and states('binary_sensor.vento_direzione_nord') == 'off' %}
        NORTH-EAST
        {% elif states('binary_sensor.vento_direzione_ovest') == 'off' and states('binary_sensor.vento_direzione_sud') == 'off' %}
        SOUTH-WEST
        {% elif states('binary_sensor.vento_direzione_est') == 'off' and states('binary_sensor.vento_direzione_sud') == 'off' %}
        SOUTH-EAST
        {% elif states('binary_sensor.vento_direzione_nord') == 'off' %}
        NORTH
        {% elif states('binary_sensor.vento_direzione_est') == 'off' %}
        EAST
        {% elif states('binary_sensor.vento_direzione_sud') == 'off' %}
        SOUTH
        {% elif states('binary_sensor.vento_direzione_ovest') == 'off' %}
        WEST
        {% endif %}

• Then, check the configuration and if it's valid reboot Home Assistant.

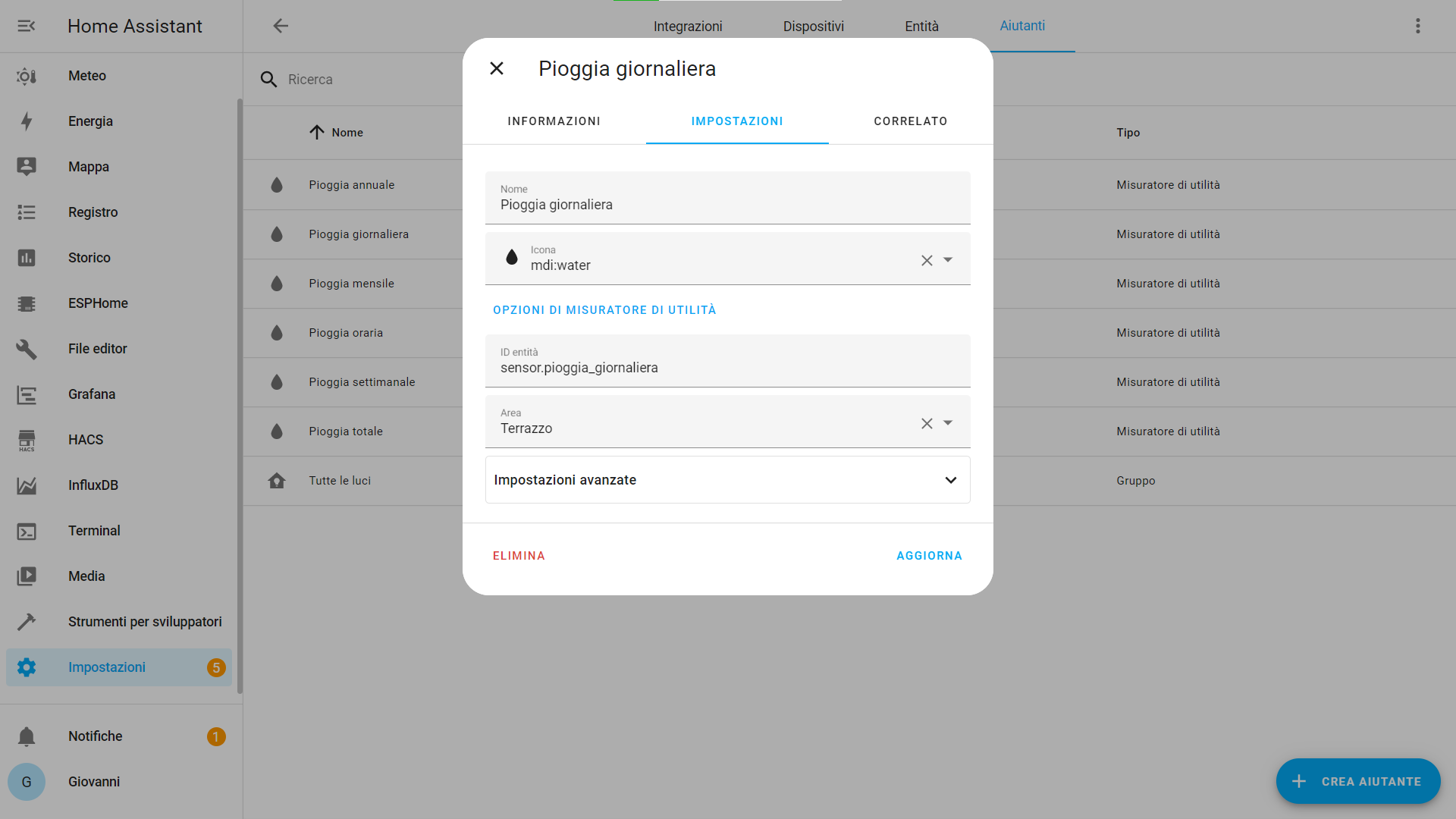

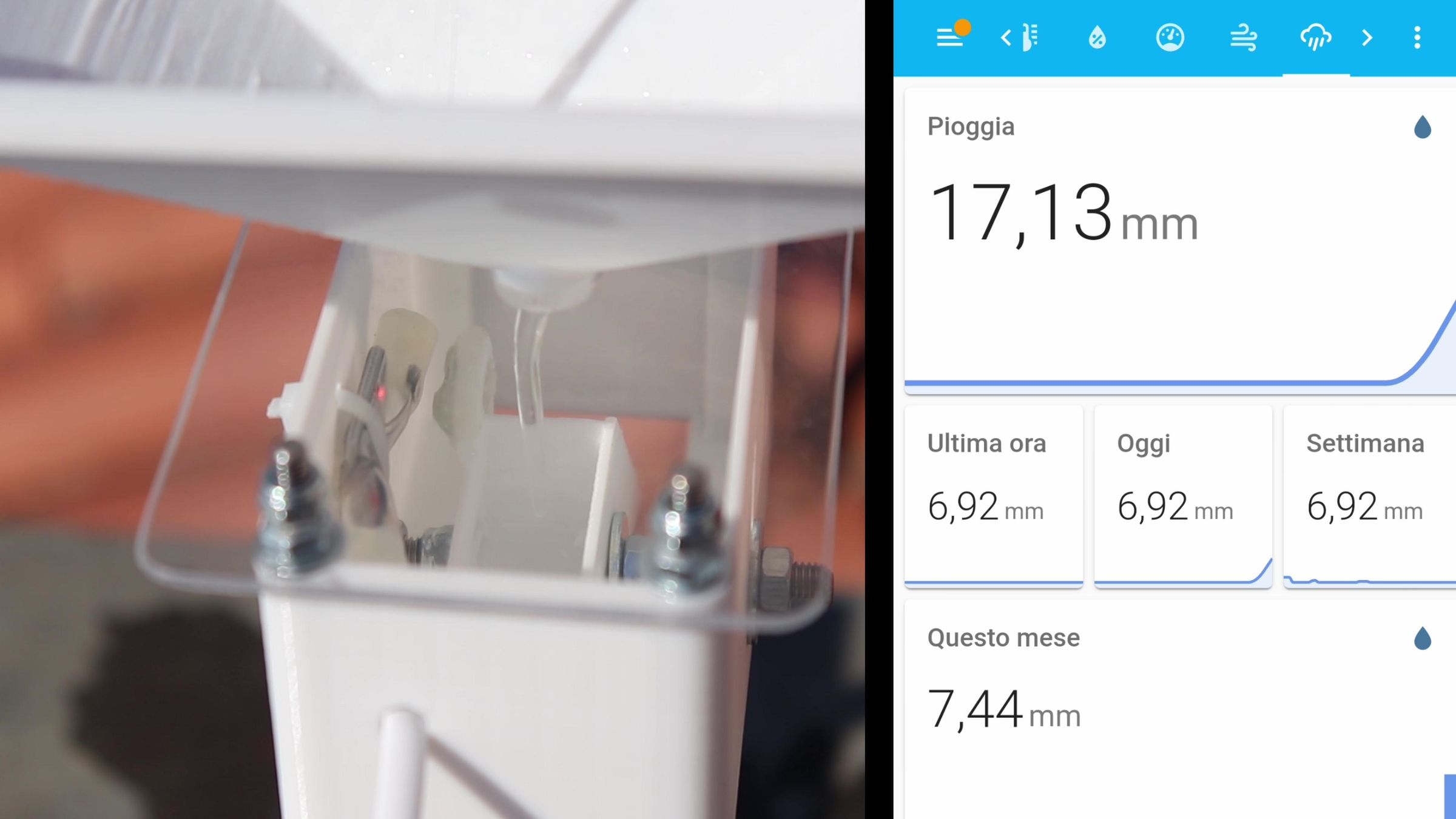

The rain gauge sends via ESPhome the total of rain, which increases at every step. If the ESP32 is rebooted, this value goes to zero. So, to have a value that can only increase and that reset when a certain amount of time has passed, we can use a utility meter , which is provided by Home Assistant. With that we can show in the dashboard the total rain, the rain of that day and so on.

• Go to devices and then helpers
• Create a new hepler and select utility meter
• Select the rain gauge entity and insert the name of the conuter
• Select every how much time reset the counter (e.g. 24h or 1 month)

Create other counters for every time interval you want to show the amount of rain for.

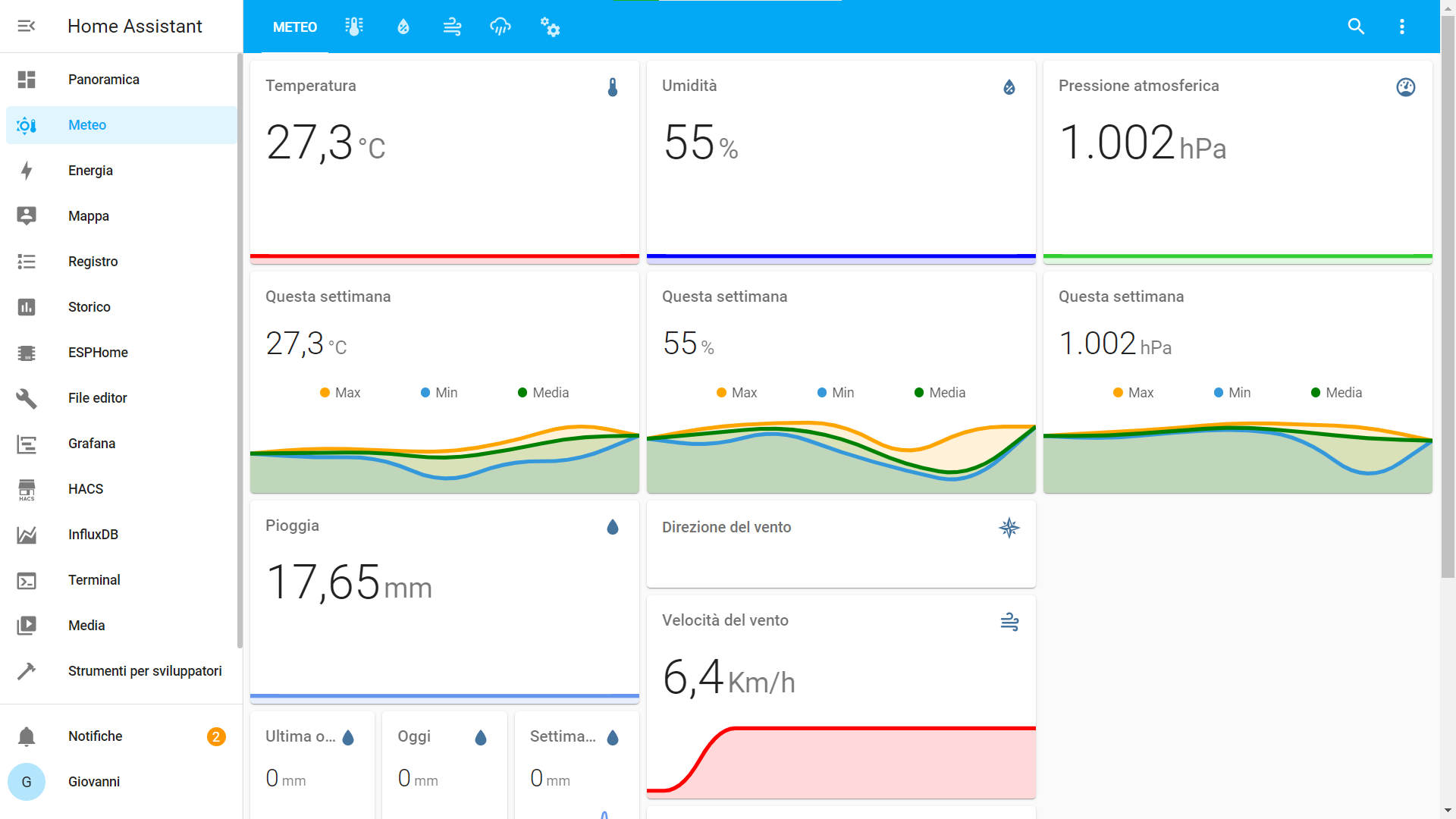

Once the weather station is finally online, we can create the custom dashboard to show the sensors readings and graphs. For graphs I suggest to use the mini graph card integration, which can be installed via the Home Assistant Community Store. At the top you can find a screenshot of my dashboard, if you want to get ideas for your dashboard. Below i uploaded the code file of my dashboard, if you want to edit it via the text editor.

To record the data you can configure a database in Home Assistant (recorder integration). I haven't posted details on how to configure it because I'm still learing a lot about Home Assistant and I haven't finished configuring it.

To see the data from your smartphone you can download the Home Assistant app. To connect from outside the local network I'm using the Nabu Casa Cloud, which is the simplest solution but it's not free. There are other solutions but they are not totally safe.

This project is done, and I hope you found it interesting. Of course, you can also build some of the sensors and not all of them. If you have any questions, write them here in the comments. If you want to see more details, please check the video that you can find at the top or  here . It is in Italian, but don't worry, it has also english subtitles. Thanks a lot for reading my guide, bye!
