Physical Dimensions

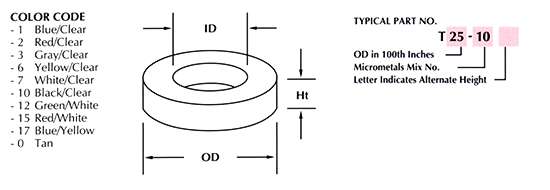

OD(A) = 0.375 in / 9.5 mm +/- 0.25 mm

ID(B) = 0.187 in. / 4.75 mm +/- 0.10 mm

Ht(C) = 0.125 in. / 3.3 mm +/- 0.25 mm

 A
L
=350
 +/- 20 %      uH=(A
L
*Turns
2
)/1000

Temperature Stability (ppm /°C) = 12500

Color Code = shiny black

Application Freq Range

Wideband Transformers 5 - 400 MHz

Power Transformers 0.5 - 30 MHz

RFI Suppression 5 - 500 MHz


Orders and Pricing


www.kitsandparts.com









Freq/L/C/Z/Turns Calculator for
FT37-43



Includes 1 inch / 2.5 cm pig-tails



MHz



uH



pF



ohms



turns



inches - cm














enter uH to Calc number of turns, or

enter number of turns to Calc uH, or

enter two (2) items: MHz, uH, pF, ohms or turns to Calc all values.

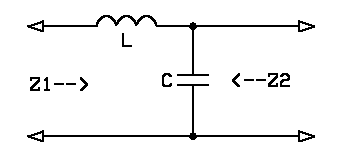

Impedance Matching Network Calculator using a FT37-43 where Z2 > Z1

Enter F(MHz), Z1(Ω) and Z2(Ω) below, then click the Calc button




X
L

 = sqrt ( Z1*Z2 - Z1^2 )
                   X
C
 = Z1*Z2 / X
L


F(MHz)



Z1(Ω)



Z2(Ω)



L(uH)



L(turns)



L(inches - cm)



C(pF)

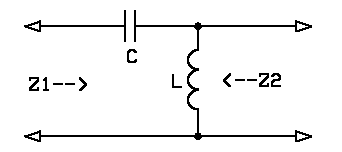

Impedance Matching Network Calculator using a FT37-43 where Z2 > Z1

Enter F(MHz), Z1(Ω) and Z2(Ω) below, then click the Calc button




X
L

 = Z2 * sqrt ( Z1 / (Z2 - Z1) )

 X
C
 = Z1*Z2 / X
L


F(MHz)



Z1(Ω)



Z2(Ω)



L(uH)



(Lturns)



L(inches - cm)



C(pF)















additional rf-impedance-matching-calculator
