Differential signalling
From Wikipedia, the free encyclopedia
This article is about electric signals via wires. For an immunology concept,
see Differential signalling hypothesis.

This article needs additional citations for verification. Please help improve
this article by adding citations to reliable sources. Unsourced material may be
challenged and removed.
Find sources: "Differential signalling" – news · newspapers · books · scholar
· JSTOR (January 2021) (Learn how and when to remove this template message)

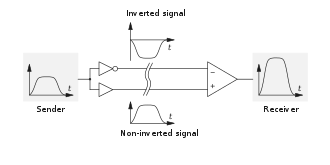

A signal transmitted differentially. Notice the increased amplitude at the
receiving end.










Differential signalling is a method for electrically transmitting
information using two complementary signals. The technique sends the same
electrical signal as a differential pair of signals, each in its own
conductor. The pair of conductors can be wires in a twisted-pair or ribbon
cable or traces on a printed circuit board.

Electrically, the two conductors carry voltage signals which are equal in
magnitude, but of opposite polarity. The receiving circuit responds to the
difference between the two signals, which results in a signal with a
magnitude twice as large.





The symmetrical signals of differential signalling may be referred to as
balanced, but this term is more appropriately applied to balanced circuits
and balanced lines which reject common-mode interference when fed into a
differential receiver. Differential signalling does not make a line
balanced, nor does noise rejection in balanced circuits require differential
signalling.

Differential signalling is to be contrasted to single-ended signalling which
drives only one conductor with signal, while the other is connected to a
fixed reference voltage.




Advantages
Contrary to popular belief, differential signalling does not affect noise
cancellation. Balanced lines with differential receivers will reject noise
regardless of whether the signal is differential or single-ended,[1][2] but
since balanced line noise rejection requires a differential receiver anyway,
differential signalling is often used on balanced lines. Some of the
benefits of differential signalling include:

Doubled signal voltage between the differential pair (compared to a single-ended
signal of the same nominal level), giving 6 dB extra headroom.[1]
Common-mode noise between the two amps (e.g. from imperfect power supply
rejection) is easily rejected by a differential receiver.  Longer cable runs are
possible due to this increased noise immunity and 6 dB extra headroom.
At higher frequencies, the output impedance of the output amplifier can change,
resulting in a small imbalance. When driven in differential mode by two
identical amplifiers, this impedance change will be the same for both lines, and
thus cancelled out.[1]

Differential signalling works for both analog signalling, as in balanced audio,
and in digital signalling, as in RS-422, RS-485, Ethernet over twisted pair,
PCI Express, DisplayPort, HDMI and USB.












Suitability for use with low-voltage electronics
The electronics industry, particularly in portable and mobile devices,
continually strives to lower supply voltage to save power.[citation needed]
A low supply voltage, however, reduces noise immunity. Differential
signalling helps to reduce these problems because, for a given supply
voltage, it provides twice the noise immunity of a single-ended system.

To see why, consider a single-ended digital system with supply voltage V S
V_{S}. The high logic level is V S V_{S}\, and the low logic level is 0 V.
The difference between the two levels is therefore V S − 0 V = V S V_{S}
-0\,{\mathrm {V}}=V_{S}. Now consider a differential system with the same
supply voltage. The voltage difference in the high state, where one wire is
at V S V_{S}\, and the

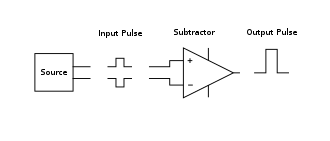

Differential amplifiers respond to differential signals by amplifying the
difference between the voltages on the amplifier’s two inputs.


other at 0 V, is V S − 0 V = V S V_{S}-0\,{\mathrm
{V}}=V_{S}. The voltage difference in the low state, where the voltages on
the wires are exchanged, is 0 V − V S = − V S 0\,{\mathrm {V}}-V_{S}=
-V_{S}. The difference between high and low logic levels is therefore V S
− ( − V S ) = 2 V S V_{S}-(-V_{S})=2V_{S}\,. This is twice the
difference of the single-ended system. If the voltage noise on one wire is
uncorrelated to the noise on the other one, it takes twice as much noise to
cause an error with the differential system as with the single-ended system.
In other words, differential signalling doubles the noise immunity.[citation
needed]




Comparison with single-ended signalling
In single-ended signalling, the transmitter generates a single voltage that
the receiver compares with a fixed reference voltage, both relative to a
common ground connection shared by both ends. In many instances, single
-ended designs are not feasible. Another difficulty is the electromagnetic
interference that can be generated by a single-ended signalling system that
attempts to operate at high speed.[citation needed]




Relation to balanced interfaces
Main article: Balanced circuit
When transmitting signals differentially between two pieces of equipment it
is common to do so through a balanced interface. An interface is a subsystem
containing three parts: a driver, a line, and a receiver. These three
components complete a full circuit for a signal to travel through and the
impedances of this circuit is what determines whether the interface as a
whole is balanced or not:[3] "A balanced circuit is a two-conductor circuit in
which both conductors and all circuits connected to them have the same impedance
to ground and to all other conductors."[4] Balanced interfaces were developed as
a protection scheme against noise. In theory, it can reject any interference so
long as it is common-mode (voltages that appear with equal magnitude and the
same polarity in both conductors).[3]

There exists great confusion as to what constitutes a balanced interface and
how it relates to differential signalling. In reality, they are two
completely independent concepts: balanced interfacing concerns noise and
interference rejection, while differential signalling only concerns
headroom. The impedance balance of a circuit does not determine the signals
it can carry and vice versa.[3]




Uses of differential pairs
The technique minimizes electronic crosstalk and electromagnetic
interference, both noise emission and noise acceptance, and can achieve a
constant or known characteristic impedance, allowing impedance matching
techniques important in a high-speed signal transmission line or high
-quality balanced line and balanced circuit audio signal path.




Differential pairs include:

 Twisted-pair cables, shielded and unshielded
 Microstrip and stripline differential pair routing techniques on printed
circuit boards

Differential pairs generally carry differential or semi-differential
signals, such as high-speed digital serial interfaces including LVDS
differential ECL, PECL, LVPECL, Hypertransport, Ethernet over twisted pair,
Serial Digital Interface, RS-422, RS-485, USB, Serial ATA, TMDS, FireWire,
and HDMI, etc., or else high quality and/or high frequency analog signals
(e.g. video signals, balanced audio signals, etc.).




Data rate examples
Data rates of some interfaces implemented with differential pairs include
the following:

 Serial ATA – 1.5 Gbit/s
 Hypertransport – 1.6 Gbit/s
 Infiniband – 2.5 Gbit/s
 PCI Express – 2.5 Gbit/s
 Serial ATA Revision 2.0 – 2.4 Gbit/s
 XAUI – 3.125 Gbit/s
 Serial ATA Revision 3.0 – 6 Gbit/s
 PCI Express 2.0 – 5.0 Gbit/s per lane
 10 Gigabit Ethernet – 10 Gbit/s (four differential pairs running at 2.5
Gbit/s each)
 DDR SDRAM – 3.2 Gbit/s (differential strobes latch single-ended data)




Transmission lines

The type of transmission line that connects two devices (chips, modules)
often dictates the type of signalling. Single-ended signalling is typically
used with coaxial cables, in which one conductor totally screens the other
from the environment. All screens (or shields) are combined into a single
piece of material to form a common ground. Differential signalling, however,
is typically used with a balanced pair of conductors. For short cables and
low frequencies, the two methods are equivalent, so cheap single-ended
circuits with a common ground can be used with cheap cables. As signalling
speeds become faster, wires begin to behave as transmission lines.




Use in computers
Differential signalling is often used in computers to reduce electromagnetic
interference, because complete screening is not possible with microstrips
and chips in computers, due to geometric constraints and the fact that
screening does not work at DC. If a DC power supply line and a low-voltage
signal line share the same ground, the power current returning through the
ground can induce a significant voltage in it. A low-resistance ground
reduces this problem to some extent. A balanced pair of microstrip lines is
a convenient solution because it does not need an additional PCB layer, as a
stripline does. Because each line causes a matching image current in the
ground plane, which is required anyway for supplying power, the pair looks
like four lines and therefore has a shorter crosstalk distance than a simple
isolated pair. In fact, it behaves as well as a twisted pair. Low crosstalk
is important when many lines are packed into a small space, as on a typical
PCB.[citation needed]




High-voltage differential signalling
High-voltage differential (HVD) signalling uses high-voltage signals. In
computer electronics, high voltage normally means 5 volts or more.

SCSI-1 variations included a high voltage differential (HVD) implementation
whose maximum cable length was many times that of the single-ended version.
SCSI equipment, for example, allows a maximum total cable length of 25
meters using HVD, while single-ended SCSI allows a maximum cable length of
1.5 to 6 meters, depending on bus speed. LVD versions of SCSI allow less
than 25 m cable length not because of the lower voltage, but because these
SCSI standards allow much higher speeds than the older HVD SCSI.

The generic term high-voltage differential signalling describes a variety of
systems. Low-voltage differential signalling (LVDS), on the other hand, is a
specific system defined by a TIA/EIA standard.




Polarity switching
Some integrated circuits dealing with differential signals provide a hardware
option (via strapping options, under firmware control, or even automatic) to
swap the polarity of the two differential signals, called differential pair
swapping, polarity reversion, differential pair inversion, polarity inversion,
or lane inversion. This can be utilized to simplify or improve the routing of
high-speed differential pairs of traces on printed circuit boards in hardware
development, to help to cope with common cabling errors through swapped wires,
or easily fix common design errors under firmware control.[5][6][7][8][9] Many
Ethernet PHY transceivers support this as auto polarity detection and correction
(not to be confused with a similar auto crossover feature).[10] PCIe and USB
SuperSpeed also support lane polarity inversion.

Another way to deal with polarity errors is to use polarity-insensitive line codes.
