Every time I order UPS batteries (every 3 or 4 years) I have to look this up so...



UPS Batteries

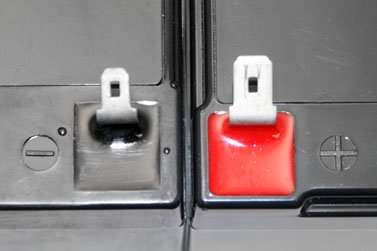

Left is F1, right is F2

F1


F2


F1 and F2 represent the type of connector that is located on the top of the
battery. F1 terminals are .187 inch wide (the contact towards the end narrows)
and F2 terminals are .250 inch wide (the contact towards the end narrows). Most
emergency light applications use a F1 terminal and most emergency power backup
(UPS) applications use F2 terminals.




Timex Watch Batt


CR2016







Battery Cross Ref Chart

Coin Cell Cross Reference
Coin Cell Battery Cross Reference Chart & Specifications

The Coin Cell Battery Cross Reference Chart & Specifications is easy to use.
Find the model of your coin cell battery and you will find the information of
that model highlighted. Click on it to take you to our selection for that model.
Cross Reference Charts: Cable Size | Flooded Lead Acid Batteries | Hearing Aid
Batteries | Motorcycle / ATV Batteries | Sealed Lead Acid Batteries | Lithium
Thionyl Chloride Batteries | Watch Batteries


Coin Cell
Voltage
L x H (mm)
Weight (g)
Capacity*
NEDA
Compatiable Models1,2
CR1025
3
10 x 2.5
0.7
30
5033LC
1025, BR1025, DL1025, ECR1025, E-CR1025, KCR1025, KECR1025, KL1025, L1025, LM1225
1216
3
12.5 x 1.6
0.7
25
5034LC
1216, 6216, BR1216, BR1216-1W, CR1216-1W, DL1216, DL1216B, ECR1216, KCR1216, LM1216
1220
3
12.5 x 2
1.2
35
5012LC
1220, 6220, BR1220, BR1220-1W, CA10, CR1220-1W, CR1220-C1, DL1220, DL1220B, ECR1220, GPCA10, GPCR1220, KCR1220, LM1220, L04, PA, SB-T13
1225
3
12.5 x 2.5
0.9
50
5020LC
1225, BR1225, BR1225-1W, CR1225-1W, DL1225, DL1225B, ECR1225, KCR1225, L30, LITH52, LITH-52, LM1225
1612
3
16 x 1.2
0.8
40
-
1612, BR1612, BR1612-1W, CR1612-1W, DL1612, DL1612B, KCR1612, LM1612
1616
3
16 x 1.6
1.2
50
5021LC
280-209, 1616, 6616, BR1616, BR1616-1W, CR1616-1W, DL1616, DL1616B, ECR1616, GPCR1616, KCR1616, LM1616, L11, L28, YA
1620
3
16 x 2
1.3
75
5009LC
280-208, 1620, BR1620, BR1620-1W, CR1620-1W, DL1620, DL1620B, EA, ECR1620, KCR1620, LM1620, L08, SB-T17
1632
3
16 x 3.2
1.8
125
-
1632, BR1632, BR1612-1W, CA17, DL1632, DL1612B, ECR1632, E-CR1632, KCR1632, KECR1632, KL1632, L1632, LITH34, LITH-34
2012
3
20 x 1.2
1.4
55
-
280-207, 2012, BR2012, BR2012-1W, CR2012-1W, DL2012, DL2012B, ECR2012, KCR2012, LM2012, SBT15, SB-T15
2016
3
20 x 1.6
1.6
90
5000LC
208-202, 208-204, 208-206, 2016, BR2016, BR2016-1W, CA12, CR2016-1W, DL2016, DL2016B, ECR2016, E-CR2016, FA, GPCA12, GPCR2016, KCR2016, KECR2016, KECR2016-1, KL2016, L10, LF1/4V, LM2016, SBT11, SB-T11
2025
3
20 x 2.5
2.5
165
5003LC
208-205, 2025, 6025, BR2025, BR2025-1W, CA13, CR2025-1W, DL2025, DL2025B, DL20256B, ECR2025, E-CR2025, GPCA13, GPCR2025, KCR2025, KECR2025, KECR2025-1, KL2025, L12, LF1/2V, LM2025, NA, SBT14, SB-T14
2032
3
20 x 3.2
3.1
220
5004LC
2032, 6032, BR2032, CA14, DL2032, EA2032, ECR2032, E-CR2032, GPCA14, GPCR2032, KCR2032, KECR2032, KECR2032-1, KL2032, L14, L2032, LF1/2V, LF-1/2V, RFA-35, RFA-35-11, SBT15, SB-T15, SB-T51
2320
3
23 x 2
3
130
-
280-201, 2320, BR2320, DL2320, E-CR2320, ECR2320, KCR2320, KECR2320, KL2320, L26, L2320
2325
3
23 x 2.5
3
190
-
2325, BR2325, DL2325, E-CR2325, ECR2325, KCR2325, KECR2325, KL2325, L2325, SBT12, SB-T12
2330
3
23 x 3
4
265
-
2330, BR2330, DL2330, E-CR2330, ECR2330, KCR2330, KECR2330, KL2330, L2330
2354
3
23 x 5.4
5.9
560
-
2354, BR2354, DL2354, ECR2354, E-CR2354, KCR2354, KECR2354, KL2354, L2354
2412
3
24 x 1.2
2
100
-
2412, BR2412, COMP-274-PANA, DL2412, ECR2412, E-CR2412, KCR2412, KECR2412, KL2412, L2412
2430
3
24.5 x 3
4.6
290
5011LC
2430, 6430, BR2430, DL2430, ECR2430, E-CR2430, GPCR2430, KCR2430, KECR2430, KL2430, L20, L2430, LF1/2W, LFW
2450
3
24.5 x 5
6.3
620
5029LC
2450, 6450, BR2450, BR2450-1W, CA10, CR2450N, CR2450-1, DL2450, ECR2450, KCR2450, LM2450
2477
3
24.5 x 7.7
10.5
1000
-
2477, BR2477, BR2477N, BR2477-1W, BR2477N-1W, CR2477N, CR2477T, DL2477, DL2477N, ECR2477, ECR2477N, KCR2477, KCR2477N, LITH-32, LITH32PANA, LM2477, LM2477N, P120ND
3032
3
30 x 3.2
7.1
500
-
3032, CR 3032, CR-3032, DL3032, DL 3032, DL-3032, ECR3032, E-CR3032, KCR3032, KECR3032, KL3032, L3032, LITH45, LITH-45
927
3
9.5 x 2.7
0.51
30
-
927, BR927, BR927-1W, CR927-1W, DL927, DL927B, ECR927, KCR927, LM927


Coin cell batteries are used for many applications such watches, bios backup,
calculators, electric candles, flashlights, glucometers, keyfobs, remotes and
thermometers to name just a few. Coin cell batteries are also known by button
cells, although not as common. We have listed the most common sizes above to
help you find the battery that you need. This is not our complete assortment.
If you need something specific please feel free to contact us directly of take
at out coin cell battery categoryfor a complete selection.

* Nominal Capacity in mAh.

1 Cells designations that start with the letters (DL) are Duracell, (ECR) are
Energizer and (K) are Kodak.

2 Cells that have (CR) in them mean Lithium-Manganese Dioxide, LiMnO2. Cells
that have (BR) in them mean Lithium Polycarbon-Monofluoride, Li-CFx
