Panel 1	Outlet 1-6	Panel 2

Since about 2003 I have had a 12 port, punch down, patch panel under Betty's desk.
I never was happy about the punch-down panel, I had to be careful when I unmounted
it to add a new cat-5.

In 2023 I started adding cat-5s to the system, and realized I needed a 2nd panel.
When I ordered the new panel I decided to upgrade the old 12 port punch-down to
a 24 port pass-through, and also replace the old panel with the same kind of
panel.

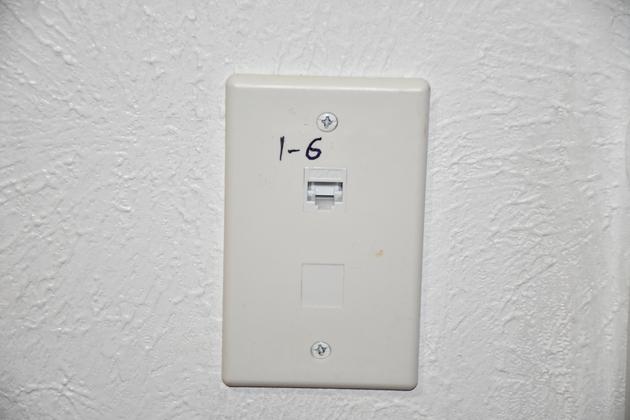

The small single panels around the house are marked with the panel #, a dash, and
the panel's port, Like the middle pic above 1-6 (Panel 1, Port 6).

About TELCO:
The main line from TELCO (either pair or VOIP) goes to the security system.
Another line, from the security system, is the main phone line throughout the house.
In the event of a break-in, the security system disconnects the phone line, so a
robber can't take a phone off-hook and stop the secruity system from calling for
help.




Panel 1
Panel
 to
 Panel
 Cable
Panel 2

Port Number
Betty's Office
Port Number
Frt BR
1-1
DMARC-1 Input From Telco (Old DSL)



2-1
Cam 1 Frt Porch
1-2
Den Nw #2



2-2
Cam 2 Back Patio
1-3
Den Ne #3



2-3
Cam 3 Car Port N.
1-4
Den Entertainment Center #4



2-4
Cam 7 SW Corner (7-A)
1-5
Den South #5



2-5
Cam 8 Frt Cntr (8-A)
1-6
Dining Room #6



2-6
Cam 9 SE Corner (9-A)
1-7
CCTV Cams POE Switch #8



2-7
CCTV Cams POE Switch #6
1-8
Main HomeNet Switch #2



2-8
Main HomeNet Switch #1
1-9
Unused Cat 5



2-9
Unused Cat 5
1-10




2-10
Frt BR. (Office)
1-11




2-11
Corner Br.
1-12




2-12
Mstr Br.
1-13




2-13
Sec Sys
1-14
CCTV Cam 4 Car Port S



2-14
Tuxedo
1-15
CCTV Cam 5 Back Yard



2-15
Den Wx
1-16
CCTV Cam 6 Shop



2-16

1-17




2-17
SW Corner (7-B)
1-18




2-18
Frt House Nbr (8-B)
1-19




2-19
Front Porch (9-B)
1-20




2-20

1-21




2-21

1-22




2-22

1-23
Need Telco Security In



2-23
Telco VOIP > To Security Sys (pair #1)
1-24
Main Phone Line (pair #1)



2-24
Main Phone Line (pair #1)

Telco wire 2 pr
CAT-5 Panel to Panel  OR CCTV











Panel 1

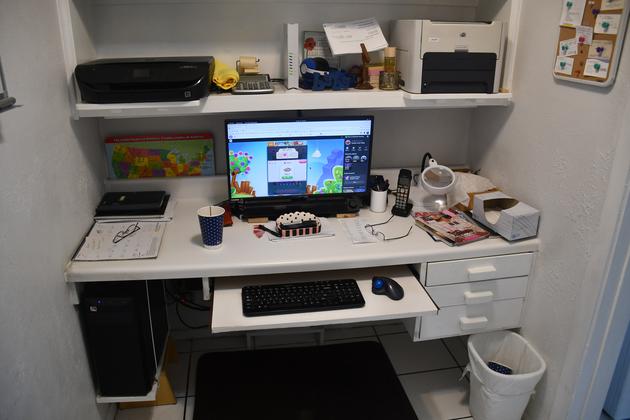

Betty's work station.
You can see the two printers and the WiFi Access Point on the shelf above.








A little closer look at Betty's work station.

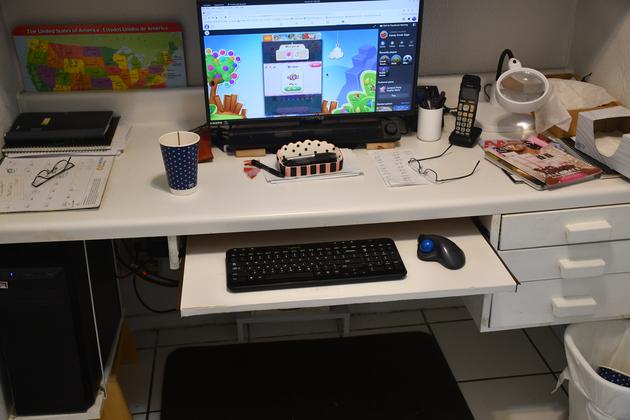

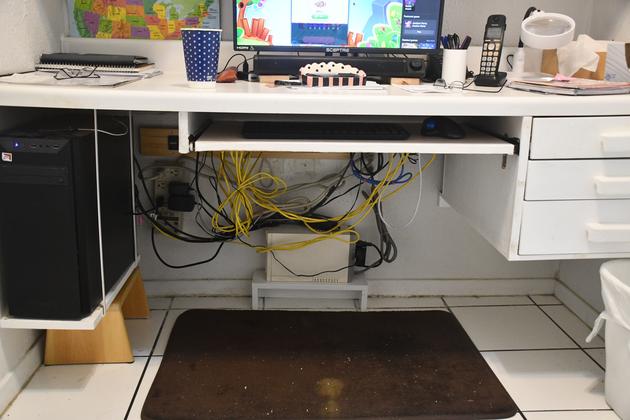

Now you can see under her work station.
The UPS on it's pedestal (helps in cleaning), panel 1 is behind the keyboard,
you can just see the left end to the left of the keyboard..

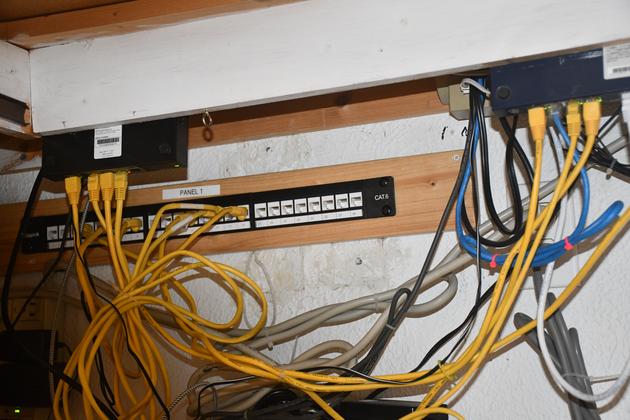

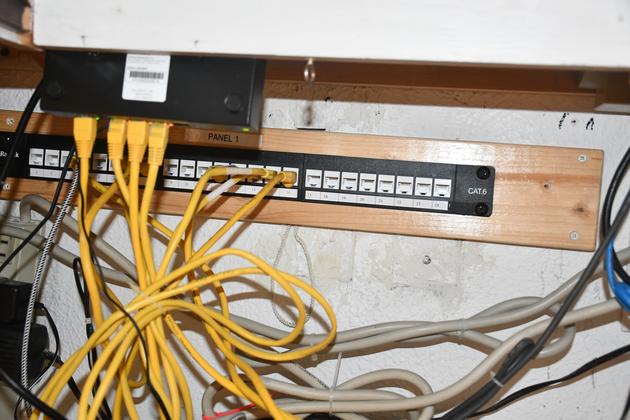

Panel 1 under Betty's work sation.
Note panel 1 on the wall with the 5 port POE switch in front of it.
Also note on the right is Switch #2, 8 port Gb.









Closer look at panel 1 with the 5 port POE switch in the foreground.







Panel 2

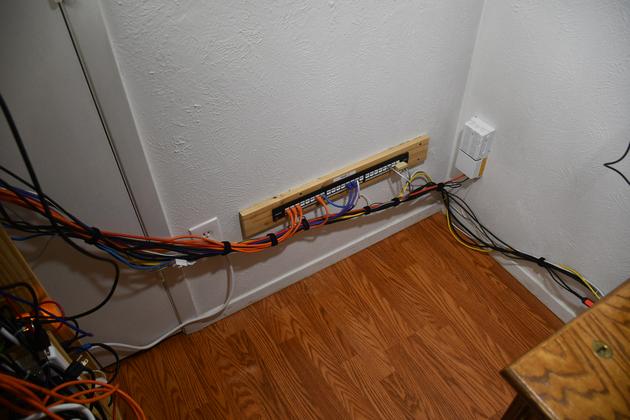

The old console has been moved out, you can see Panel 2, and the fiber
modem on the right.

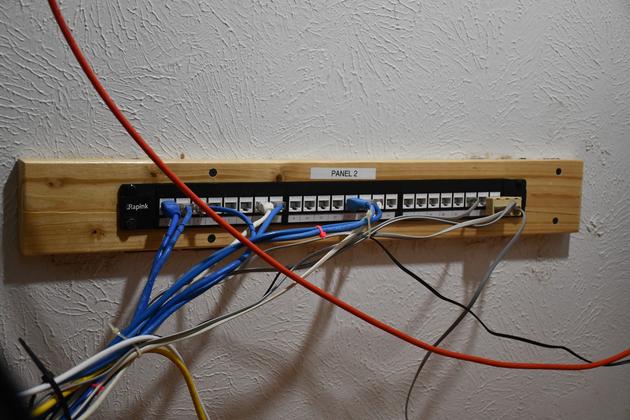

A closer look at Panel 2.
The red wire is the cat 5 from the fiber modem to the ATT internet modem.

Note the three right RJ-45s are telco wires, 2-22 goes from the VOIP modem to
the security system.
2-24 is the main telco from the security system.

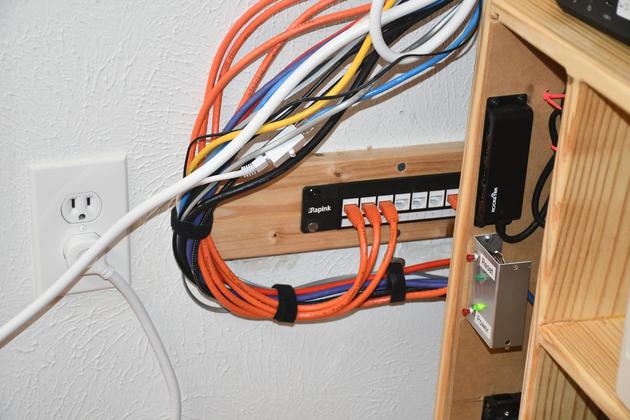

Close look at the right end of Panel 2 and the ATT fiber modem.
