Introduction to the Domain
Name System (DNS)
Last updated: June 13, 2023
Written by: baeldung
1. Introduction
Reliable communication between globally located network devices using IP
address namespace is the foundation stone of the Internet. However, it’s
more natural for humans to remember stuff by short names than numbers.
Domain Name System (DNS) solves this issue by helping us access the Internet
addresses by names such as google.com, instead of an IP address. Through
this tutorial, we’ll develop a better understanding of the core concepts
and working principles of DNS.
2. DNS Basics
Let’s start with the basics of DNS.
2.1. Lookup Functionality
To be able to access websites on the Internet, the Internet browser needs a
lookup system to find IP addresses of the web servers.

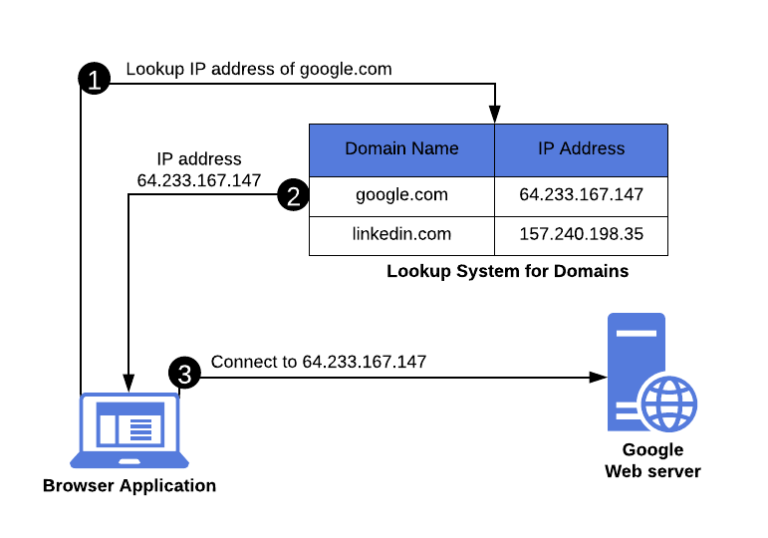

First, the browser would send a lookup request for the website’s IP
address. In the second step, the lookup system would respond with an answer
containing the IP address of the domain. Finally, in the third step, the
browser would be able to connect to the website using the IP address:
freestar
DNS v1
Such a lookup system must be able to store records corresponding to billions
of active websites on the Internet. However, it’s not possible for every
device on the Internet to store such a massive set of mappings locally.
Moreover, such lookups are critical for the Internet to function
efficiently. So, for all the users to access the Internet reliably, DNS is
designed as a distributed database system.
2.2. Distributed System

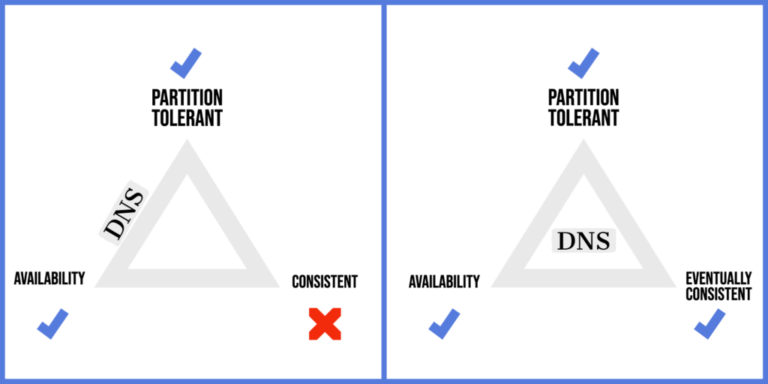

To be highly reliable, we’d want DNS to be highly available, consistent,
and tolerant to failures in a network partition. However, as the CAP theorem
says, we can’t have all of them at the same time.
So, when a partial network failure occurs, DNS needs to compromise either
availability or consistency. Naturally, for the Internet to function all the
time, it’s designed to be a highly available system:
dns CAP v1
It’s important to note that although DNS prefers availability over
consistency, it is an eventually consistent system. So, with time,
inconsistency, if any, would go away.
While continuing to explore further, let’s keep these design decisions in
mind. That will help us develop a better understanding of all the associated
concepts.
3. Domain Namespace
Domain namespace keeps the domains organized such that they’re easy to
access. Moreover, the structure of domain namespace influences the internal
structure and specific functionality of each component in DNS. So, let’s
go ahead and understand this concept now.
Domain Namespace v1
3.1. Hierarchical Structure
To design DNS as a distributed system that can store billions of domain
records, we’d need to find a logical way to distribute the entire domain
namespace across multiple nodes. So, instead of having an unordered
collection, Internet domain namespace is perceived as a hierarchical tree
-like structure where each node is effectively a domain name.
Here, the idea is that a group of domains that share some characteristic,
such as affiliation or purpose would belong to the same family:
freestar
ADVERTISING
When we parse domain namespace from top to bottom, the ones sitting at the
first level are called the Top Level Domains (TLDs). Broadly speaking, there
are two types of TLDs:
Generic Top-Level Domain (gTLDs) such as com (commercial), edu
(educational), and org (non-profits)
Country Code Top Level Domain (ccTLDs) such as us, uk, and in
Next, directly under a TLD, are the Second-Level Domains that usually
indicate the organization to which that domain belongs. Likewise, directly
under a Second-Level Domain are the Third-Level Domains that help to further
organize internet addresses that belong to the same organization.
As such, except for the root domain, all other domains are also known as
subdomains of the parent domain. However, when the context is limited to a
particular organization, then third-level domains are, in short, referred to
as subdomains.
3.2. Fully Qualified Domain Name (FQDN)
From any node within the domain namespace, if we traverse up till the root
node, then we get its absolute path:
dns fqdn v1
Unlike the concept of subdomains, which is relative to the parent domain,
the absolute path is unambiguous. So, when we write down this path separated
by a dot, we get its Fully Qualified Domain Name (FQDN) that can be used by
DNS internally.
When it comes to naming conventions for a valid domain, there are a few
guidelines:
- We can only use numbers (0-9), letters (a-z, A-Z), or hyphens (–)
- We can’t start a domain name with a hyphen
- FQDN can’t be longer than 255 characters, with each individual part not
exceeding 63 characters
With these restrictions in place, it gets easier to parse an FQDN and
extract the individual strings such as TLD, or the principle domain.
3.3. Zones
Looking at domain namespace tree, we can think of any non-leaf node to
represent a family of domain addresses that have the same right side in
their FQDNs. On top of that, a zone is a group of domain addresses within
domain namespace that is administered by the same Domain Name Server.
freestar

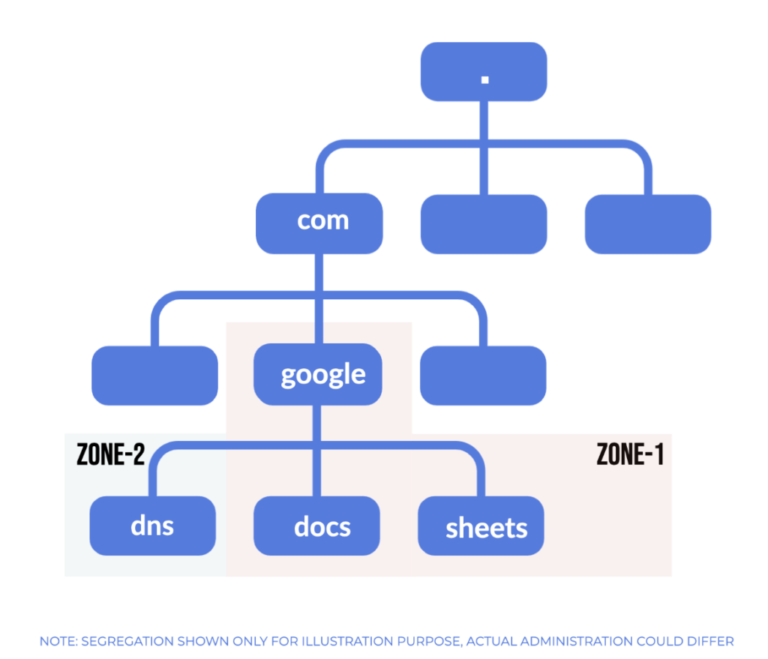

Let’s imagine that the information related to google.com, docs.google.com,
and sheets.google.com is maintained by a single DNS server, while
dns.google.com is administered by a different DNS server:
dns zones v1
So, we can see two DNS zones here, namely ZONE-1 and ZONE-2. Among these,
ZONE-2 is scoped to a subdomain (dns.google.com) of the domain, google.com,
and such zones are popularly known as subordinate zones.
4. DNS Client-Server Architecture

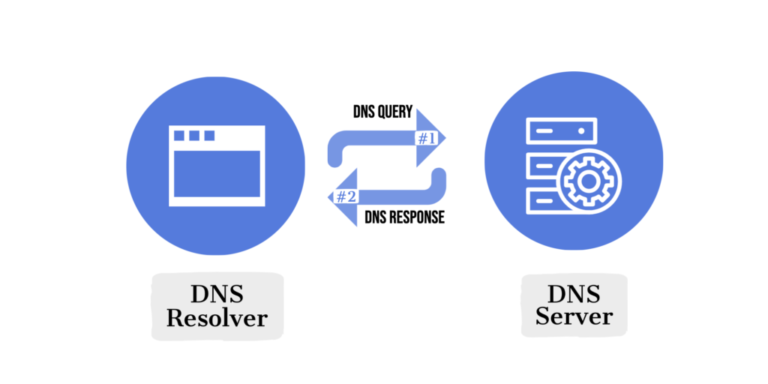

At a high level of abstraction, DNS is built upon a client-server
architecture model:
dns arch v1
As happens in a client-server model, a domain name resolution request is
initiated by a DNS client, which is popularly known as DNS resolver. In
return, the distributed network of DNS responds to the client.
However, as DNS is essentially a hierarchical distributed system, the exact
flow is not as simple as it looks here.
One thing that’s important to understand is that as the data is spread
across several servers, the first server that gets the query might not be
able to answer the query by itself. So, it might seek answers from another
DNS server, and while doing that, it takes the role of a DNS resolver.
5. Name Servers (NS)
Name Servers are the core functional components of DNS as they store the
relevant information needed for translation of domain names to IP addresses
and vice versa. Besides, depending on the type of information they store,
they can be classified into different types. Let’s learn more about them.
freestar
5.1. Authoritative Name Servers
From an administrative point of view, an authoritative name server is
configured by an administrator to hold the authoritative source of data for
a zone. So, to answer DNS queries for domains in that zone, all other name
servers would need to directly or indirectly consult this name server at
some point in time.
Like Domain Namespace, authoritative name servers follow a hierarchical
order, with authoritative name servers for the root zone sitting at the top
of the tree. Generally speaking, the term zone is often dropped, so DNS
servers for the root zone are often called root servers, DNS servers for a
TLD zone are TLD servers, and so on.
5.2. Caching Name Servers
Although the domain information is mutable, nevertheless, in most cases, a
lot of this information, such as IP address, doesn’t change for a
considerable time. So, caching is a convenient choice that can help in
reducing the number of DNS queries coming to an authoritative name server.
On the one hand, caching improves the performance of DNS, and most internet
-facing applications benefit from this. While, on the other hand, it also
introduces a possibility of inconsistency in the system wherein an
authoritative name server changed some information. However, the caching
name servers are still answering using the cached results.
To some extent, the problem of inconsistency is solved by a mechanism of
expiring the cached results based on a TTL (time to live) value configured
for that record by the authoritative name server. As a result, DNS is not a
strongly consistent system, but it still provides eventual consistency.
6. DNS Resolutions
So far, so good! Now, we have a fair understanding of the core components of
a DNS system. So, as a next step, let’s see how these components
collaborate to answer the DNS queries.
6.1. Recursive and Non-recursive Query
To answer translation queries, DNS leverages the hierarchical organization
of the domain namespace and the authoritative name servers.
While making a DNS query, the client has the flexibility of choosing between
a recursive or non-recursive query. For the former, it expects the server to
give it a definite answer for the query. However, for the latter, it expects
either a definite answer or a referral nameserver that might hold the
answer:
freestar
dns query v1
To serve a request, DNS resolver parses the FQDN from the right to left and
isolates its individual parts. Then, it’d invoke several non-recursive
queries starting with the root server. In response, either it’d have an
answer or a referral nameserver that it should query next.
Finally, the last response goes back to the client. In this entire chain of
events, we must note that usually, resolvers have hard-coded addresses for
the root servers, and this helps them to reach the root node of the server
tree. After that, referrals serve the purpose of tree traversal.
6.2. Forwarder and Recursor
While DNS resolvers can decide whether they want to initiate a recursive or
a non-recursive query, there’s similar flexibility with DNS servers:
- Forwarder server can forward a DNS query to another DNS server
- Recursor server would resolve a DNS query all by itself
We must note that resolution for any DNS query would begin with one or more
DNS Forwarders and end at a DNS Recursor.
Naturally, serving recursive queries involves more work by a server than
serving non-recursive queries. So, if we have to set up a recursive server,
then we must take this into account. However, for most general purposes, we
can use public DNS resolvers offered by Internet giants such as Google or
Cloudflare.
7. DNS Resource Records
So far, we restricted our discussion to the translation of domain names to
IP addresses. However, DNS is capable of storing several other kinds of
resource records for the Internet domains:
- A record maps to the IPv4 address
- AAAA record maps to the IPv6 address
- CNAME record works as an alias and maps to the canonical domain name
- MX record maps to the mail server that can send or receive emails on behalf
of a domain
- NS record maps to the authoritative name server for a zone
We must note that these are just the most commonly used records. For that
matter, if we take the use case of microservice-based distributed systems,
then SRV records play a crucial role in service discovery as they can map an
IP address and a port to a service name.
8. Conclusion
In this tutorial, we learned about a variety of topics such as domain
namespace, name servers, and the architecture behind DNS. We dived into each
topic, to understand the process of DNS query resolution clearly.
