Updated on 15 Jun 2021 10 Minutes to read Contributors [Suzanne Goldlust] Views in BIND have a bad reputation, with some people advocating that they should not be used. It is true that views add complexity to a BIND configuration, but this article will explain how that complexity can be managed and allow views to be used effectively. One of the first thing to understand with views is that the zones loaded into memory in each view are completely independent of any other copy of that zone loaded in any other view. Caches and views
Caches are also unique to each view by default. However, starting with BIND 9.7.0 they can be explicitly shared using the attach-cache option. See How do I configure multiple views to share the same recursive cache? for more details. Running BIND 9.10.0 or greater?
Starting with BIND 9.10.0 a new zone option, "in-view", was added that lets multiple views refer to the same in-memory instance of a zone. This breaks the model presented in this article for those zones while providing a savings in both memory usage and configuration complexity. See the Administrator Reference Manual (ARM) for your version of BIND for more details. One way to think about multiple views is as if each view were its own instance of BIND, with a fancy multiplexer in front of them all that determines which instance will receive each incoming request packet. When you think about each view as its own process, it makes it easy to see that for secondary zones each view needs to receive its own NOTIFY message when zone data changes. It also follows naturally that each view needs to have a means of requesting zone data from the correct view on the primary (assuming that the primary also has multiple views). All of this applies even when the primary and secondary are located in different views within the same BIND instance! The multiplexer in front of the views can use up to three different pieces of information about an incoming request to determine which view it should be sent to: the source IP address (with the match-clients statement), the destination address (with the match-destinations statement), and whether or not the request is signed with a specific key (with both match-clients and match-destinations). Let's get started with the examples.
These Examples are Simplified In order to more clearly demonstrate the principles of managing views, these examples do not go out of their way to also demonstrate other principles of good server management, such as allowing dynamic updates or good security practices. Example 1 - A single server, no zones in common

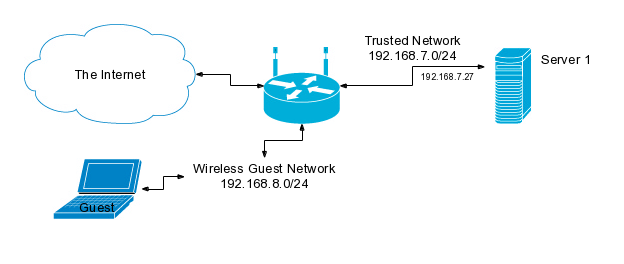

In the first example we have, perhaps, the simplest possible setup with multiple views — a single server with views that don't need to share any zone data.
# named.example01.conf
acl trusted { 192.168.7.0/24; localhost; };
acl guest { 192.168.8.0/24; };
view trusted
{
match-clients { trusted; };
allow-recursion { any; };
zone "myzone.example"
{
type primary;
file "db.myzone.example";
};
zone "7.168.192.in-addr.arpa"
{
type primary;
file "db.192.168.7";
};
};
view
guest
{
match-clients { guest; };
allow-recursion { any; };
};
This setup is something like someone might have in a small office (or maybe at
home) with a trusted network for known clients and an untrusted guest network
for visitors. This setup features a local zone that only the devices on the
trusted network can see, only acts as a resolver for local clients, and does not
allow clients on the guest network to "snoop" in the cache that "trusted"
clients use.
How views affect rndc commands
As long as a zone name is unambiguous you can use it with rndc commands the same
as when not using views. If the zone exists in multiple views then it will need
to be qualified by both the class (nearly always IN for internet) and the view
name.
Example 2 - A single server, one common (but different) zone
On the same network as before, suppose that the operator decides that they want to provide names to guests for a few select services that they offer within the network. # named.example02.conf acl trusted { 192.168.7.0/24; localhost; }; acl guest { 192.168.8.0/24; }; view trusted { match-clients { trusted; }; allow-recursion { any; }; zone "myzone.example" { type primary; file "trusted/db.myzone.example"; }; zone "7.168.192.in-addr.arpa" { type primary; file "trusted/db.192.168.7"; }; }; view guest { match-clients { guest; }; allow-recursion { any; }; zone "myzone.example" { type primary; file "guest/db.myzone.example"; }; }; Note that a subdirectory has been created for each view and that the zone data files for both views have been placed in their respective subdirectory. Keeping the zone data files separated this way will help prevent confusion and problems later. Example 3 - Adding a second server

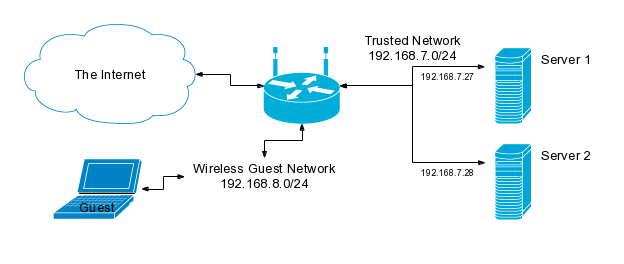

DNS servers are social creatures and like to have company, so the operator of this network has decided to add a second DNS server.
Thinking about each view as an independent server helps us to remember that we
need to make a way for each view on Server 2 to talk to the same view on Server
1. If we don't do anything explicitly to make it happen then both views on
Server 2 will be talking to the trusted view on Server 1 because of Server 2's
IP address. While we could use set up additional IPs for this, using TSIG keys
gives us the most flexibility and doesn't require any OS changes to configure
the additional IPs on the servers.
Further information on TSIG
For information on generating and using TSIG, see chapter 4 of the BIND 9
Administrator Reference Manual (ARM) appropriate for your version. The ARM for
many BIND versions can be found by searching in this Knowledgebase. A copy of
the ARM is also included with every BIND 9 source tarball and Windows .zip file
downloaded from ISC.
Version 9.9.0+ required for these examples
The following configurations require BIND version 9.9.0 or greater. The
also-notify statement does not allow keys to be specified in any lower versions.
Without the ability to specify a key in the also-notify statement you have to
use other ways to distinguish between views, such as the method described in My
secondary server for both an internal and an external view has both views
transferred from the same primary view - how to resolve?.
# named.example3.server1.conf
key trusted-key
{
algorithm HMAC-MD5;
secret some-secret;
};
key guest-key
{
algorithm HMAC-MD5;
secret another-secret;
};
acl trusted { !key guest-key; key trusted-key; 192.168.7.0/24; localhost; };
acl guest { !key trusted-key; key guest-key; 192.168.8.0/24; };
options
{
notify explicit;
allow-transfer { none; };
};
view trusted
{
match-clients { trusted; };
allow-recursion { any; };
allow-transfer { key trusted-key; };
zone "myzone.example"
{
type primary;
file "trusted/db.myzone.example";
also-notify { 192.168.7.28 key trusted-key; };
};
zone "7.168.192.in-addr.arpa"
{
type primary;
file "trusted/db.192.168.7";
also-notify { 192.168.7.28 key trusted-key; };
};
};
view guest
{
match-clients { guest; };
allow-recursion { any; };
allow-transfer { key guest-key; };
zone "myzone.example"
{
type primary;
file "guest/db.myzone.example";
also-notify { 192.168.7.28 key guest-key; };
};
};
# named.example3.server2.conf
key trusted-key
{
algorithm HMAC-MD5;
secret some-secret;
};
key guest-key
{
algorithm HMAC-MD5;
secret another-secret;
};
acl trusted { !key guest-key; key trusted-key; 192.168.7.0/24; localhost; };
acl guest { !key trusted-key; key guest-key; 192.168.8.0/24; };
options
{
notify explicit;
allow-transfer { none; };
};
view trusted
{
match-clients { trusted; };
allow-recursion { any; };
zone "myzone.example"
{
type secondary;
masters { 192.168.7.27 key trusted-key; };
file "trusted/db.myzone.example";
};
zone "7.168.192.in-addr.arpa"
{
type secondary;
masters { 192.168.7.27 key trusted-key; };
file "trusted/db.192.168.7";
};
};
view guest
{
match-clients { guest; };
allow-recursion { any; };
zone "myzone.example"
{
type secondary;
masters { 192.168.7.27 key guest-key; };
file "guest/db.myzone.example";
};
};
The "!key ..." parts of the acls are important to force signed requests to be
rejected from inappropriate matches before they have a chance to match on the
source IP.
Note that, as written, this example allows anyone, on any network, with the TSIG
key to sign regular DNS requests in order to select which view they want their
answer from and also to request zone transfers. Depending on who has the key
and what their motivation is, this could be considered to be either a serious
problem or a nice feature. See Using Access Control Lists (ACLs) with both
addresses and keys for more information on how these ACLs could be improved.
Another significant thing that this example demonstrates in the server1
configuration is that many options can be specified in both a "global" options
section and inside of views, with the value specified in the view overriding the
"global" value.
I've chosen to set the notify option to "explicit". This disables the default
behavior of sending NOTIFY messages to every name server listed in the zone data
(except for the primary listed in the SOA, which is already exempted) because
those NOTIFY messages would be sent unsigned instead of with the proper view
identification key.
Example 4 - Now with shared zones
Since the last example, the network operator has decided that they're going to create DDNS records for their guest clients in a set of new zones. While this information will mostly be used by systems on the trusted network, the operator would like to allow the guest clients to see their own dynamically-created DNS records, which means making the same zones available in both views. The key to making this work is to once again think about the views as independent servers and so to create an explicit relationship between the two views. We continue to use keys to make sure that the NOTIFY messages and transfer requests get sent to the correct view, where the key used matches the view that we want to receive the message. Version 9.9.0+ required for these examples As with example 3, this example also requires BIND version 9.9.0 or higher. For information about how to accomplish this with lower versions of BIND 9, see How do I share a dynamic zone between multiple views?. named.example4.server1.conf key trusted-key { algorithm HMAC-MD5; secret some-secret; }; key guest-key { algorithm HMAC-MD5; secret another-secret; }; key update-key { algorithm HMAC-MD5; secret yet-another-secret; }; acl trusted { !key guest-key; key trusted-key; 192.168.7.0/24; localhost; }; acl guest { !key trusted-key; key guest-key; 192.168.8.0/24; }; options { notify explicit; }; view trusted { match-clients { trusted; }; allow-recursion { any; }; allow-transfer { key trusted-key; }; allow-update { key update-key; }; zone "myzone.example" { type primary; file "trusted/db.myzone.example"; also-notify { 192.168.7.28 key trusted-key; }; }; zone "7.168.192.in-addr.arpa" { type primary; file "trusted/db.192.168.7"; also-notify { 192.168.7.28 key trusted-key; }; }; zone "guests.example" { type primary; file "trusted/db.guest.example"; also-notify { 192.168.7.28 key trusted-key; 127.0.0.1 key guest-key; }; }; zone "8.168.192.in-addr.arpa" { type primary; file "trusted/db.192.168.8"; also-notify { 192.168.7.28 key trusted-key; 127.0.0.1 key guest-key; }; }; }; view guest { match-clients { guest; }; allow-recursion { any; }; allow-transfer { key guest-key; }; zone "myzone.example" { type primary; file "guest/db.myzone.example"; also-notify { 192.168.7.28 key guest-key; }; }; zone "guests.example" { type secondary; masters { 127.0.0.1 key trusted-key; }; file "guest/db.guest.example"; also-notify { 192.168.7.28 key guest-key; }; }; zone "8.168.192.in-addr.arpa" { type secondary; masters { 127.0.0.1 key trusted-key; }; file "guest/db.192.168.8"; also-notify { 192.168.7.28 key guest-key; }; }; }; ## named.example4.server2.conf key trusted-key { algorithm HMAC-MD5; secret some-secret; }; key guest-key { algorithm HMAC-MD5; secret another-secret; }; acl trusted { !key guest-key; key trusted-key; 192.168.7.0/24; localhost; }; acl guest { !key trusted-key; key guest-key; 192.168.8.0/24; }; view trusted { match-clients { trusted; }; allow-recursion { any; }; zone "myzone.example" { type secondary; masters { 192.168.7.27 key trusted-key; }; file "trusted/db.myzone.example"; }; zone "7.168.192.in-addr.arpa" { type secondary; masters { 192.168.7.27 key trusted-key; }; file "trusted/db.192.168.7"; }; zone "guests.example" { type secondary; masters { 192.168.7.27 key trusted-key; }; file "trusted/db.guest.example"; }; zone "8.168.192.in-addr.arpa" { type secondary; masters { 192.168.7.27 key trusted-key; }; file "trusted/db.192.168.8"; }; }; view guest { match-clients { guest; }; allow-recursion { any; }; zone "myzone.example" { type secondary; masters { 192.168.7.27 key guest-key; }; file "guest/db.myzone.example"; }; zone "guests.example" { type secondary; masters { 192.168.7.27 key guest-key; }; file "guest/db.guest.example"; }; zone "8.168.192.in-addr.arpa" { type secondary; masters { 192.168.7.27 key guest-key; }; file "guest/db.192.168.8"; }; };
