KAMRUI AM02 Ryzen 7 Mini PC Review

The KAMRUI AM02 is one of the latest NUC Windows 11 mini-PCs that falls within
the high end category. For those looking for a compact device running on
powerful AMD Ryzen hardware then this SOC should catch your attention.  Sporting
a Ryzen seven 3750H quad-core CPU with a boost clock speed of up to 3.89 GHz,
with the AMD Radeon Vega 10 core GPU, provides the processing and gaming
performance you need.

This is one of those mini-PCs that has enough power to do some basic video
editing, and high-end 3D gaming at 1080p resolution. It runs the PCX2
PlayStation 2 emulator and has the ability to run alternative operating systems
such as FydeOS, Linux, and Ubuntu. It has HDCP protection to play premium movie
services in HD and, and it can play all surround sound audio formats  such as
Dolby Atmos, DTS X, and even Dolby TrueHD when connected to a 7.1 surround sound
audio receiver.



KAMRUI AM02 Hardware Specs

CPU – AMD Ryzen 7 3750H quad-core (4 cores 8 threads)
CPU speed – Base 2.30 GHz | Boost 3.89 GHz
GPU – AMD Radeon Vega 10 1400 MHz (10 core)
RAM – 16 GB DDR4 2666 (64GB max)
Storage – 512 GB NGFF M.2 SSD
Wi-Fi – dual band 2.4 GHz + 5 GHz
Bluetooth – 4.2
Ethernet LAN – 1000Mbps gigabit LAN

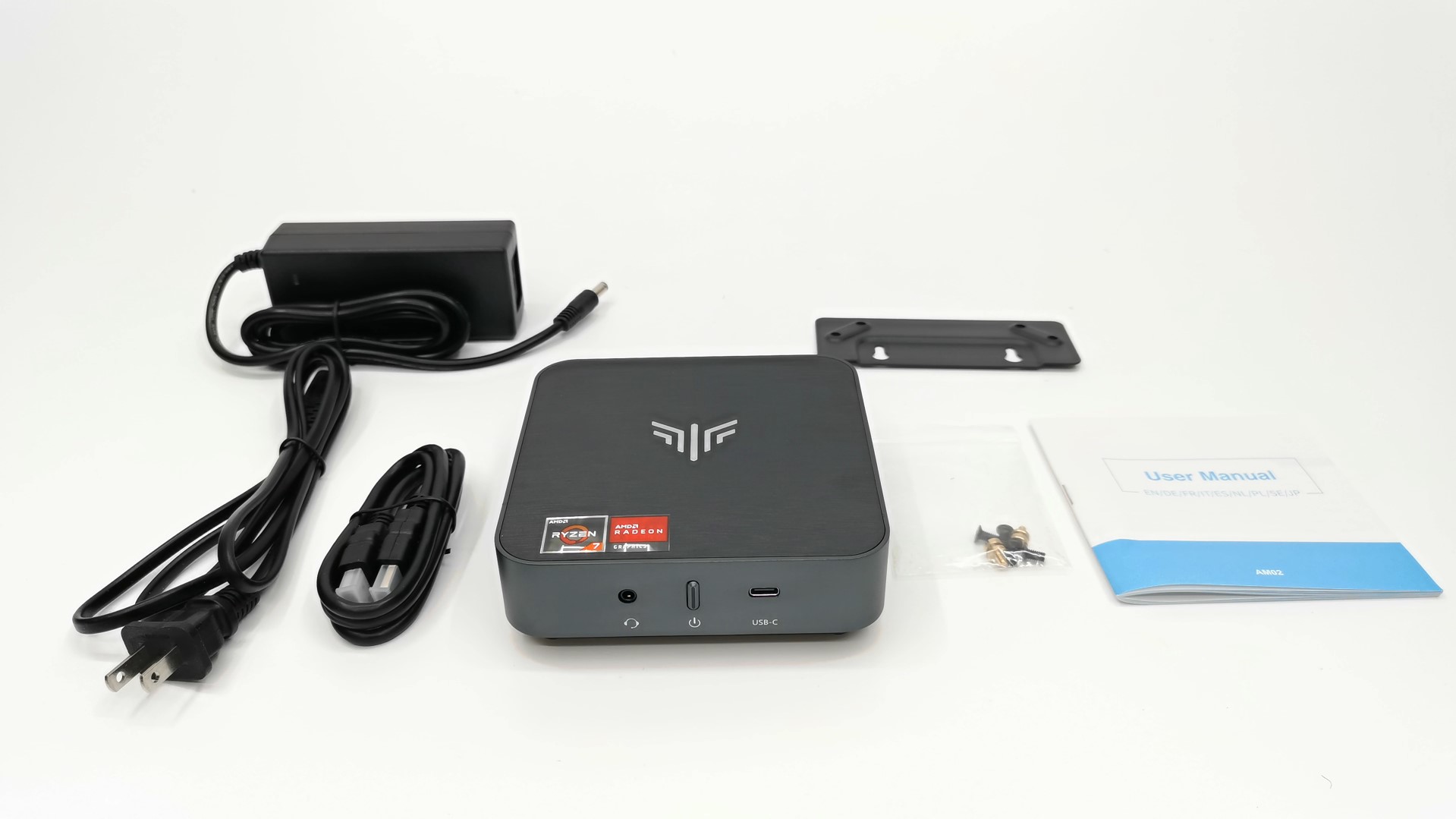

KAMURI AM02 Ryzen Mini PC in the box
KAMURI AM02 Ryzen Mini PC basic system information



KAMRUI AM02 Interface

1 x USB 2.0 ports
3 x USB 3.0 ports
1 x Type-C port
1 x Gigabit Ethernet port
1 x HDMI ports
1 x DC port
1 x Audio-in/out port
1 x DP port

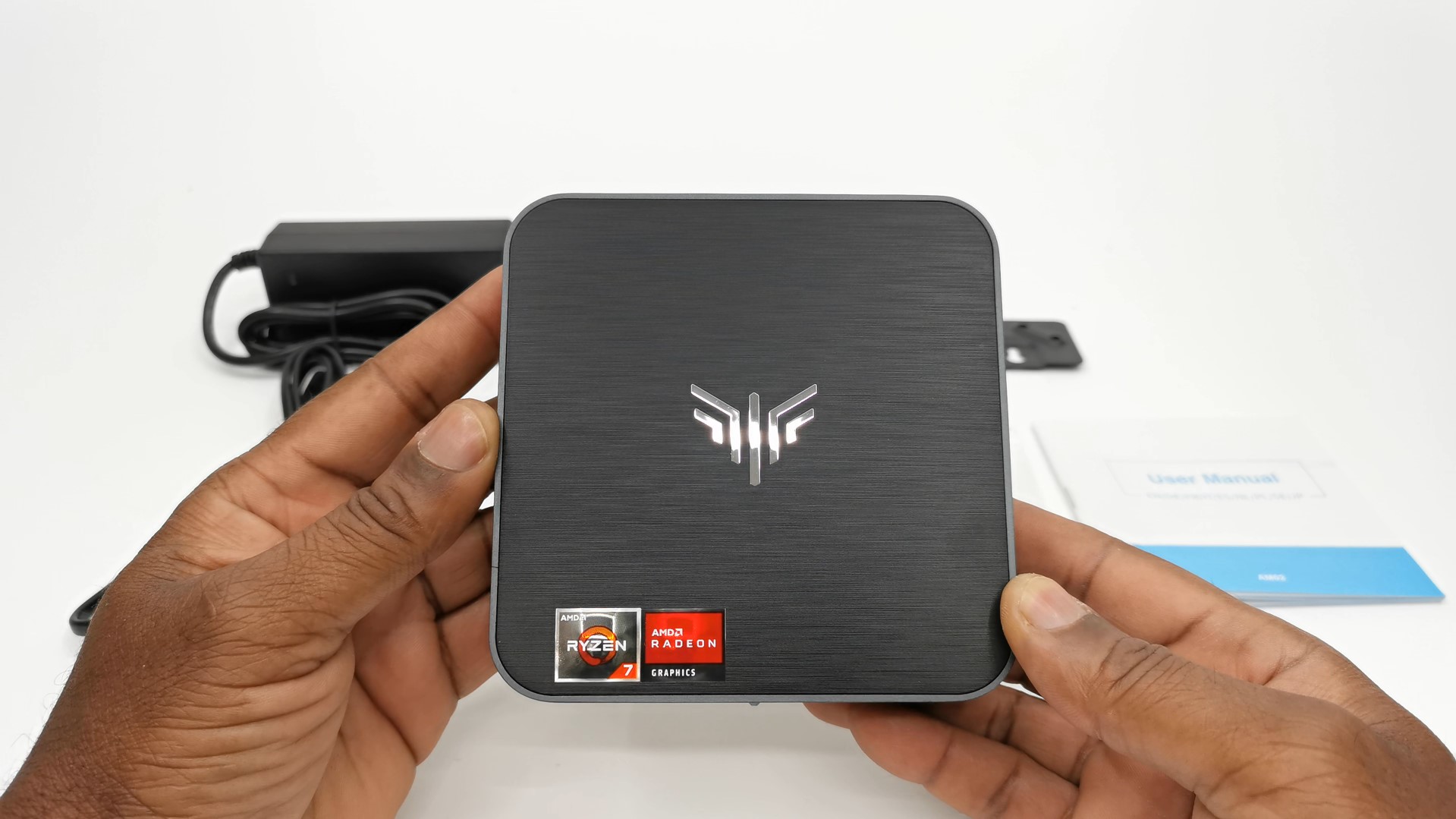

KAMURI AM02 Ryzen Mini PC top view

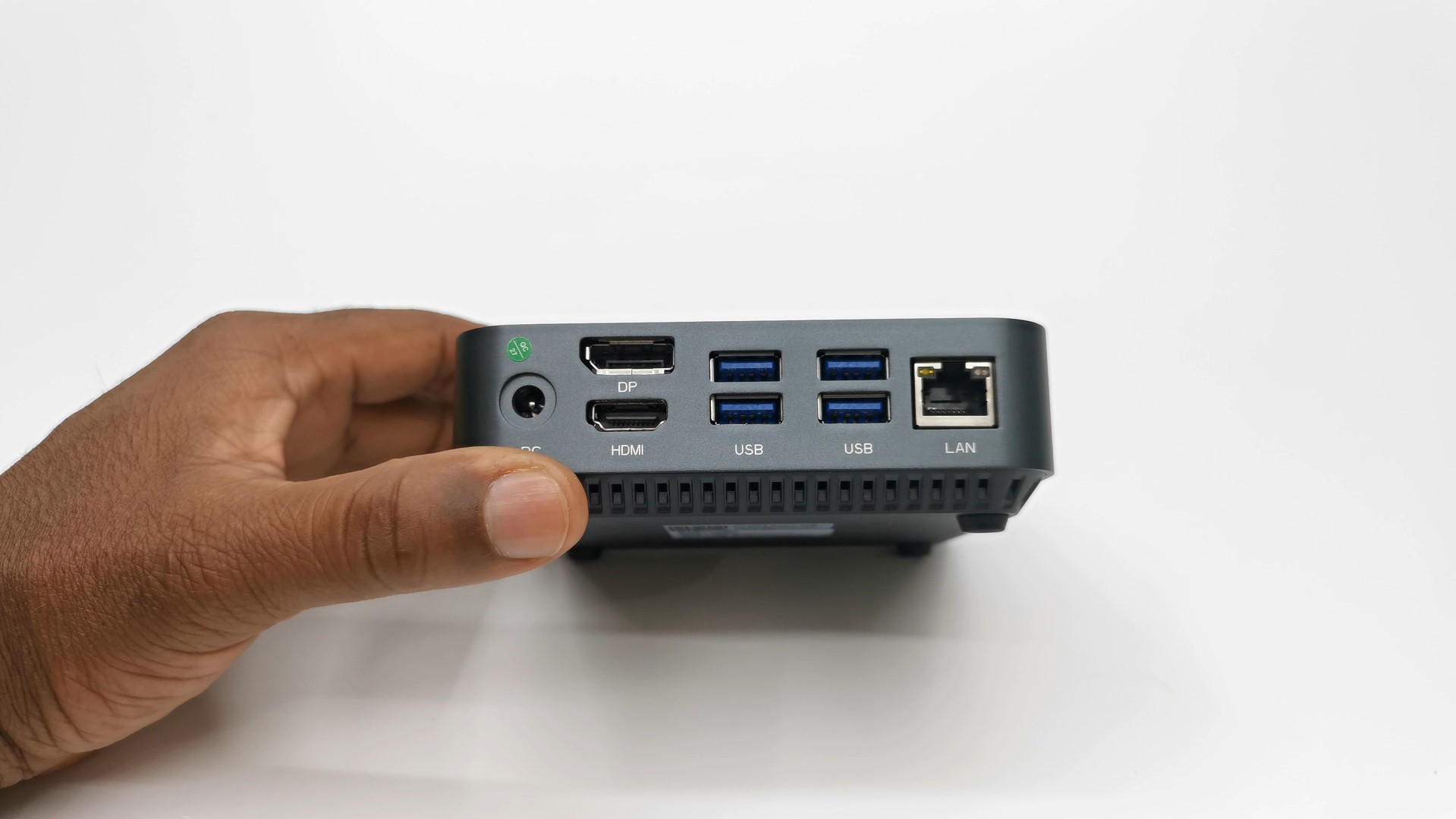

KAMURI AM02 Ryzen Mini PC rare IO

ports

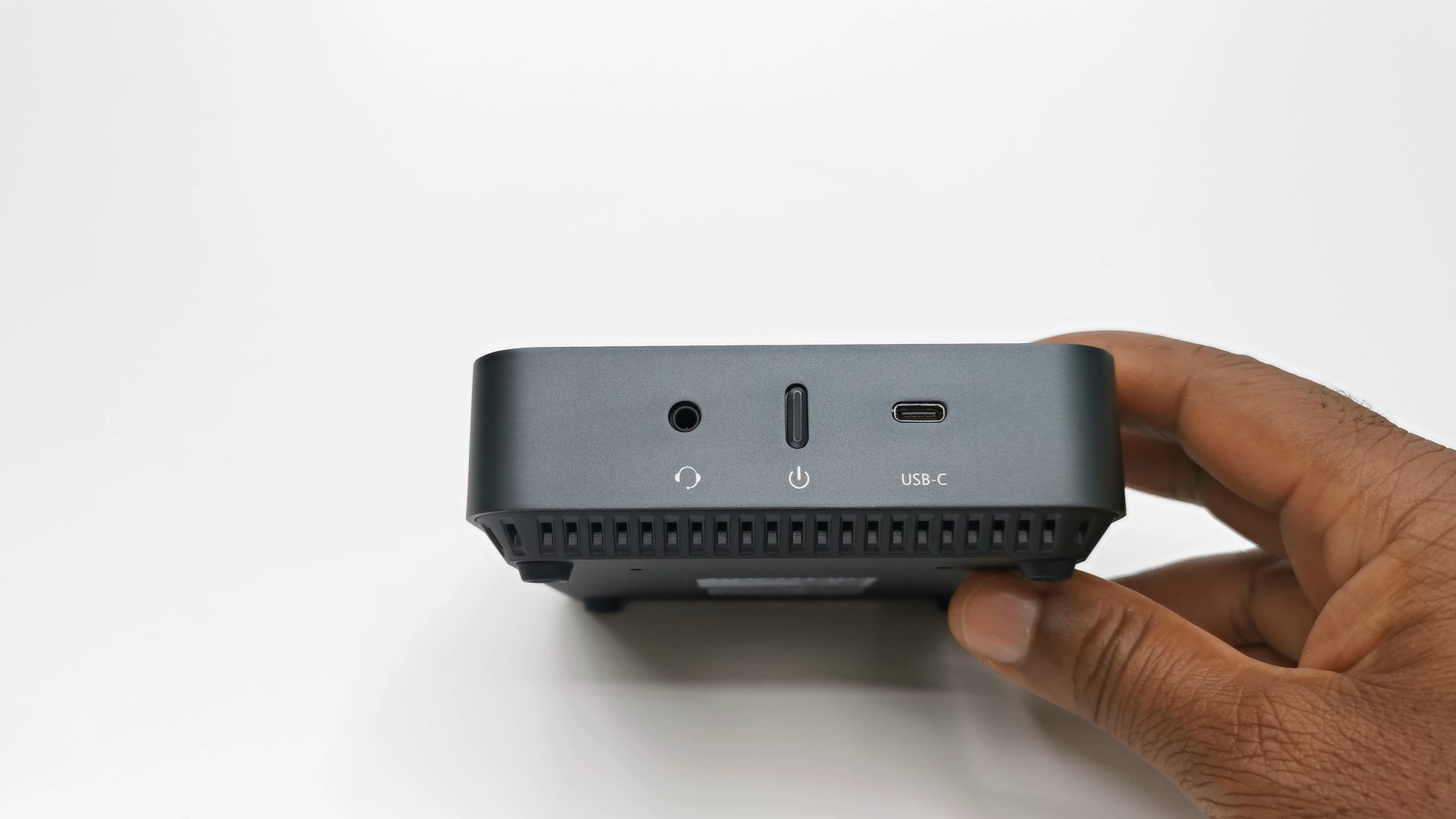

KAMURI AM02 Ryzen Mini PC front

ports

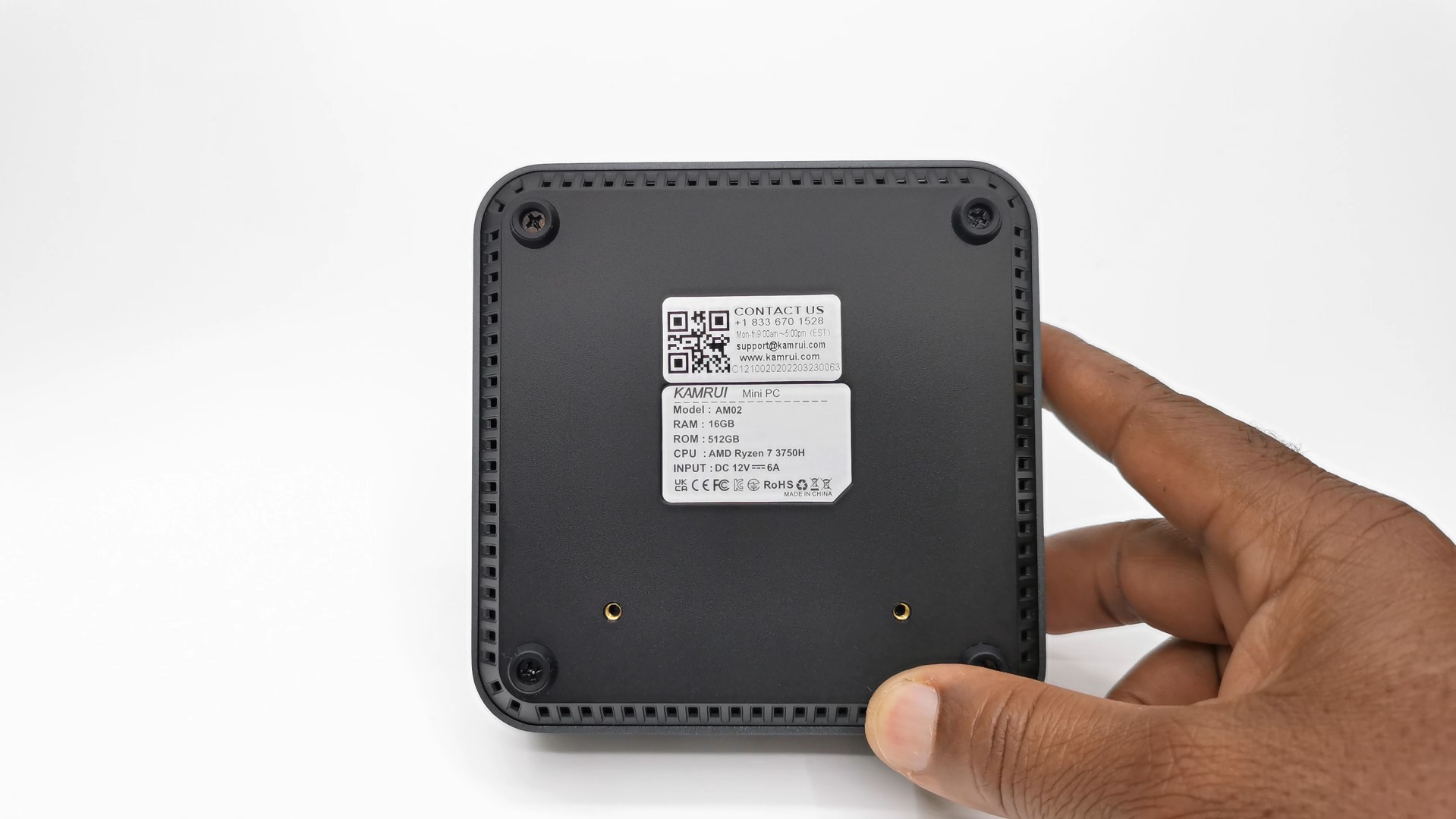

KAMURI AM02 Ryzen Mini PC bottom

panel

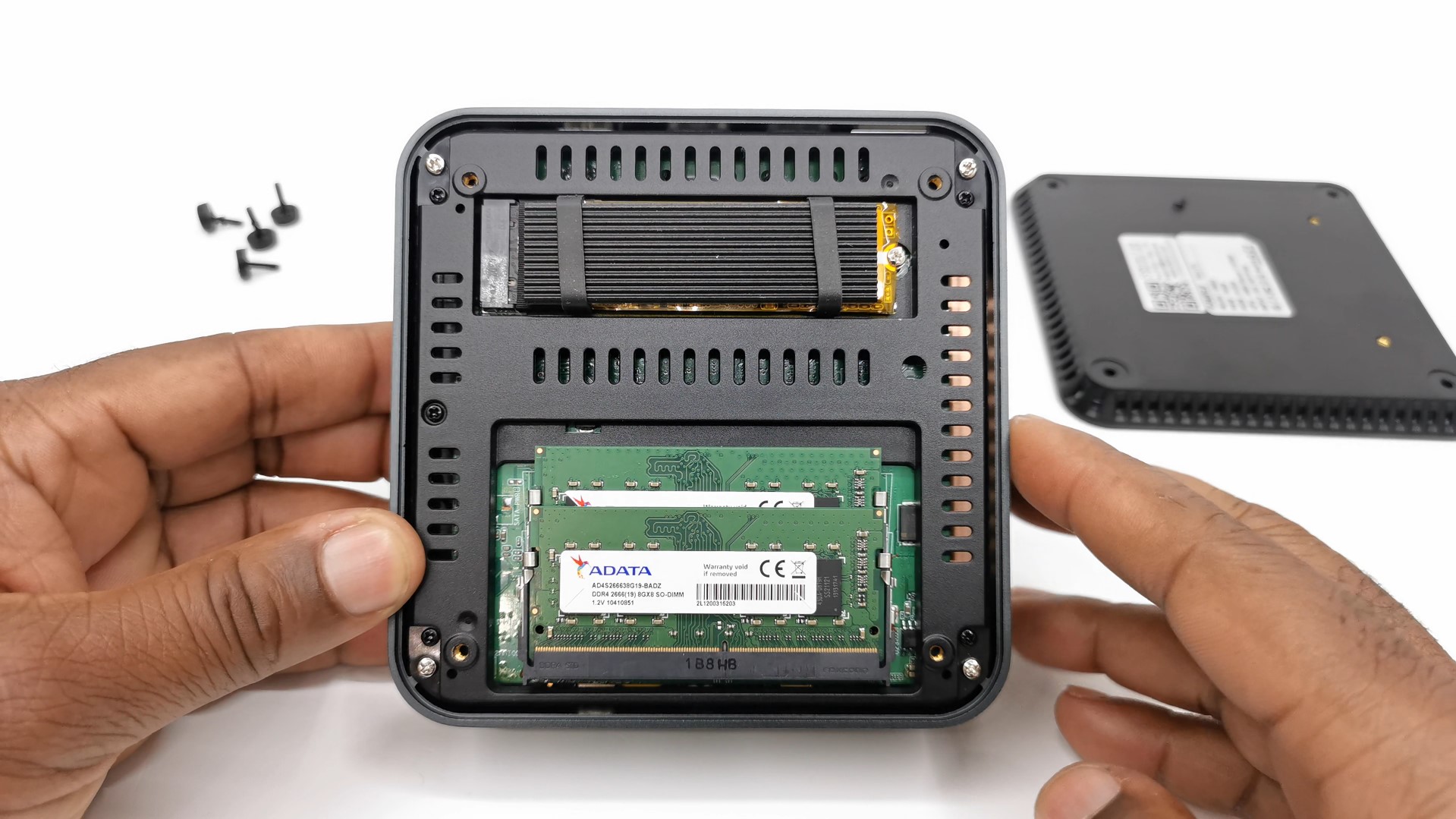

KAMURI AM02 Ryzen Mini PC RAM and

SSD storage

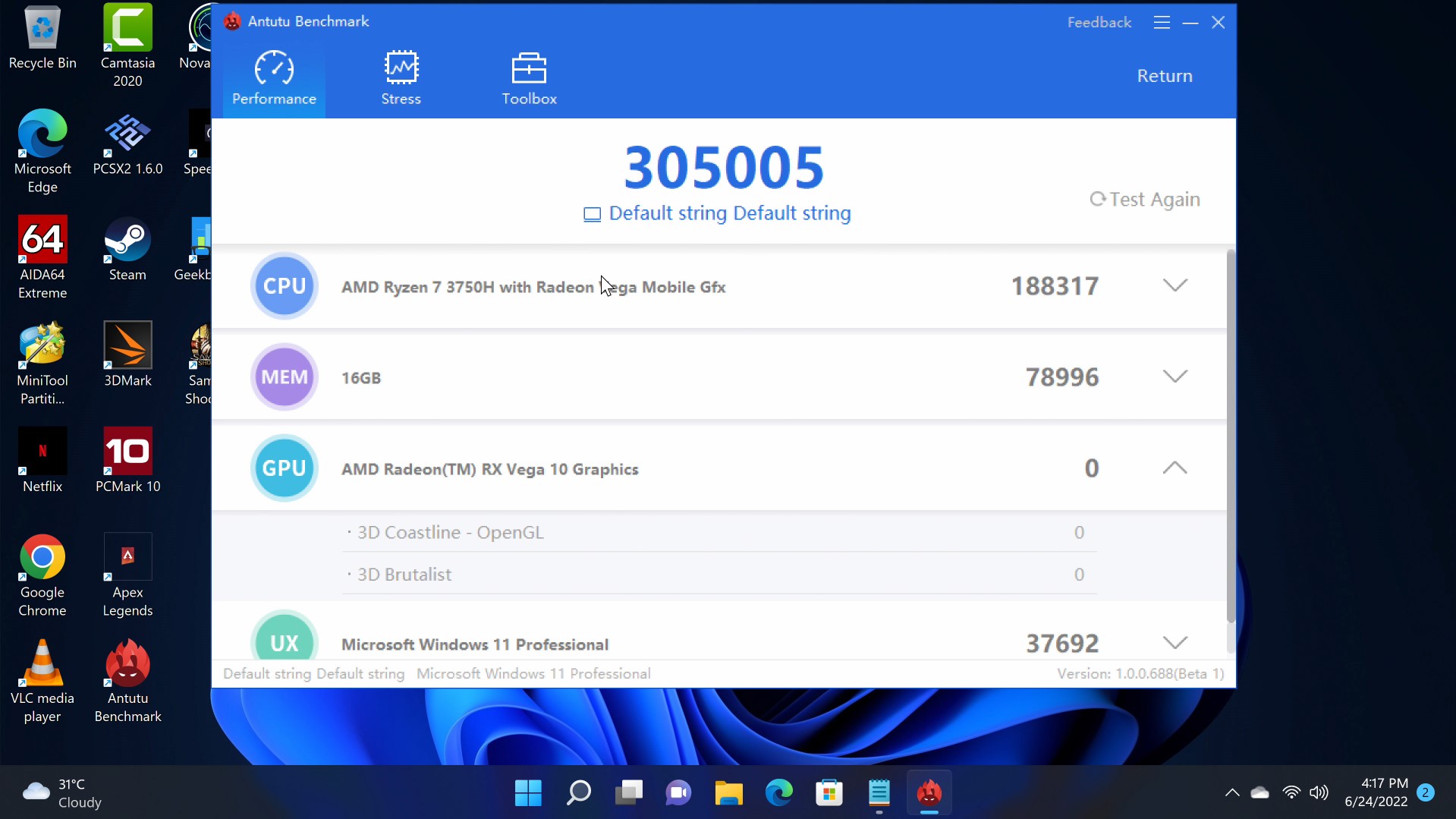

Benchmarks

Antutu – 305,005
PC Mark 10 – 3,947
Geekbench 5 – 839 single-core|3,342 multi-core
Ice storm extreme – 66,109
Cloud gate – 14,334
Time Spy – 1,109
RAM copy speed – 26,403
M.2 Speed – Read 460|Write 498



KAMURI AM02 Ryzen Mini PC Mark 10 benchmark




KAMRUI AM02 unique features

AMD Ryzen 7 CPU/Radeon Vega 10 GPU
16 GB of DDR4 RAM/maximum capacity 64 GB
512 GB M.2 SSD install 2280/up to 2 TB
Windows 11 out of the box and activated
High-performance benchmarks
Netflix in HD/4K with all surround sound audio formats including TrueHD
HDCP 2.2 protection
Video editing can be performed
PC Gaming performance at 1080p is really good
PCSX2 emulation gaming is good
Dual band Wi-Fi and gigabit LAN
Bluetooth works stable
Linux/Ubuntu/FydeOS alternative operating systems can be installed
Internal cooling fan keeps temperatures low

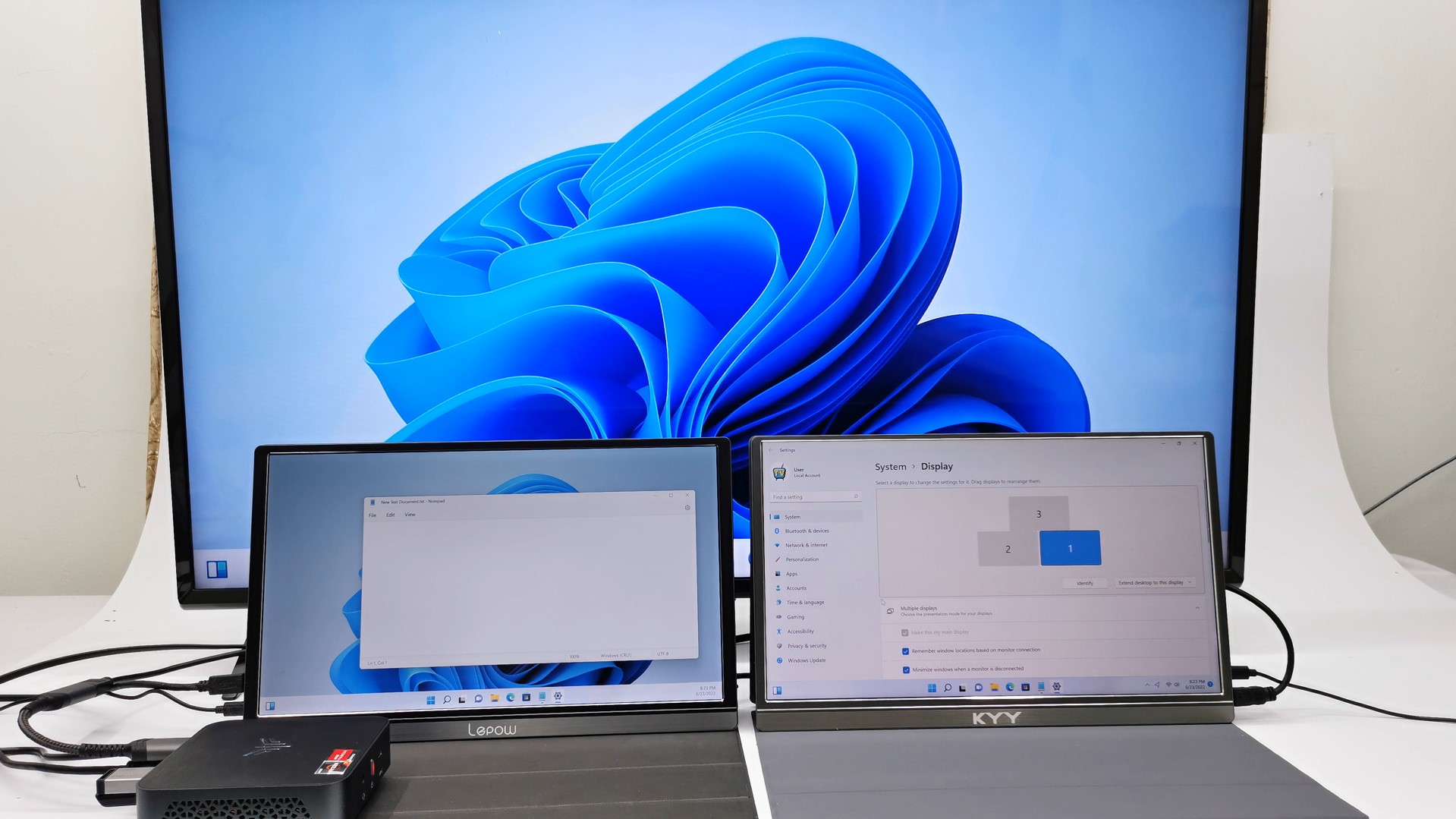

KAMURI AM02 Ryzen Mini PC three way

display

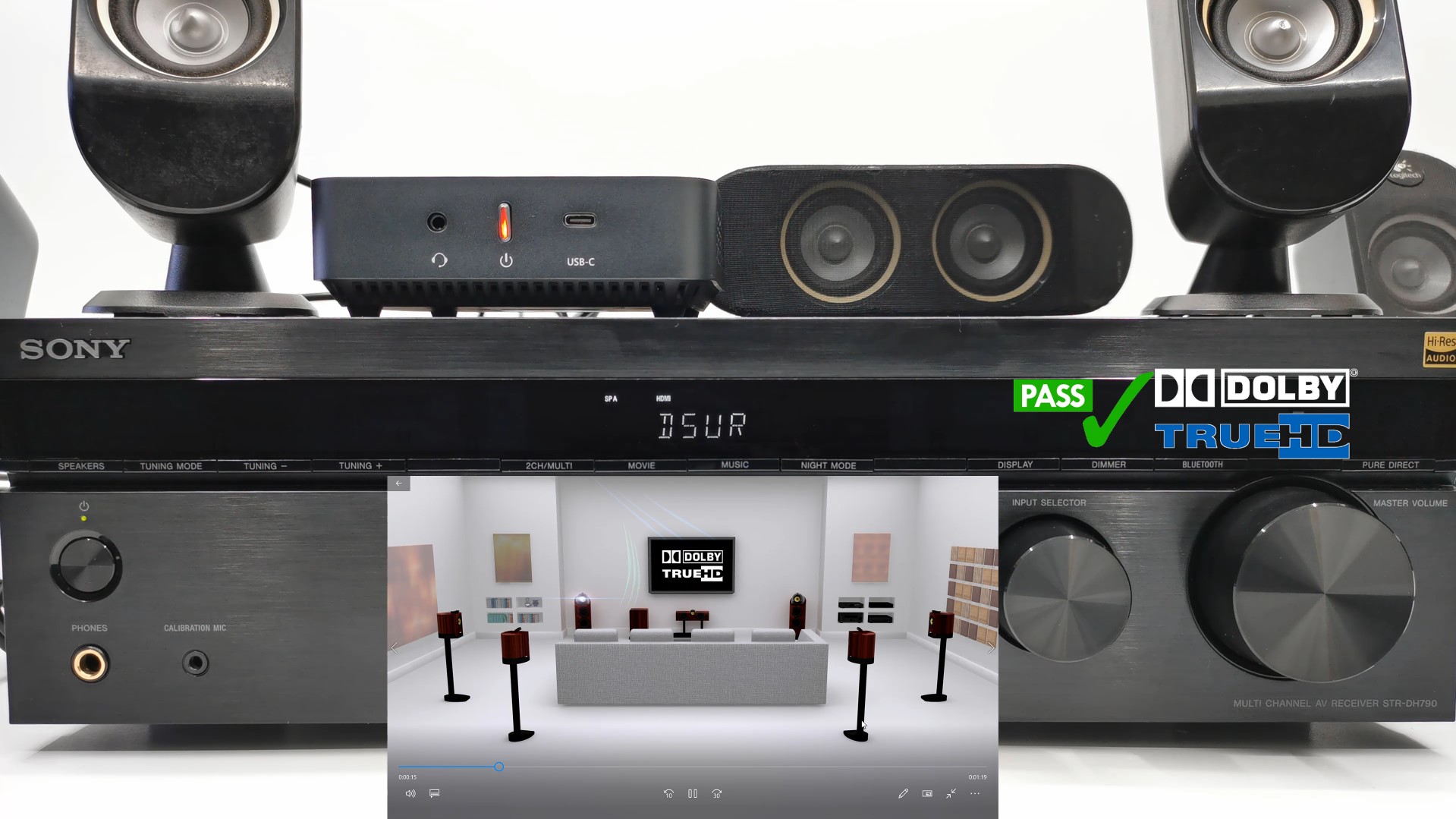

KAMURI AM02 Ryzen Mini PC Dolby

 Dolby Atmos DTS audio Dolby TrueHD

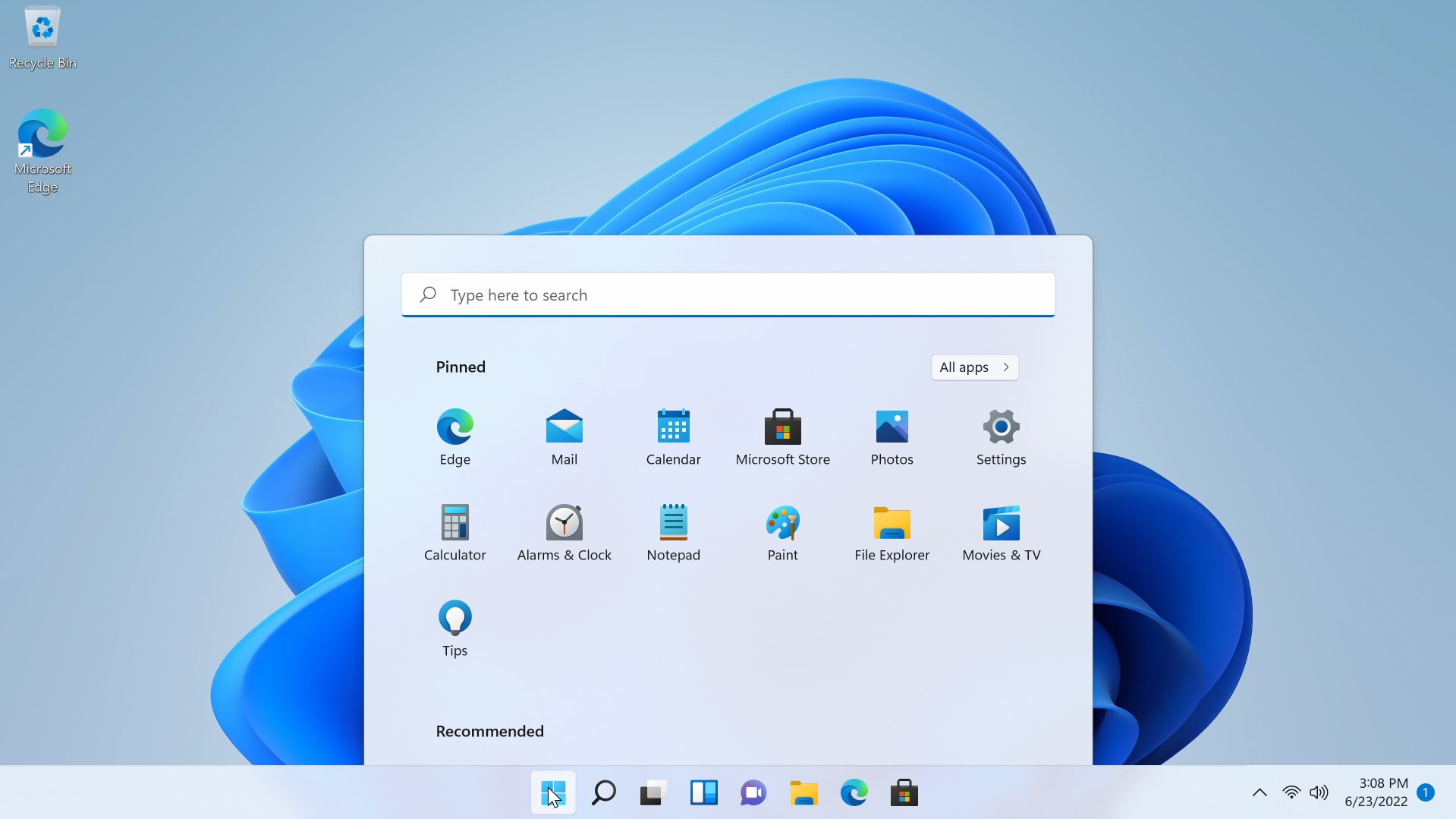

KAMURI AM02 Ryzen Mini PC Windows 11


operating system


Cons

No expandable storage facility
Bios blocks Android x86
Internal cooling fan can get loud at times



KAMURI AM02 Ryzen Mini PC pros and cons



Final thoughts

In terms of its performance as a Windows NUC mini-PC its performance is
outstanding when it comes to performing standard Windows task and more
tedious
ones such as video editing. However it does have its limitations when you
attempt 4K. It’s a gaming performance is also impressive and its
temperature
remains in the 50s with its variable speed internal cooling fan.

The area that was a sore point for me was that it did not include an
additional
M.2 slot, or SATA connection for expandable storage. I was happy that I
could
installed my favorite alternative operating system FydeOS what I would
successful with Android x86 you to Bios restrictions.
